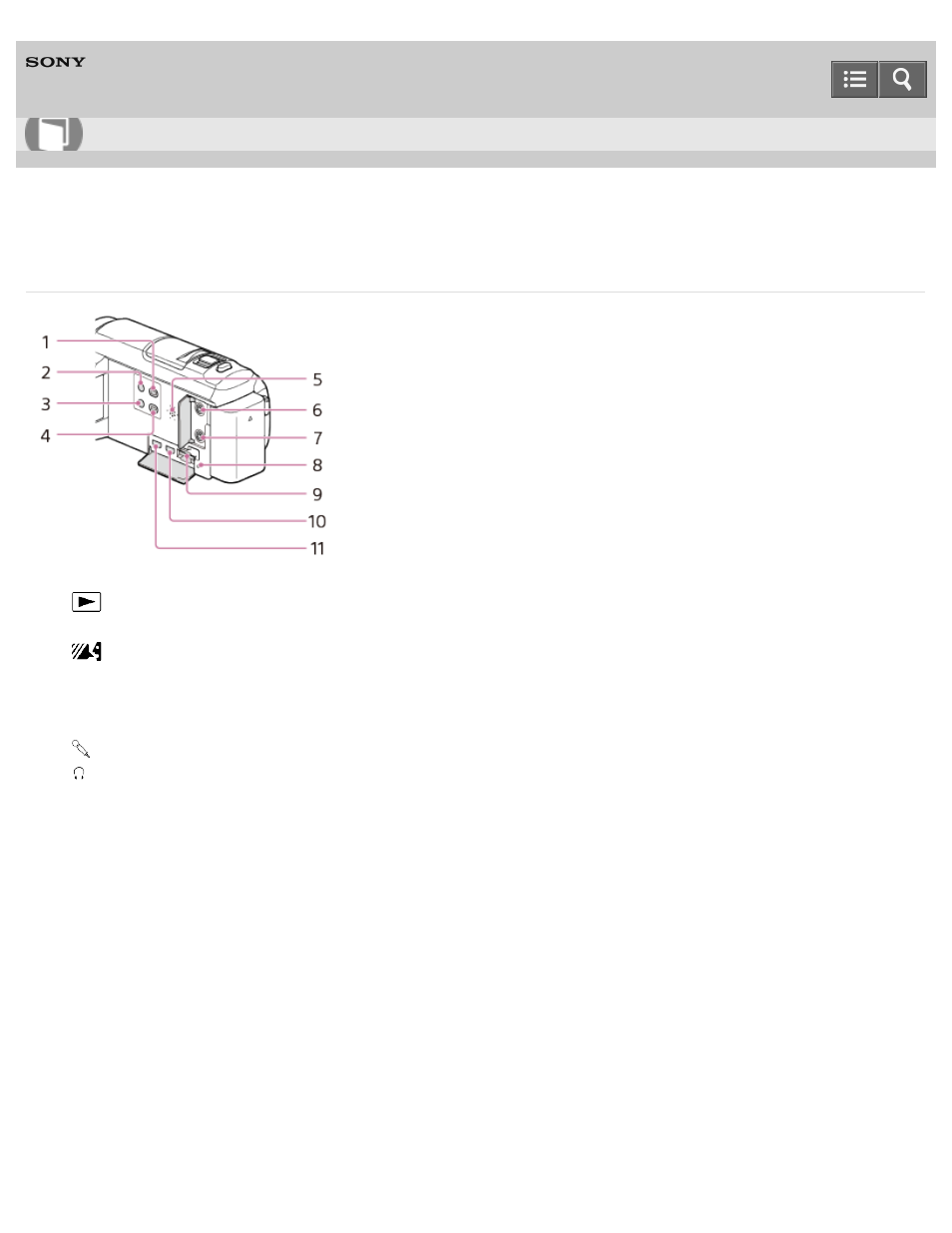

Parts and controls (side)

1.

(View Images) button

2. POWER button
3.

(My Voice Canceling) button

Suppresses the voice of the person recording the movie.

4. PROJECTOR button (HDR-PJ530E/PJ540/PJ540E/PJ610E)
5. Speaker
6.

(microphone) jack (PLUG IN POWER)

7.

(headphones) jack

8. Memory card access lamp

While the lamp is lit or flashing, this product is reading or writing data.

9. Memory card slot

10. HDMI OUT jack
11. PROJECTOR IN jack (HDR-PJ530E/PJ540/PJ540E/PJ610E)
