VGN-SRxx Series Optical Disk Drive
Replacement Instructions
FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST
P/N Rev. X2 2/2

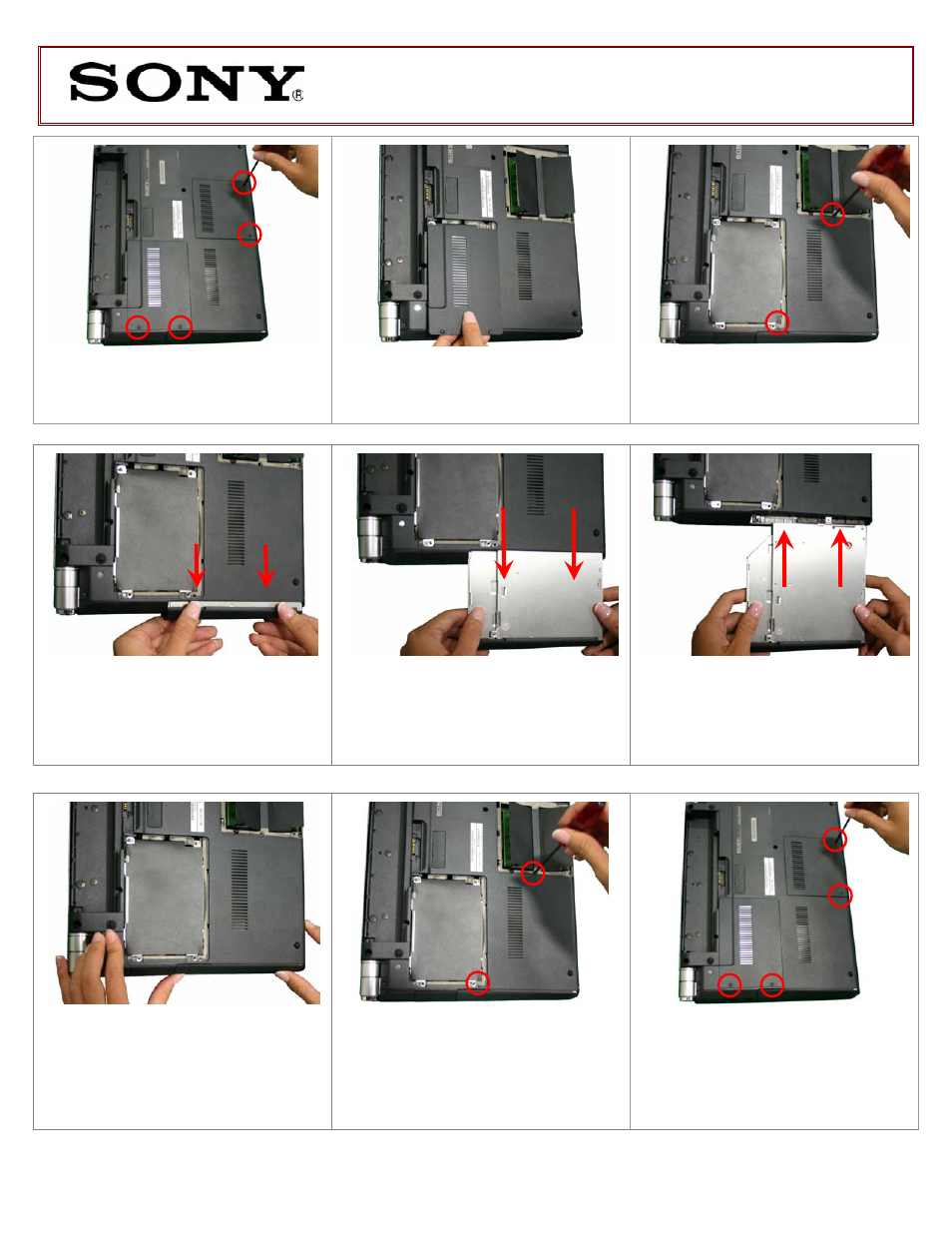

Step 4. Using the magnetic screwdriver,
loosen the four screws securing the Memory
and HDD access covers.
Step 5. Remove the Memory and HDD
access covers. Start by lifting from the side
where the screws held them in place.
Step 6. Remove the two (2) screws shown
in the picture. These are the screws that
secure the ODD in place.
Step 7. To initiate the removal of the ODD
Bay, pull slightly the ODD door as shown in
the picture.
Step 8. With even force, slide out the ODD
as shown. Some force may be required to
unlock the ODD from the connector.
(ODD Reinstallation) Steps 9-12
Step 9. Hold the new ODD Bay by the
edges and align it with the opening.
IMPORTANT! Install the new ODD in the
correct position as shown in picture.
Step 10. Make sure the new ODD Bay is
seated flush on the edge of the computer.
Step 11. Reinstall the two (2) screws
securing the ODD in place.
Step 12. Reinstall the Memory and HDD
access covers.
Reinstall the battery pack. Return the old
ODD to Sony following the included
shipping instructions.
