VPCCW Series Optical Disk Drive
Replacement Instructions
P/N 989200671 Rev. A 3/3

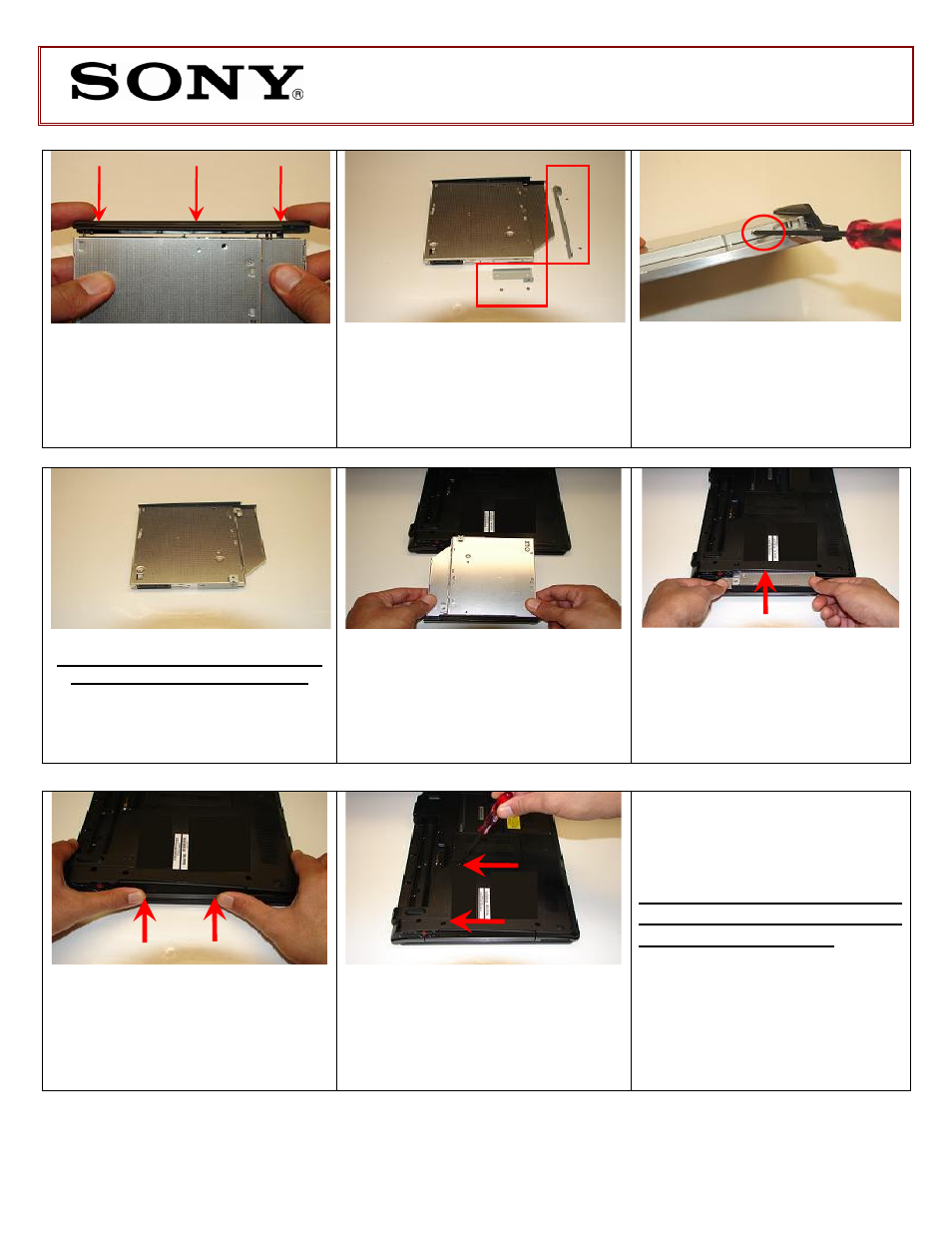

Step 12. Align the tabs on the bezel
with the tab holes located on the ODD.
Firmly but carefully press the bezel into
place.
Step 13. Position the new ODD (Label
side down) and identify the correct
bracket with the correct side it is to be
mounted. Notice the different shapes
for each bracket and the way the
available screw holes should align. Step 14. Firmly but carefully hold the
ODD and begin the re-installation of
the screws & brackets.
(ODD Reinstallation) Steps 7-11
Step 15. To install the new drive, hold
the optical drive by the edges and align
it with the bay opening. Step 16. Carefully slide the optical
drive into the bay and back into place.
Note! Flat surface of bracket should
sit flush with silver side of ODD.
Step 18. Re-install the (2) previously
removed screws.
Step 19. Reinstall the battery pack
and AC Adaptor.
Return the old ODD to Sony
following
the included
shipping instructions.
Step 17. To ensure proper assembly
and connection, with even force push
the ODD back into place.
(Optical drive should be sitting flush
with the edge of the computer)
