8
-EN
Preparing

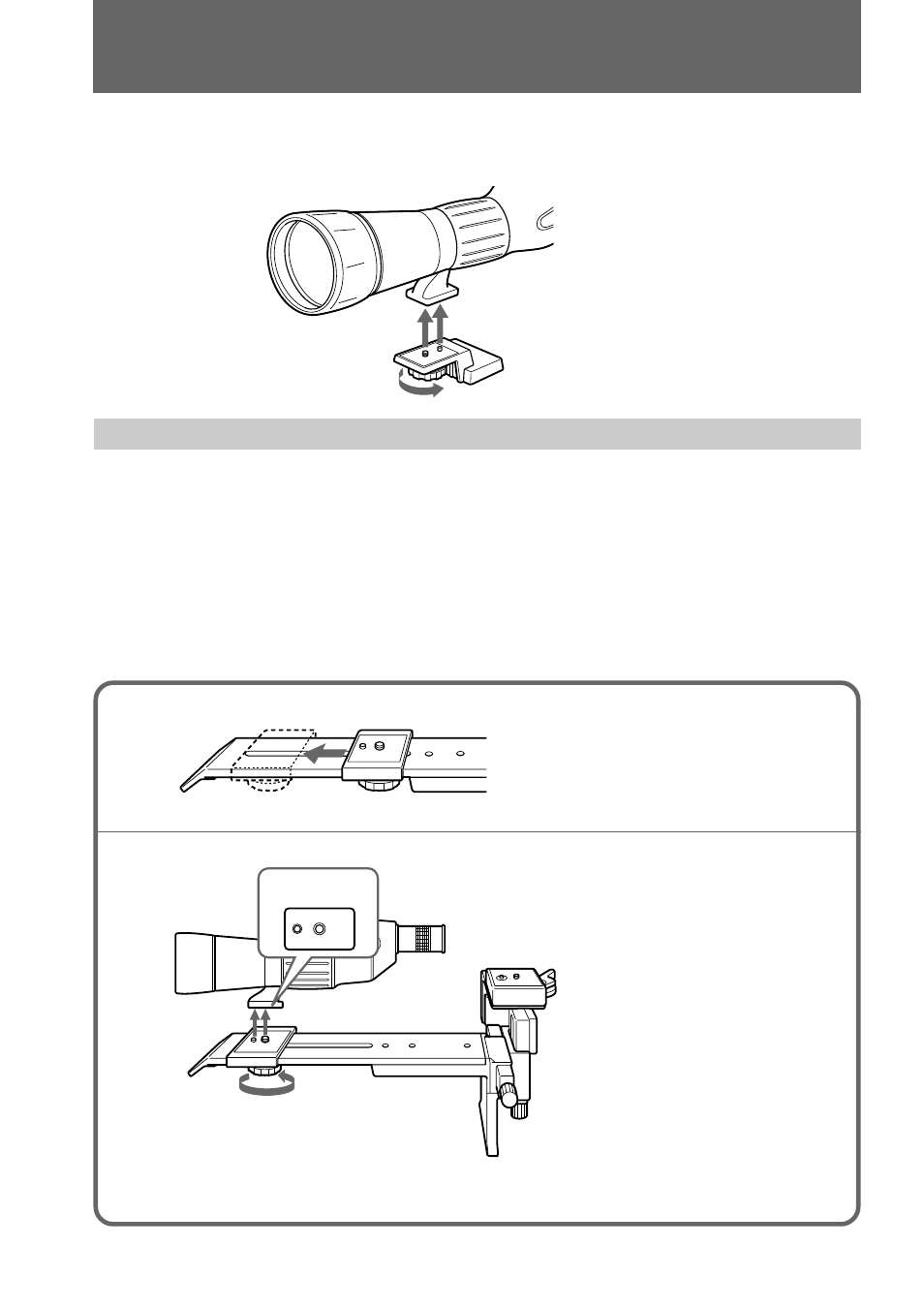

5 Attaching the telescope to the pedestal
Make sure that the eyepiece for recording is attached to the telescope.
When a telescope plate is attached, you can attach the telescope to the pedestal in the
same way.
(1) Move the telescope mounting plate to the tip of the pedestal.
(2) Attach the telescope to the telescope mounting plate.
Insert the projections on the telescope mounting plate into the pedestal
attachment holes (1 ) and tighten the telescope mounting screw loosely (2 ).
1
2
Attach the telescope to the telescope plate.
Insert the projections on the telescope plate into the pedestal attachment holes (1), and
tighten the telescope plate screw (2).
1
2
1
2
