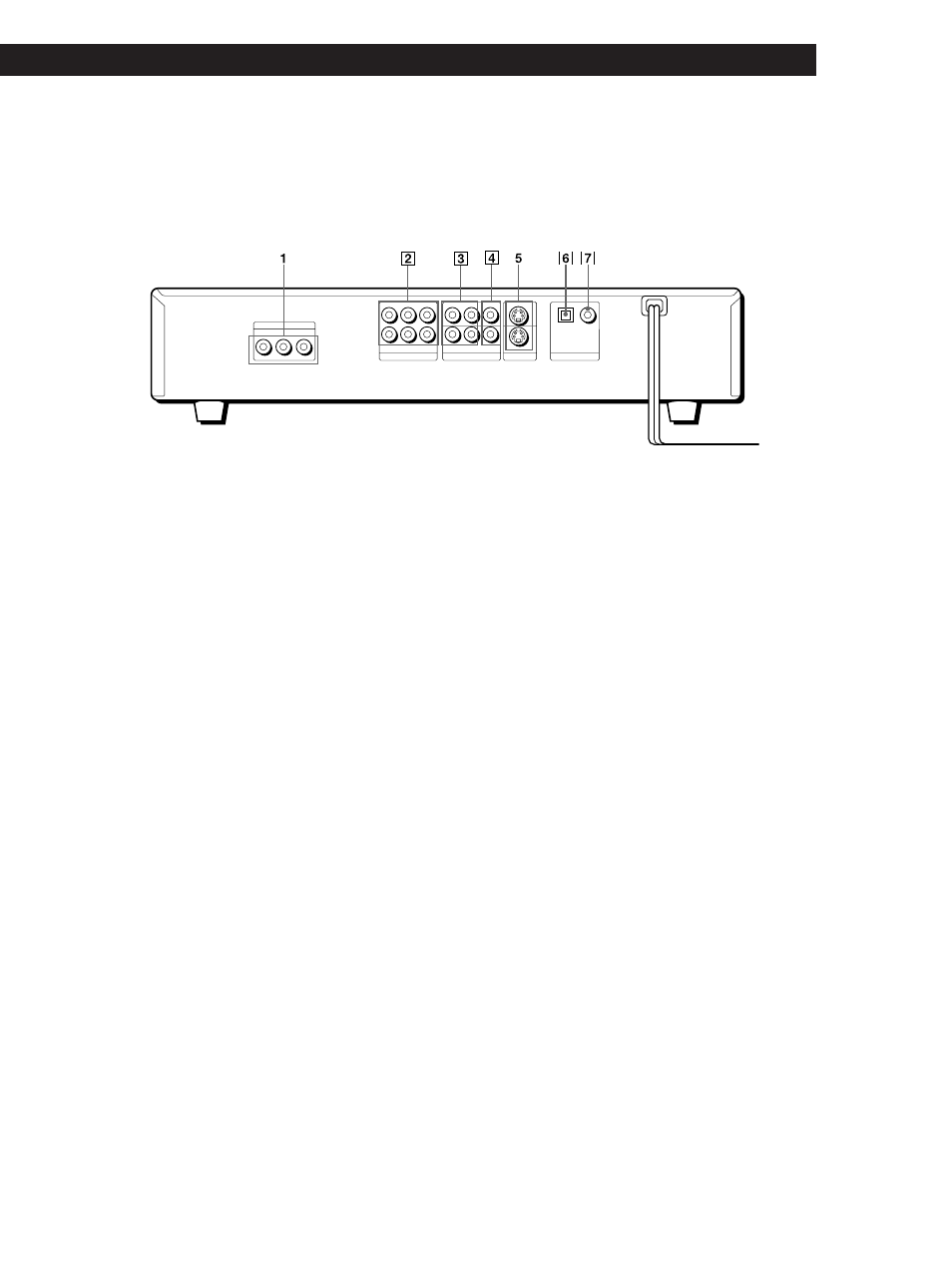

Rear Panel
1 COMPONENT VIDEO OUT connectors (7)
Connects to the monitor or projector with component
video input connectors (Y, C
B /B-Y, C R /R-Y) that conform
to output signals from the player.
2 5.1 OUTPUT connectors (37)
Connects to the amplifier with 5.1 channel input
connectors.
3 LINE OUT (AUDIO 1, 2) connectors (7)
Connects to the audio input connector on the TV or
amplifier.
4 LINE OUT (VIDEO 1, 2) connectors (7)
Connects to the video input connector on the TV or
monitor.
5 S VIDEO OUT (1, 2) connectors (7)
Connects to the S video input connector on the TV or
VCR.
6 DIGITAL OUT (OPTICAL) connector (8)
Connects to an audio component using the optical digital
connecting cord.
7 DIGITAL OUT (COAXIAL) connector (8)
Connects to an audio component using the coaxial digital
connecting cord.
