Apple BookG4 Computer User Manual
Page 88
88
Chapter 5
Make sure to slide the card all the way in until you feel that the card is securely attached to
the connector.
5

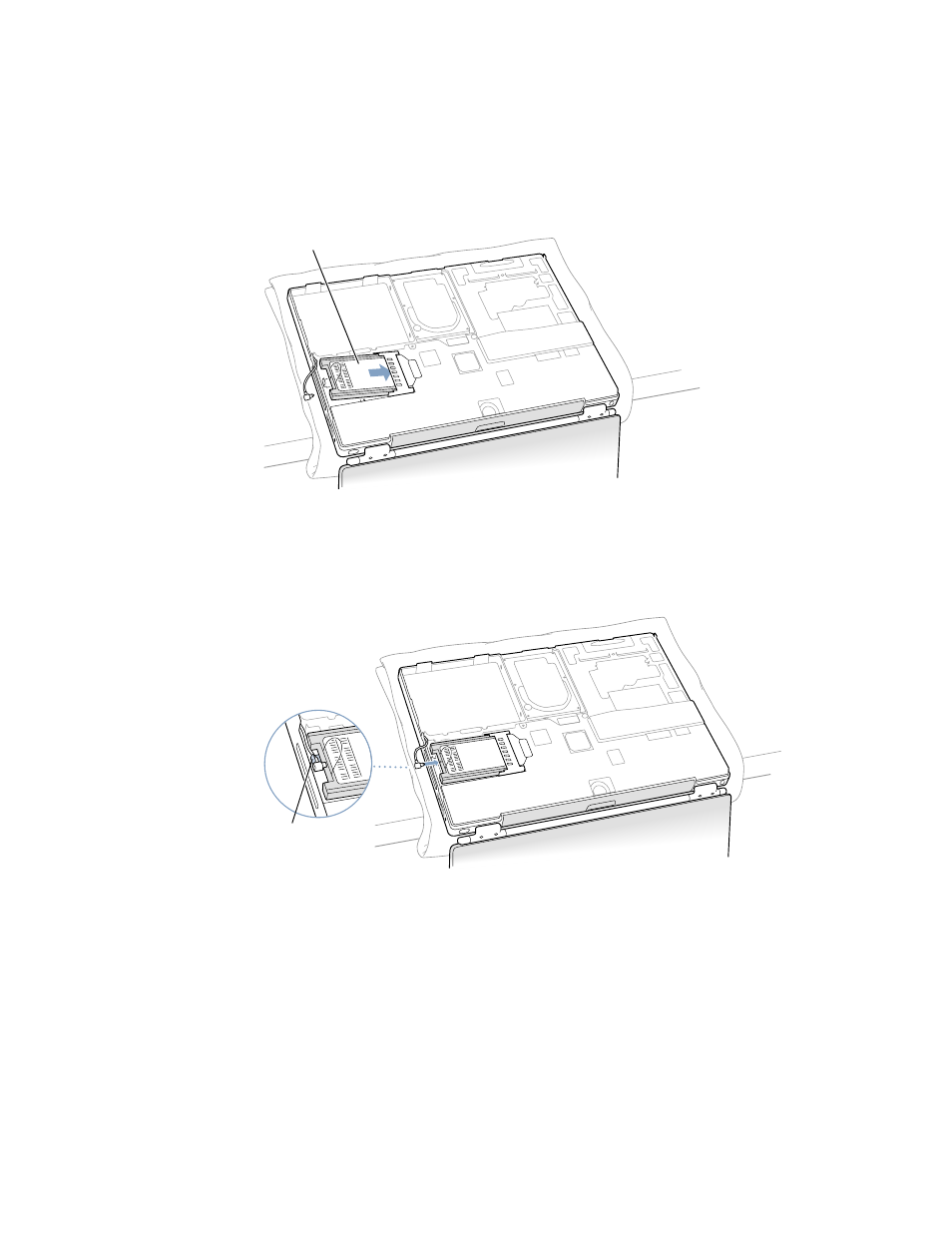

Connect the AirPort Card to the end of the antenna cable.
Make sure that the connector on the end of the antenna cable is straight before inserting it
into the card. When it is connected, make sure the end of the antenna cable is secured by the
small clip shown in the illustration below.
6
Fold the plastic tab on the AirPort Card over the top of the card.
Attach the bottom case to the computer. Follow the instructions in the previous section,
“Removing the Internal Hard Disk,” beginning on page 85.
AirPort Card
Antenna clip
Important
The plastic tab must be folded over the card. If the tab is not folded over, you
will not be able to securely attach the bottom case to the computer.
