Replacing the hard disk and bottom case – Apple BookG4 Computer User Manual
Page 82
82
Chapter 5
Replacing the Hard Disk and Bottom Case
Follow the steps in this section to replace the hard disk.
1
Remove the screw from the top of the hard disk mounting bracket.
2

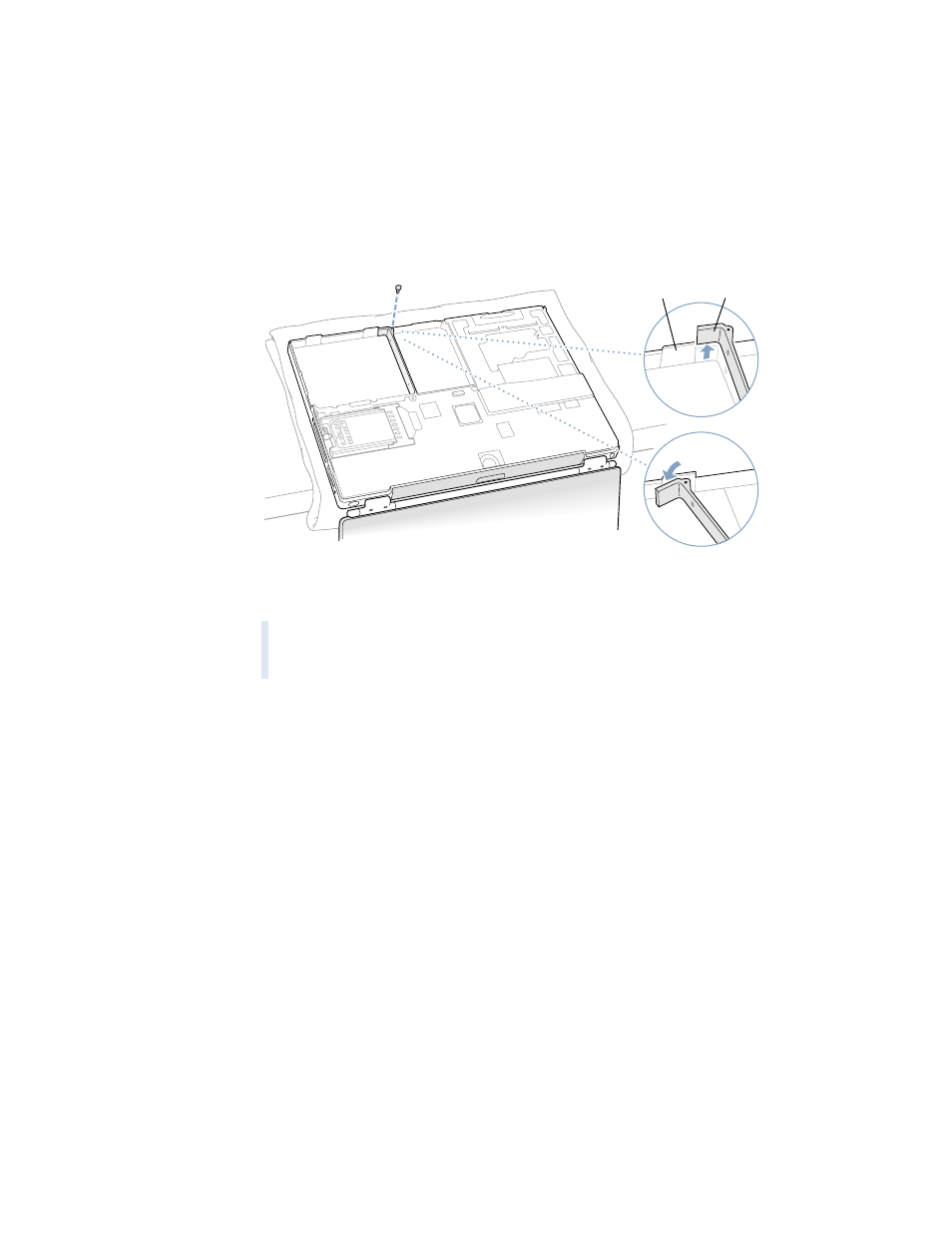

Lift the mounting bracket up and gently bend it around the first battery bay tab. The tab
holds the bracket out of the way.
Mounting
bracket
Battery
bay tab
Screw
Warning
Lift the bracket just high enough to clear the battery bay tab. If you lift the
bracket higher than the tab you risk damaging the bracket, and such damage is not
covered by the limited warranty on your computer.
