GB 20
Connecting the Projector
• Set the aspect ratio using “Wide Mode” in the INPUT SETTING menu according to
the input signal.
• When you connect the unit to 15k RGB or component video equipment, select video
GBR or component with the “Input-A Signal Sel.” setting in the SET SETTING
menu.
• Use the composite sync signal when you input the external sync signal from 15k
RGB/component equipment.
This section describes how to connect the projector to a monitor equipment.
For more information, refer to the instruction manuals of the equipment you
are connecting.
Notes

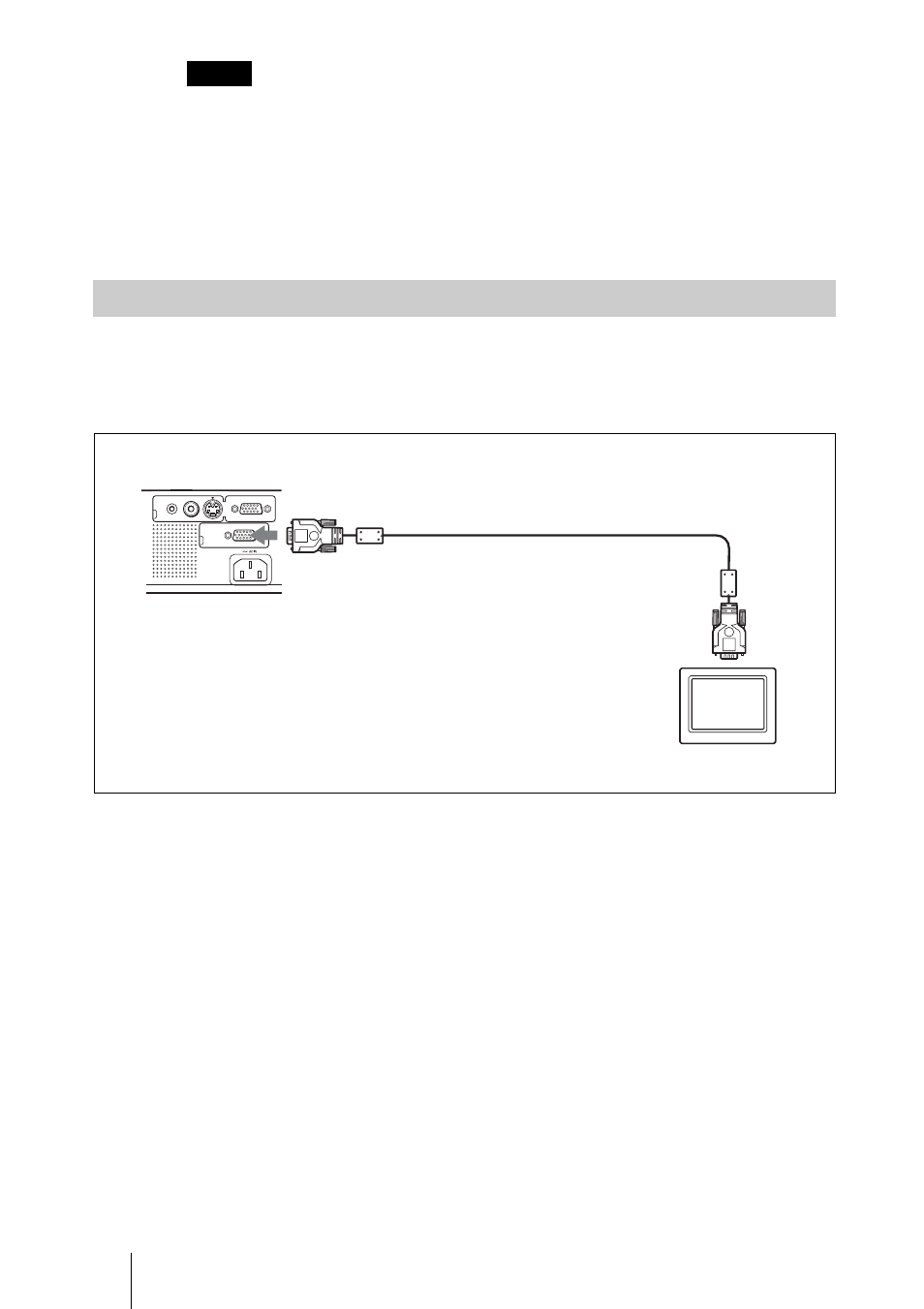

Connecting with a Monitor Equipment
AUDIO INPUT A S VIDEO VIDEO
MONITOR OUT
Left side
Monitor cable (not supplied)
HD D-sub 15-pin (male)
↔
HD D-sub 15-pin (male)
to monitor
input
Monitor equipment
