FPC 8059 User’s Manual
12 Hardware Installation
2.4 Ethernet
The FPC 8059 provides an NE2000 compatible Ethernet (RJ-45)
interface. For network connection, just plug in one cable end of the
FPC 8059 10/100 Base-T Hub into the standard RJ-45 connector.

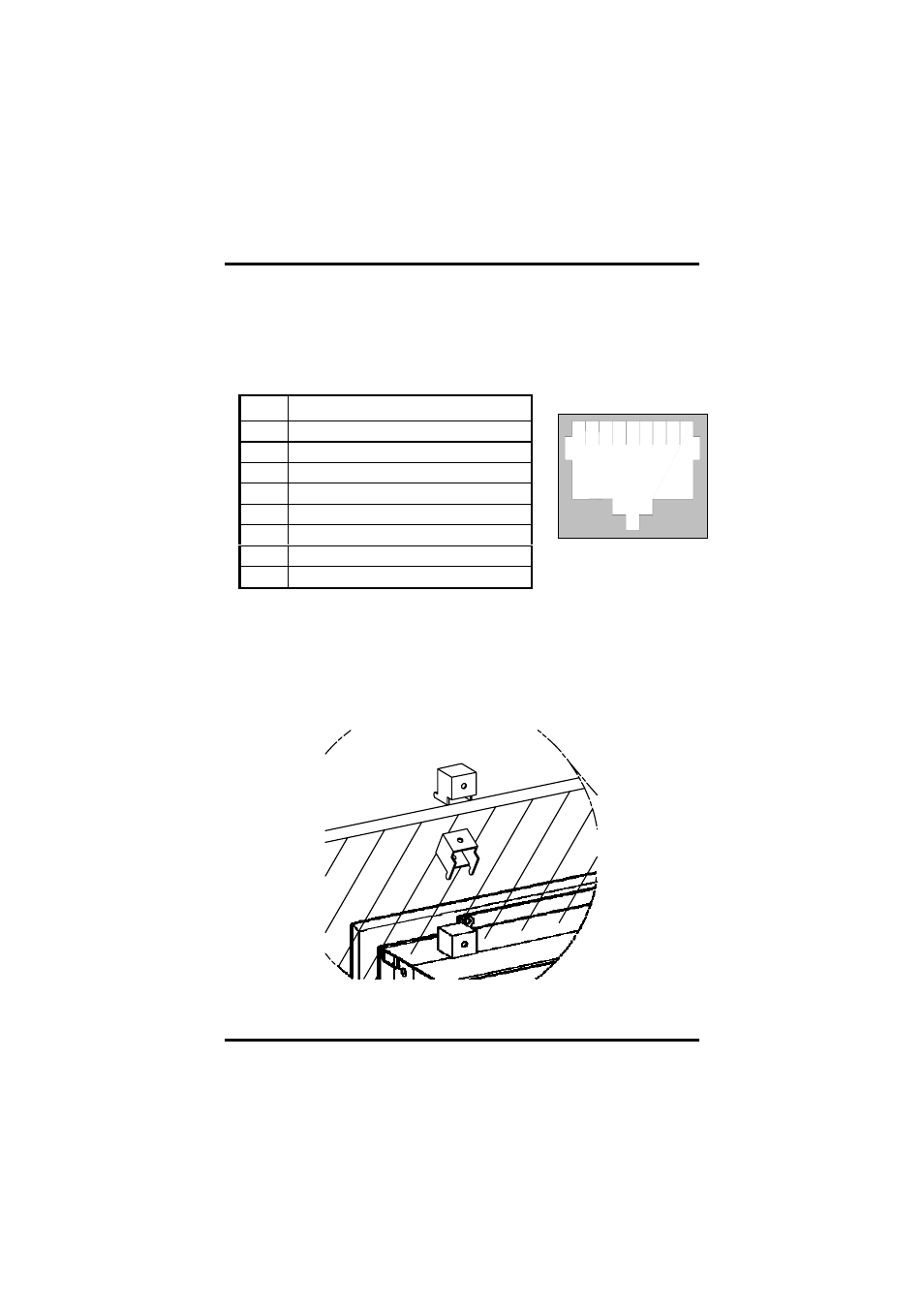

The pin assignment of the RJ-45 is listed below;
Pin Signal
TX+ (Data transmission positive 1
TX- (Data transmission negative) 2 1 2 3 4 5 6 7 8
Rx+(Data reception positive) 3
RJ45 termination 4
RJ45 termination 5
Rx- (Data reception negative) 6
RJ45 termination 7 RJ-45
RJ45 termination 8
2.5 Mounting Way : Panel mount
The FPC 8059 is designed for panel mount application. To mount
the FPC 8059, the standard set of mounting kit (included in the
system packaging) is needed.
