SlimSCSI 1450 Adapter User’s Guide
Installing the SlimSCSI 1450
Follow these steps to install the SlimSCSI 1450 and connect your
SCSI devices to it:
1
Remove the SlimSCSI 1450 from its packaging.
2
Plug the 50-pin connector into the first (or only) SCSI device, as
shown below. Make sure the SCSI device is not powered.
If the SCSI device has a DB25 (25-pin) connector, attach the
50-pin-to-DB25 converter, as shown below, and plug it into the
connector on the device.

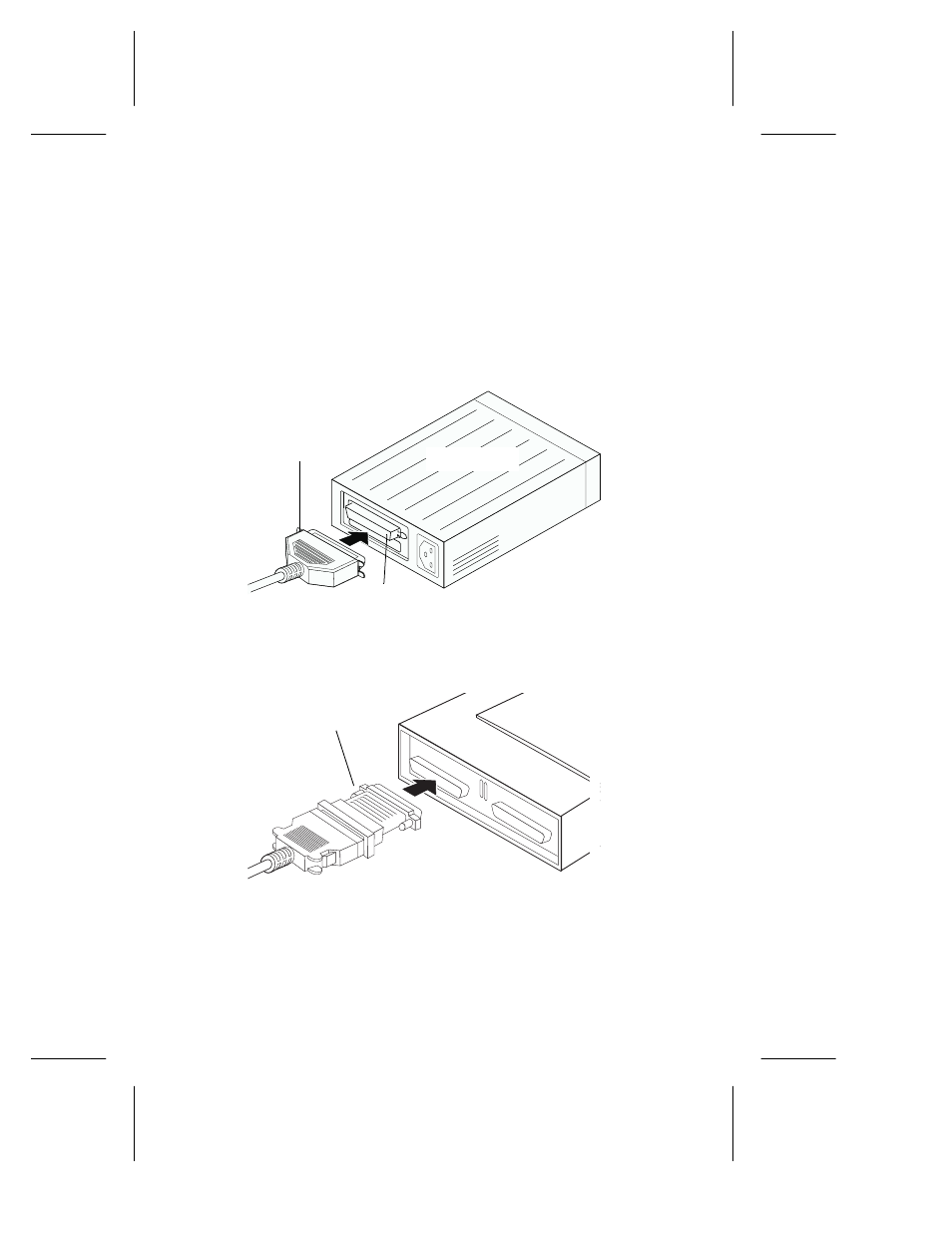

SCSI Connector
SCSI Device
Terminator
50-pin-to-25-pin
Converter
