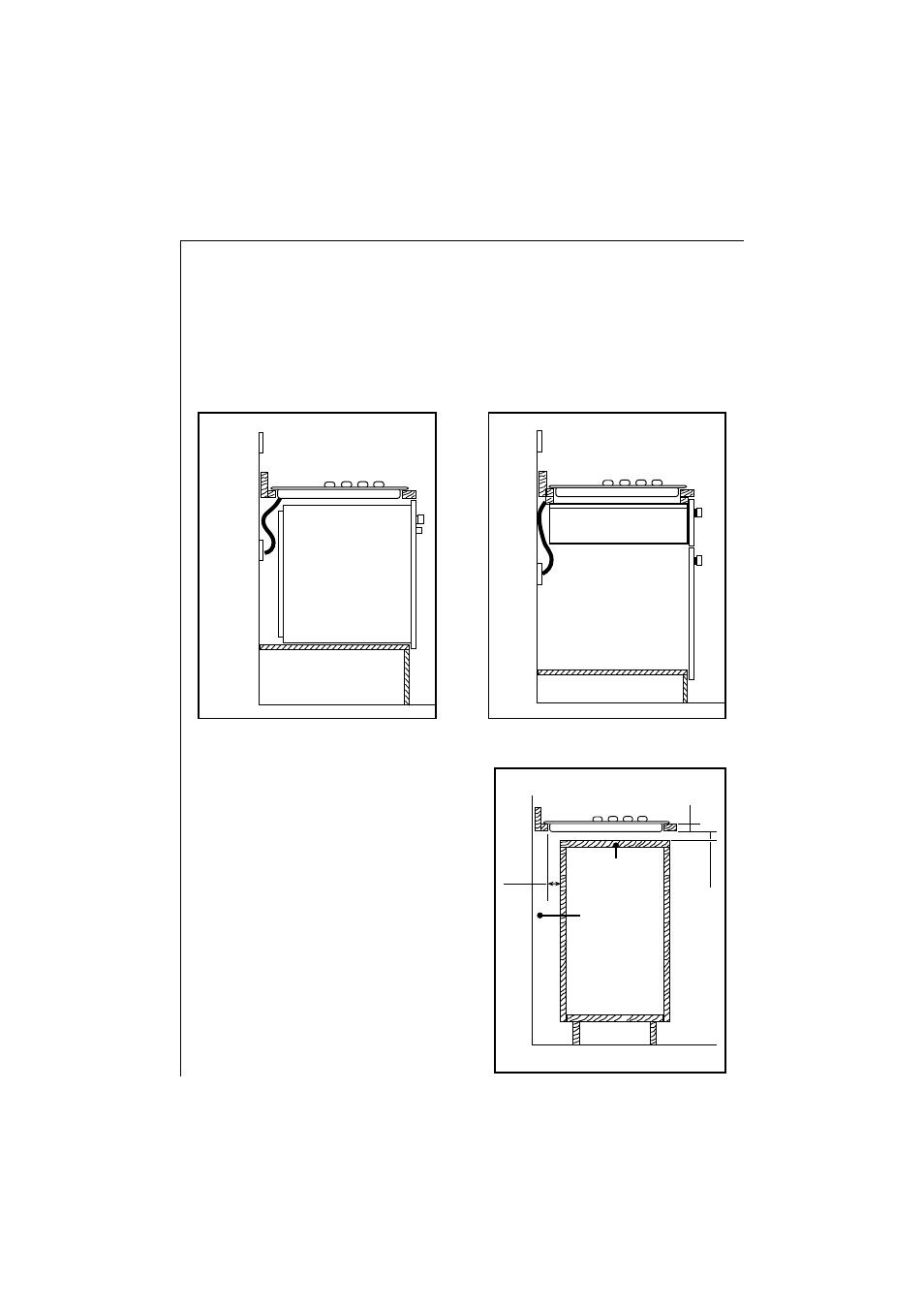

Building over a kitchen unit with door
Proper arrangements must be
taken in designing the furniture
unit, in order to avoid any contact
with the bottom of the hob which
can be heated when it is operated.
The recommended solution is
shown in diagram 3.
The panel fitted under the hob
("a") should be easily removable
to allow easy access if technical
assistance is needed. The space
behind the kitchen unit ("b") can
be used for connections.
Building over a cupboard or drawer
If the hob is to be installed above a cupboard or drawer it will be
necessary to fit a heat resistant board below the base of the hob on
the underside of the work surface.
It is also recommended to carry out the electrical connection to the
hob as shown in diagrams 1 and 2.
30
20 min 60
a
b
FO 1013
3
