6 English
 For more detailed information on
how to assemble this pressure
washer, please visit
www.karcherresidential.com/as-
sembly
A Philips Screwdriver, medium
size (not supplied)
for final assembly
Mount loose parts delivered with appli-
ance prior to start-up.

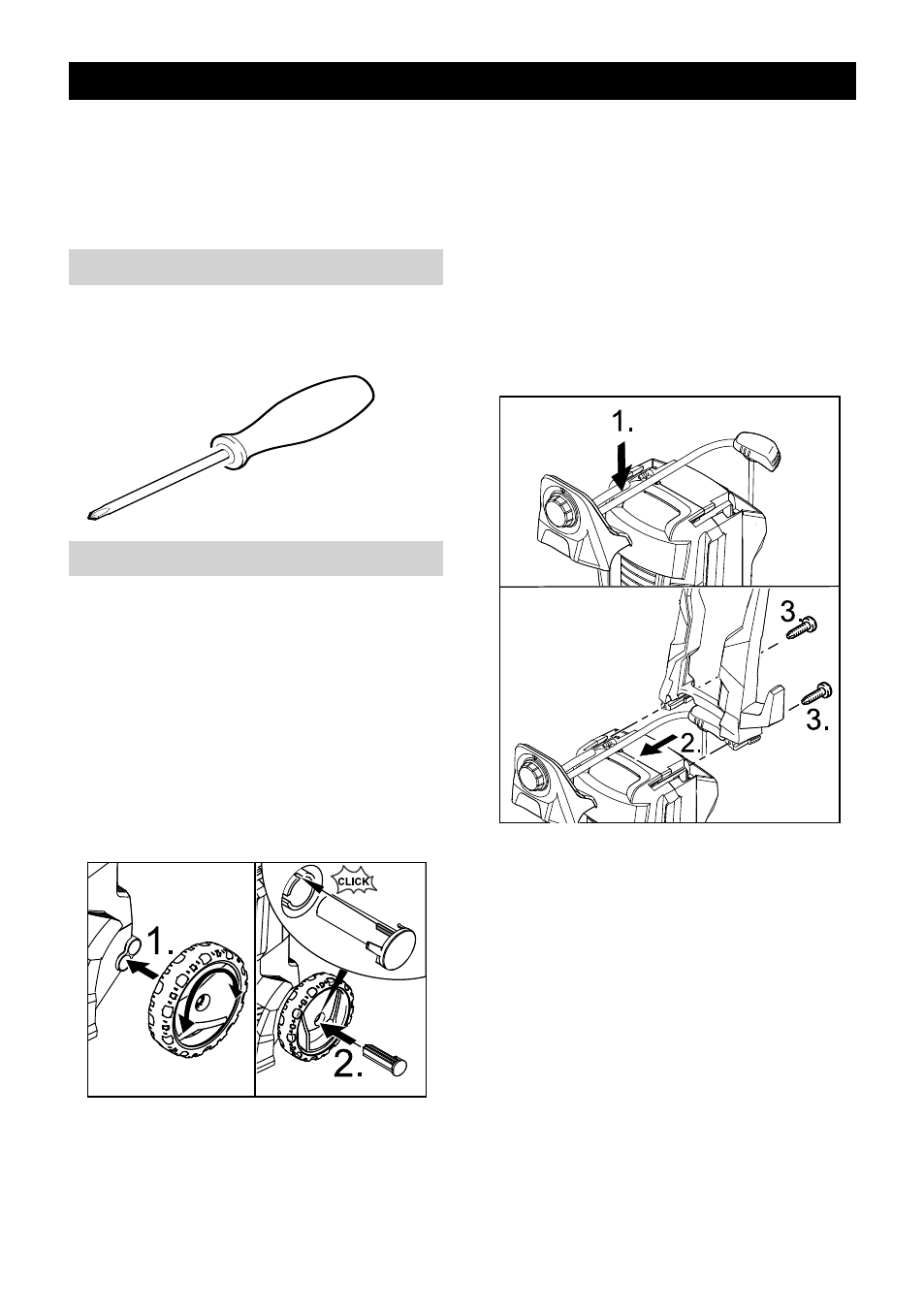

 STEP 1:
Insert the wheel into the body, rotat-
ing the wheel as you push it into
place. You should hear a click when
the wheel is completely inserted.
Secure with the enclosed plug,
watch for positioning of plug..
Before assembling the handle you
need to place the tubes of the deter-
gent regulator between handle and
machine body.
 STEP 2:
Attach detergent hose to the fitting,
as indicated below.
Slide the transport handle into the
guide and secure it with 2 screws.
ASSEMBLY INSTRUCTIONS
Required tools
Assembly
Install wheels
Install the transport handle
