English
7

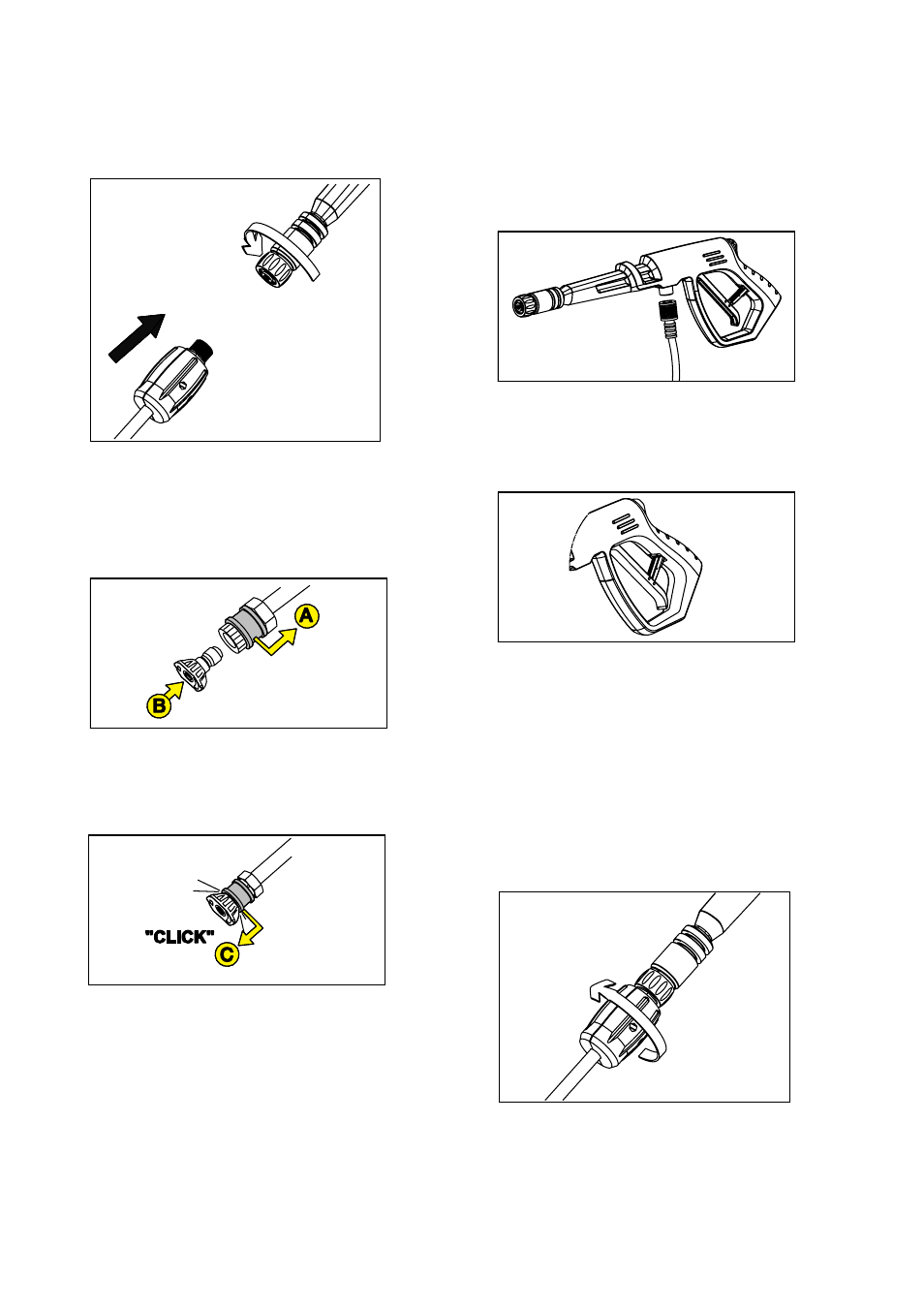

Î STEP 7:
Attach the wand to the trigger gun.
(or remote pressure control for
1.194-801.0)
Î STEP 8:
Pull the spring-loaded collar of the
wand back to insert your choice of
quick connect nozzle.
Î STEP 9:
Release the collar and push the noz-
zle until the collar clicks.
ƽ WARNING
High pressure in nozzle area.
Risk of injury caused by improperly
locked nozzle.
„ Make sure you hear a ‘click’ when in-
serting the nozzle tip into the wand.
„ Pull the nozzle to make sure it is
seated properly before operating
your unit.
Î STEP 10:
Attach the high pressure hose to the
trigger gun.
Î STEP 11:
Lock the safety lock.
Î STEP 12:
Adjust working pressure and water
volume by turning the Remot Pres-
sure Control either direction.
Always return the control to the high-
est setting before shutting the pres-
sure washer off.
(For model 1.194-801.0 only)
