GALACTIC STAR

Thank you for purchasing this American DJ® product. Please read the Owners

manual before installing or using your new unit.

Owners Manual

VISIBLE LASER RADIATION

AVOID DIRECT EYE EXPOSURE

LASER DIODE
WAVELENGTH : 635-650 nm
MAX. OUTPUT : < 5 mW
CLASS llla LASER PRODUCT

DANGER

CHDR Warning Label

AVOID EXPOSURE

Laser light is emitted

from this aperture

Aperture Label

Certification Label

“DANGER

- Laser radiation when

open. AVOID DIRECT EYE EXPO-
SURE.” For Class llla accessible laser
radiation with an irradiance greater

than 2.5 x 10

-3

Wcm

-2

Non Interlocking Housing Label

9. Reverse - Forward selection

10.Non Interlocking Housing Label
11.Connection for interlink cable
12.CHDR Warning Label
13.Aperture Label
14.Projection Aperture
15.Reflector Mirrors

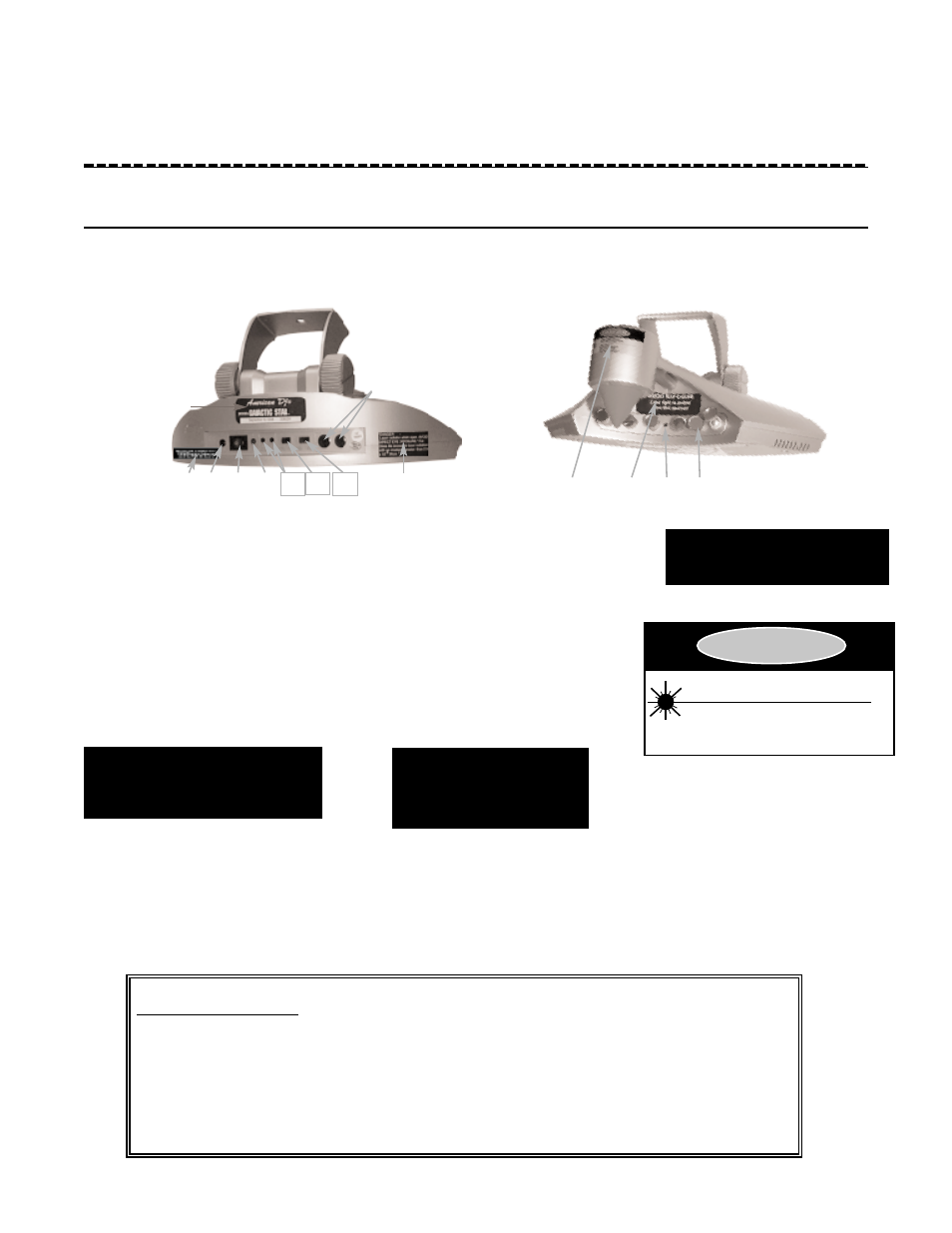

1. Identification Label
2. Certification Label
3. Mini plug External Power supply
4. Power Switch
5. Shutter Control Switch
6. Emmision Indicator LED
7. Speed Controls
8. Mode Select

6

4,5

3

1

2

7

10

11

12

13

8

9

14 15

Caution!

No user serviceable parts inside do not attempt repairs. In the event your unit should fail, contact your

American DJ®

dealer

.

This Laser product complies with the CDRH/BRH Radiation Performance Standards. 21 CFR Subchapter J.

WARNING!

This Product must not be used for audience scanning. To prevent fire or shock hazard, do not

expose this product to a high temperature or high humidity area.

SPECIFICATIONS: Diode: 5 mW, Weight 3 lbs., Dimensions: 13.5” x 4.5” x 10”

Supply Voltage:9VDC With supplied AC 120V adapter. If an AC 240V adapter is

used it must be 500ma min.

Beam Spread on GALACTIC STAR ™:

The maximum adjustment of the mirrors is approximately 90˚

WARNING: Never Look Directly INTO Laser Beam

CAUTION: Use of controls, adjustments, or procedures

other than those specified herein may result in hazardous

radiation exposure.

This Laser product complies with the

CDRH/BRH radiation performance

standards. 21 CFR Subchapter J.
