– 2
1 Electrodes
2 Suction hose
3 Cable hook
4 Air outlet, working air
5 Suction head lock
6 Wheel
7 Air inlet, motor cooling air
8 Suction head
9 Steering roller
10 Steering roller bow
11 Dirt receptacle
12 Suction support
13 Connection bushing
14 Floor nozzle
15 Suction tube
16 Rotary switch for suction hose cross
section
17 Carrying handle
18 Filter cover
19 Scale of the suction hose cross section
20 Bender
21 Rotary switch for suction output (min-
max)
22 Indicator lamp
23 Socket
24 Automatic filter dedusting
25 Main switch
26 Flat fold filter
27 Filter dedusting
28 Floor nozzle holder
29 Holder for crevice nozzle
30 Holder for suction pipes
31 Power cord
32 Nameplate
WARNING: This appliance con-
tains harmful dust. The emptying
and maintenance, including the
removal of the dust bag, may
only be executed by trained personnel
wearing suitable protection equipment. Do
not switch on until the complete filter sys-
tem has been installed and until the func-
tion of the volume flow control has been
checked.
ƽ
Danger
– When the outgoing air is carried back
into the room, a sufficient ventilation
rate L in the room must be ensured. To
comply with the required limit values the
carried back volume flow must be 50%
of the fresh air volume flow (room vol-
ume V
R
x ventilation rate L
W
) at maxi-
mum. Without a specific ventilation
system the following applies: L
W
=1h –1 .
– Only persons trained in the use of the
machine and the handling of substanc-
es for which the machine is to be used
including training in the safe disposal of
the sucked-in material may use the ma-
chine.
– This appliance contains harmful dust.
Evacuation and maintenance work, in-
cluding the disposal of the dust collec-
tion containers, may only be performed
by specialists who wear the appropriate
protective equipment.

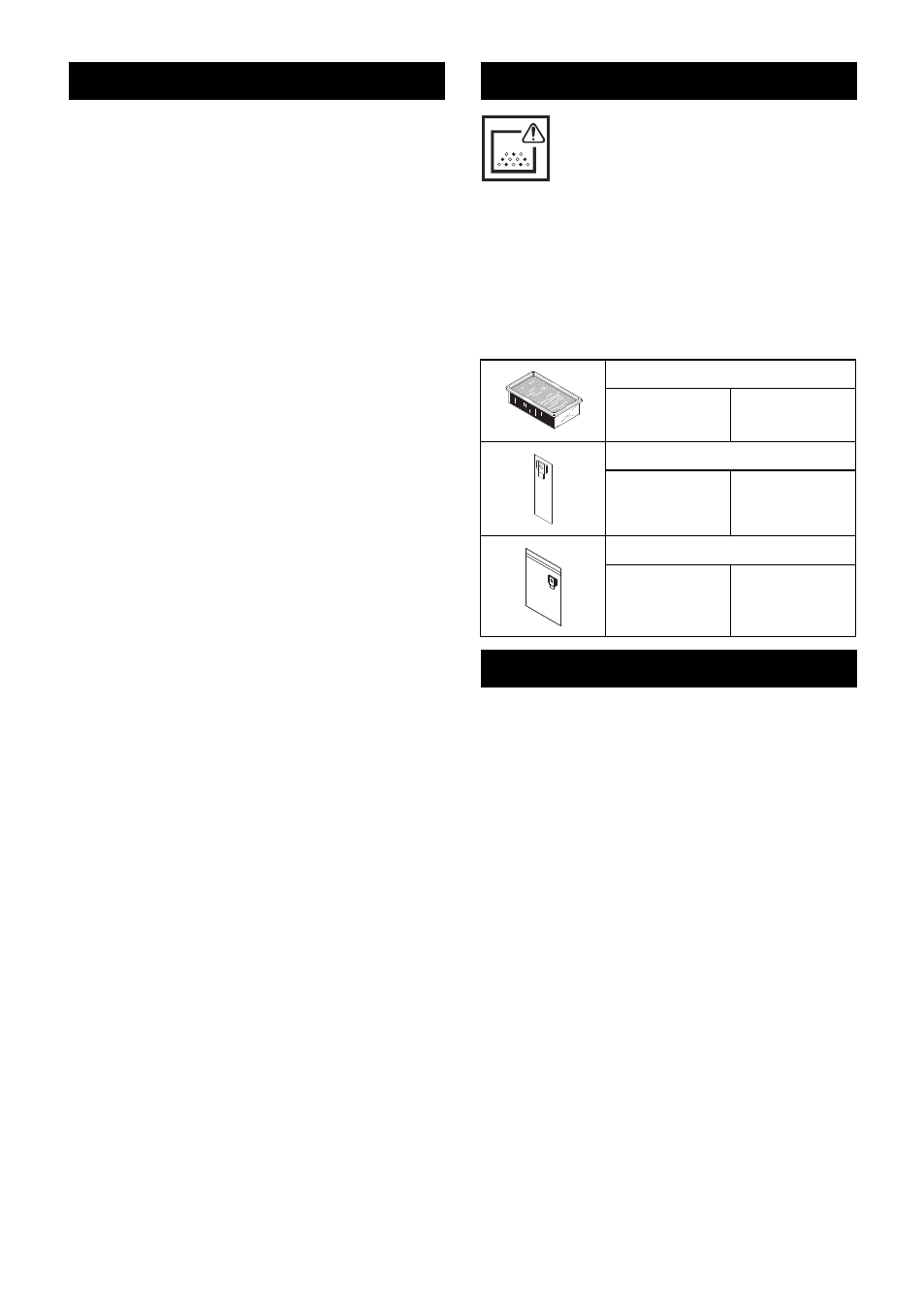

Device elements Symbols on the machine
Flat fold filter
Order No.
6.904-367.0
Paper filter bag
Order No.
6.904-208.0
Dust disposal bag
Order No.
6.596-886.0
Safety instructions
18 EN
