ECU Installation
To install your new Platinum Pro Plug-in to your Honda S2000 AP1, please follow
the procedures below.
* Please Note the following Installation photos based on Australian domestic market Honda S2000 AP1.
You will require the following tools
• Screwdriver Small Flat
• Socket set with 10mm socket
• Cable Ties / 3M Velcro tape or similar
1. Locate your factory ECU. This will be located on the passenger side 'A' pillar, behind
the kick panel. Remove the kick panel to access the ECU.

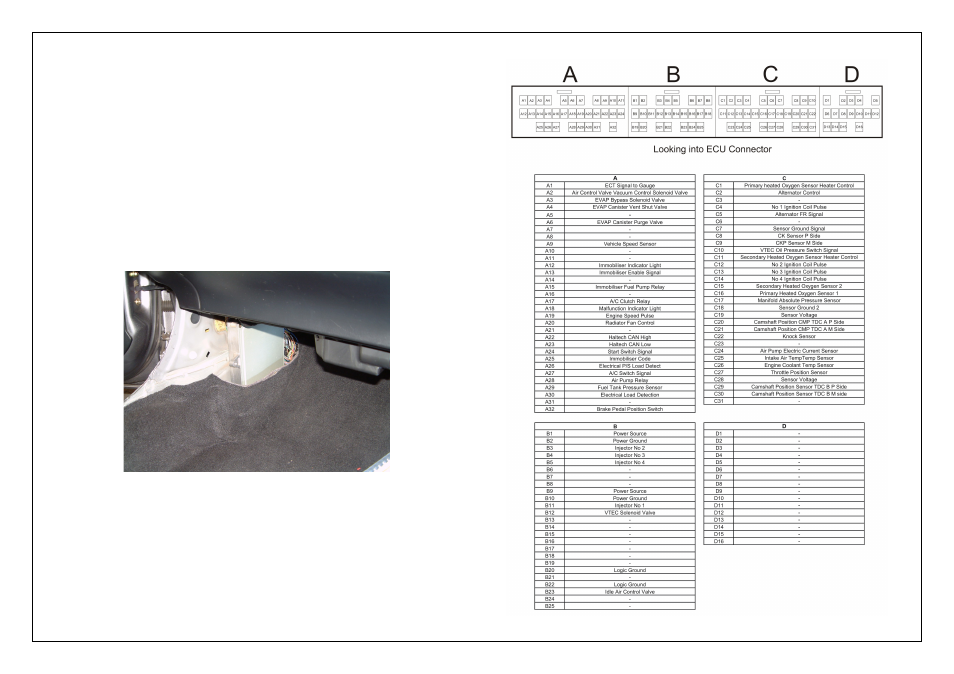

Figure 1 – Passenger side kick panel showing ECU location
ECU Pinout
Figure 11 – Platinum Pro Plug-in Honda S2000 AP1 ECU Pinout
