Haltech Platinum PRO PLUG-IN Nissan Skyline R34 GT-t (HT055105) User Manual
Page 7
Rear Auxiliary Connector
The Platinum Pro Plugin Series allows further expansion of your ECU by the
Rear Auxiliary Connector.
The Rear Auxiliary connector allows you access to:
•
1 Additional Digital Pulsed Input ( DPI )
•
2 Additional Digital Pulsed Outputs ( DPO )
•
2 Additional Digital Switched Outputs ( DSO )
•
4 Additional Analogue Voltage Inputs ( AVI )
•
2 Additional +13.8V Sensor Power Outputs (Limited to 500mA Per output pin)
•
2 Additional +5V Sensor Power Output (Limited to 50mA Per output pin)
•
2 Signal Grounds
These extra Inputs / Outputs can be used to:
•
Fit additional sensors. (eg MAP,Temperature and Flex Fuel )
•
Control additional devices via relays
•
Control additional solenoids directly (eg Aftermarket Boost Control solenoid)
The Rear Auxiliary harness is available as an optional extra. ( HT040003 )

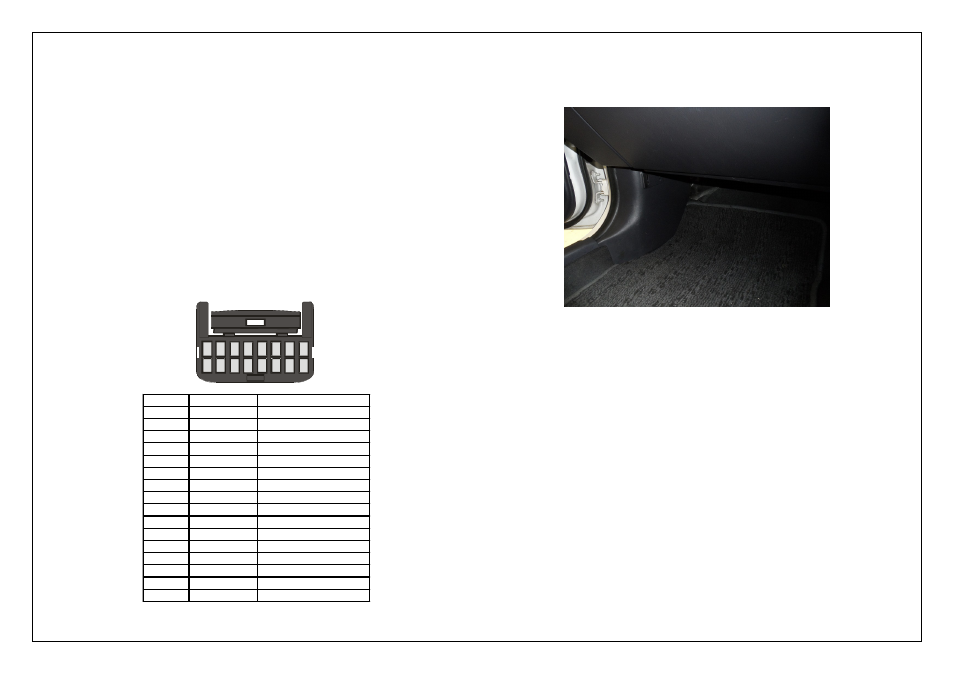

Figure 7- Rear Auxiliary Harness Connector and Pinout
6.
Mount the unit using cable ties and 3M Velcro tape or similar.
Once the unit is securely mounted on the A pillar you can now proceed to
re-install the kick panel.
Figure 6 – Kick panel Re-installed
1
2
3
4
9
10
11
12
5
6
7
8
13
14
15
16
Looking into Back Of Connector
Pin #
Wire Colour
Connection
1
O
+5V (50mA Max)
2
Y
AVI1 (MAP)
3
O/B
AVI2
4
B/W
SIGNAL GROUND
5
V/B
DPO1
6
V/BR
DPO2
7
GY
DPI1
8
R
+13.8V (500mA Max)
9
O
+5V (50mA Max)
10
GY
AVI 3
11
GY/B
AVI 4
12
B/W
SIGNAL GROUND
13
V/R
DSO1
14
V/O
DSO2
15
-
-
16
R
+13.8V (500mA Max)
