ENGLISH

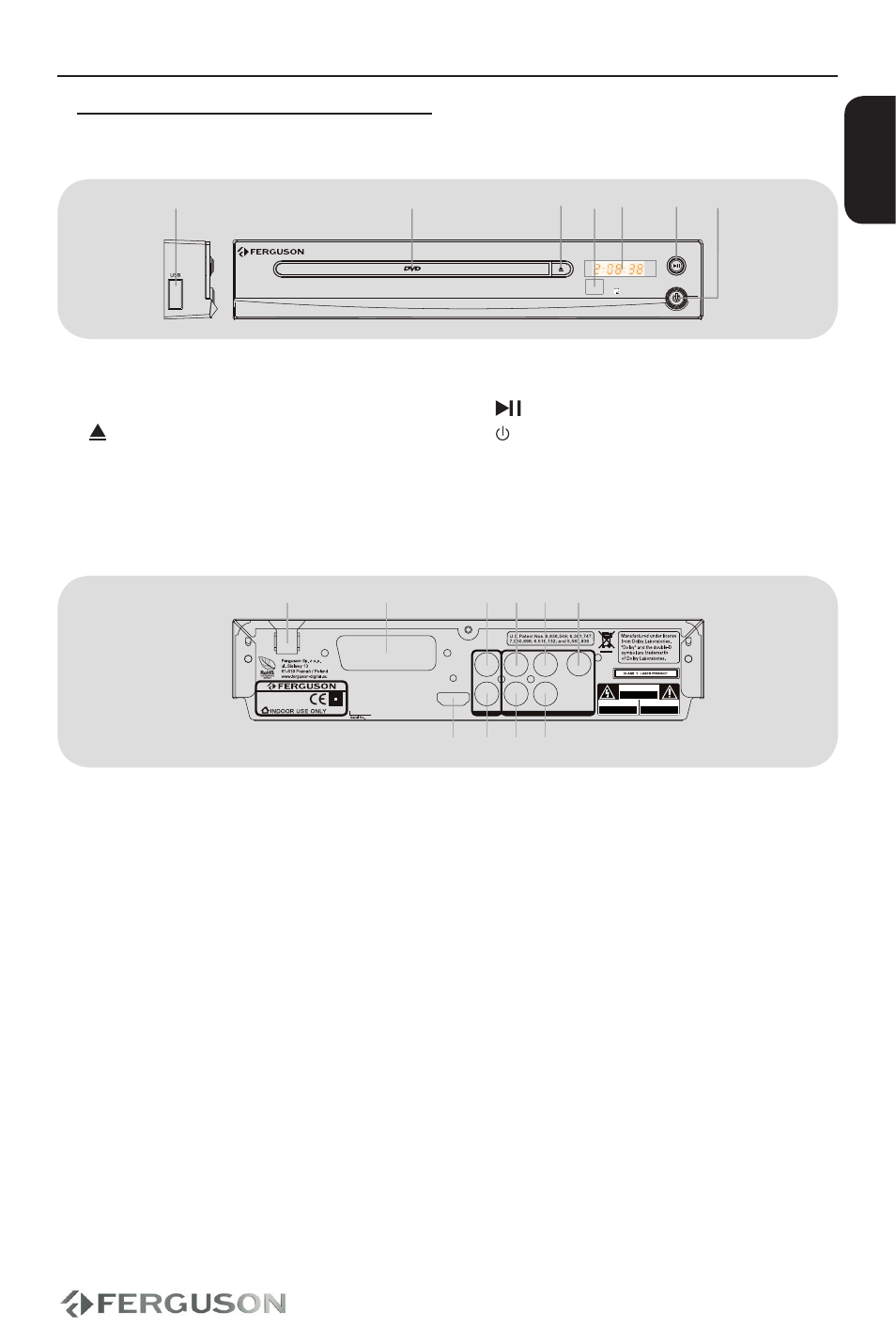

Functional Overview
Front and Rear panels
A
USB port - Input the supported USB
device
B
Disc tray
C
EJECT - Open / close the disc tray
D
IR Sensor - Point the remote control
towards this sensor
E
Display - Shows information about
the current status of the DVD Player
F
- Starts/pauses playback
G
POWER - Turns the player on
A
Main (AC Power Cord) - connect to a
standard AC outlet
B SCART - connect to SCART input of a TV
C L Stereo Audio Out - connect to audio
left input of a stereo system
D
Y (Component Video Out) - connect
to Y input of a TV
E
Pb (Component Video Out) - connect
to Pb input of a TV
F
Pr (Component Video Out) - connect
to Pr input of a TV
G
HDMI - Audio and video output socket
for the high definition television set
H
R Stereo Audio Out - connect to audio
right input of a stereo system
I
CVBS (Composite Video Out) -
connect to CVBS video input of a TV
J
COAXIAL (Digital Audio Out) - connect
to coaxial audio input of an amplifier
