Ferguson D-690 - Manual (Page 11)

7
CAUTION!
DO NOT OPEN
RISK OF ELECTRIC SHOCK
ACHTUNG!
NICHT ÖFFNEN LEBENSGEFAHR
UWAGA!
NIE OTWIERAĆ RYZYKO PORAŻENIA
D-690
DVD Player
AC 110-240V~
50/60 Hz 12W
SCART
VIDEO AUDIO ANALOG OUT
VIDEO AUDIO
DIGITAL OUT
HDMI STEREO AUDIO OUT
L
R COAXIAL
Y Pb
CVBS
Pr
DIGITAL AUDIO OUT / ANALOG VIDEO OUT
AUDIO
IN
DIGITAL
CAUTION!
DO NOT OPEN
RISK OF ELECTRIC SHOCK
ACHTUNG!
NICHT ÖFFNEN
LEBENSGEFAHR
UWAGA!
NIE OTWIERAĆ
RYZYKO PORAŻENIA
D-690
DVD Player
AC 110-240V~
50/60 Hz 12W
SCART
VIDEO AUDIO ANALOG OUT
VIDEO AUDIO
DIGITAL OUT
HDMI STEREO AUDIO OUT
L
R COAXIAL
Y Pb
CVBS
Pr
DIGITAL AUDIO OUT / ANALOG VIDEO OUT
AUDIO
IN
DIGITAL
ENGLISH

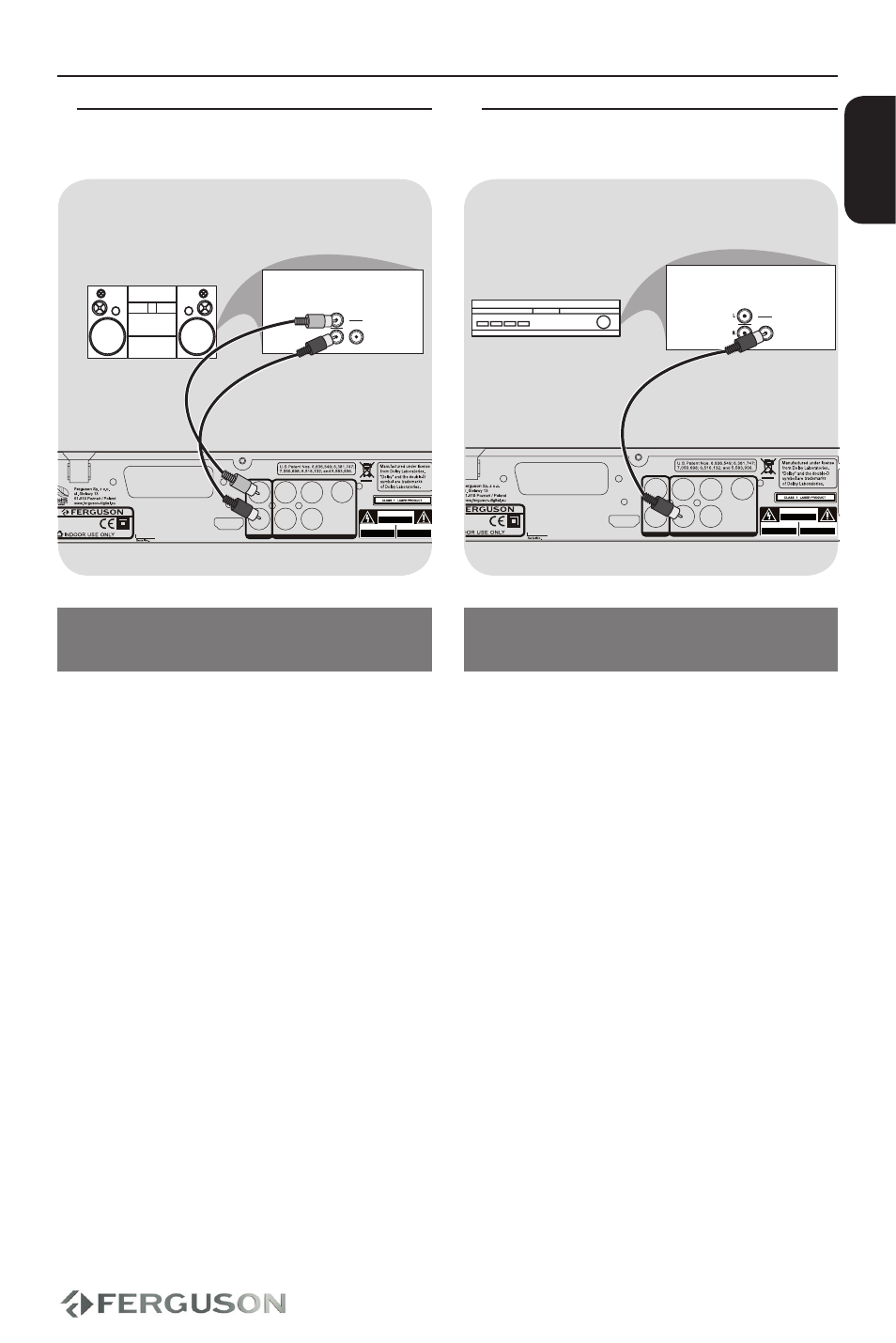

Optional: Connecting to an Stereo
System
Stereo system has Dolby Pro Logic or
Right/Left Audio In Jack
A
Select one of the video connections
(CVBS VIDEO IN, SCART or COMPONENT
VIDEO IN) depending on the options
available on your TV.
B
Use the audio cables (white/red) to
connect AUDIO OUT (L/R) jacks of the
DVD Player to the corresponding AUDIO
IN jackts on the stereo system.
AV Receiver
STEREO
Connections
Optional: Connecting Digital AV
Receiver
Receiver has a PCM, Dolby Digital, or
DTS decoder
A
Select one of the video connections
(CVBS VIDEO IN, SCART or COMPONENT
VIDEO IN) depending on the options
available on your TV.
B
Connect the COAXIAL or OPTICAL jack
of the DVD player to the corresponding
Digital Audio In jack on your Receiver
(cable not supplied).
C
Set the DVD Player’s Digital Output to
PCM-Only or RAW depending on the
capabilities of your Receiver.
Helpful hint:
 If the audio format of the Digital Output
does not match the capabilities of your
receiver, the receiver will produce a
strong, distorted sound or no sound at all.
