Page 14

The thickness of the supporting surface should be taken

into account when choosing screws for the fixing hooks:

30 mm thick: 17.55 mm screws

40 mm thick: 7.55 mm screws

Fix the hob as follows:

1. Use short flat-bottomed screws to fix the 4 alignment

springs in the holes provided at the central point of each

side of the hob.

2. Place the hob in the cavity, make sure it is in a central

position and push down on the whole perimeter until the

hob is stuck to the supporting surface.

3. For hobs with raised sides: After inserting the hob into

its cavity, insert the 4 fixing hooks (each has its own pin)

into the lower edges of the hob, using the long pointed

screws to fix it in place, until the glass is stuck to the

supporting surface.

The screws for the alignment springs must remain

accessible.

In order to adhere to safety standards, the appliance

must not come into contact with electrical parts once it

has been installed.

All parts which ensure the safe operation of the

appliance must not be removable without the aid of a

tool.

Electrical connection

The electrical connection of the hob and any built-in

oven must be carried out separately, both for safety

purposes and to make extracting the oven easier.

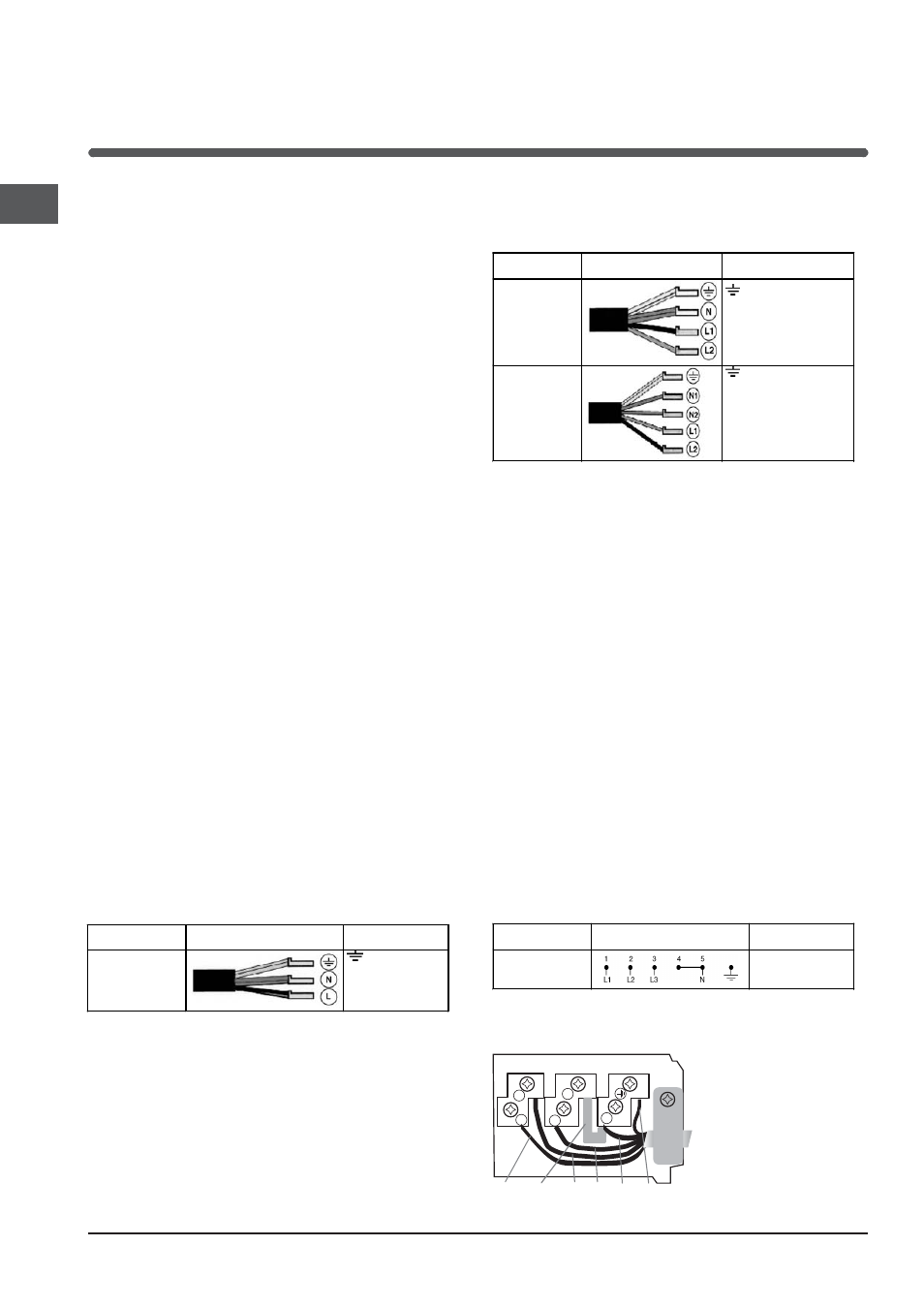

Single-phase connection

The hob is equipped with a pre-connected electricity

supply cable, which is designed for single-phase

connection. Connect the wires in accordance with the

instructions given in the following table and diagrams:

Voltage and

mains frequency

Electrical cable

Wire connection

230V 1+N ~

50 Hz

: yellow/green;

N: the two blue wires
together
L: brown and black
together

Other types of connection

If the mains supply corresponds with one of the

following:

Voltage and mains frequency

400V - 2+N ~ 50 Hz

230V 3 ~ 50 Hz

400V - 2+2N ~ 50 Hz

Separate the wires and connect them in accordance

with the instructions given in the following table and

diagrams:

Voltage and

mains frequency

Electrical cable

Wire connection

400V - 2+N ~

50 Hz

230V 3 ~

50Hz

: yellow/green;

N: the two blue wires together

L1: black

L2: brown

400V - 2+2N ~ ı 50

: yellow/green;

N1: blue

N2: blue

L1: black

L2: brown

If the mains supply corresponds with one of the

following:

Voltage and mains frequency

400V 3 - N ~ 50 Hz

proceed as follows:

The cable provided is not suitable for the following

types of installation.

1. Use a suitable supply cable, H05RR-F or higher,

with the right dimensions (cable section: 25 mm).

2. To open the terminal board, insert a screwdriver

into the side tabs of the cover (see Terminal board

picture).

3. Loosen the cable clamp screw and the terminal

board screws in accordance with the type of

connection required and position the connection

supports as shown in the following table and

diagrams.

4. Position the wires according to the information

given in the following table and diagrams and

connect the appliance by tightening all the screws

for the springs as much as possible.

Voltage and

mains frequency

Electrical connections

Terminal board

400V 3-N ~ ı 50

Three-phase 400

5. Fix the power supply cable in place by fastening

the cable clamp screw, then put the cover back on.

U-bolt

connection support

Phase Phase

Phase

Neutral Earth

Three-phase 400
