Rack Mounting
The switch can be mounted in an EIA standard-size, 19-inch
rack, which can be placed in a wiring closet with other
equipment. Attach the mounting brackets at the switch’s front
panel (one each side), and secure them with the screws provided.
16-Port 10 /100Mbps Ethernet S m art Switc h
SYSTEM F DX
POWER Link/ACT FX

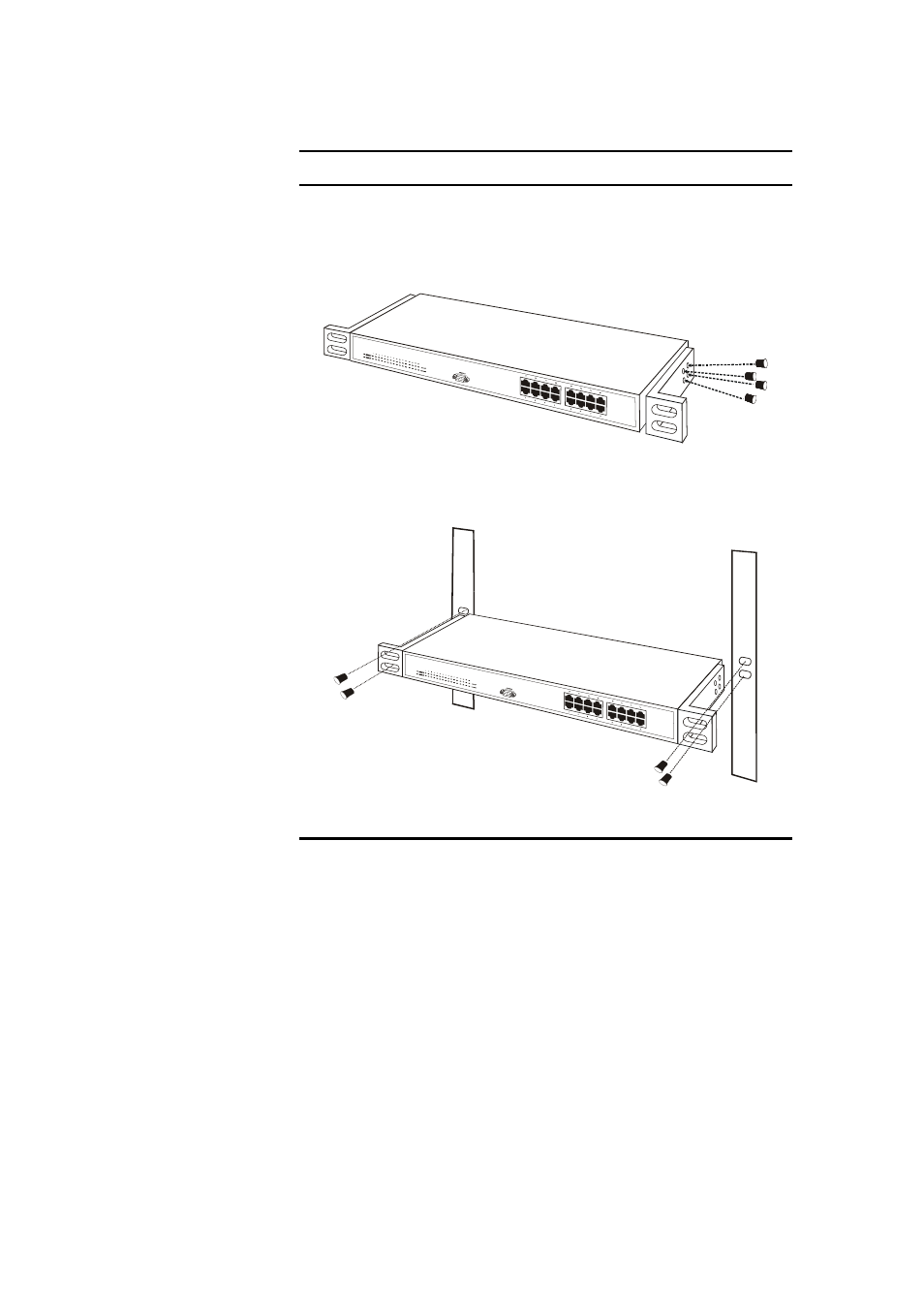

Figure 1. Combine the Switch with the provided screws
Then, use screws provided with the equipment rack to mount
each switch in the rack.
16-Port 10 /100Mbps Ethernet S mart Switc h
SYSTEM FD X
POWER Link/ACT F X
Figure 2. Mount the Switch in the rack
