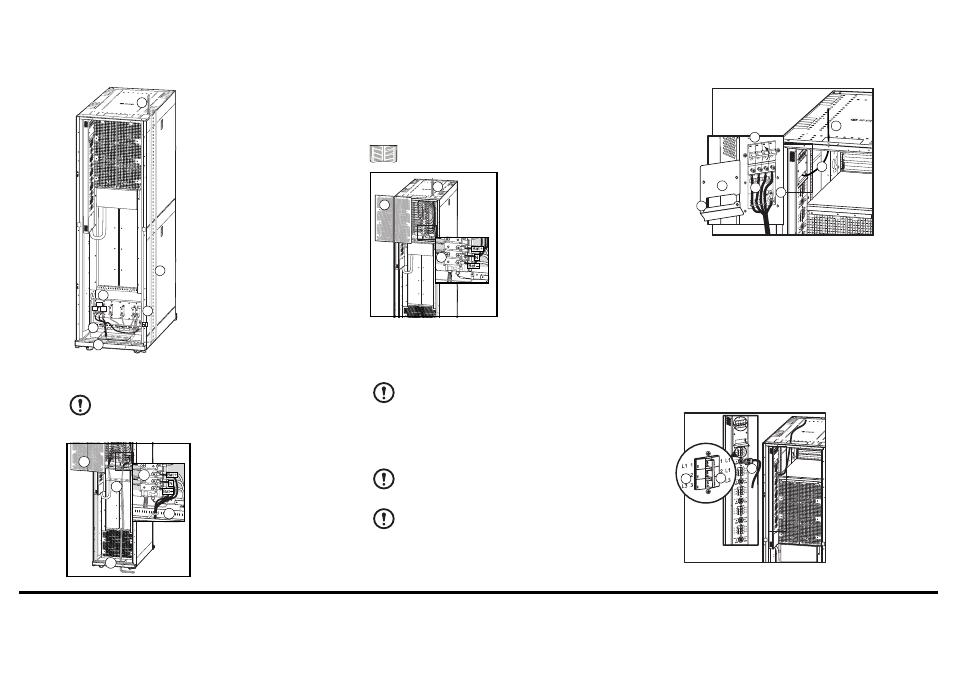

Smart-UPS® VT ISX w/transformer and PDU, 20-30 kVA, 480 V, Installation
Top cable entry
Feed the input cables in
conduits (not supplied) through
the punched holes.
Run the cables in the side
panel.
Guide the input cables through
the punched holes in the
bottom plate up to the cable
landing.
Use cable ties to attach the
cables to the slotted plate.
Connect the input cables (L1,
L2, L3), to the cable landings.
Connect the ground cable
using the provided screw (earth
symbol beneath applicable
screw).
Reinstall bottom cable landing
cover.
3
Battery Cable Landings
Bottom cable entry
Use a torx screwdriver to
remove top cable landing
covers.
Feed the battery cable through
the bottom of the UPS. On the
outside of the bottom cover,
run the cable in conduits (not
provided) to the conduit box
.
Feed the cables through the
conduit box.
L1
L2
L3
Note
The UPS may ONLY be connected to the APC SUVTBXR
Battery Enclosure.
Use cable ties to attach the cable to the slotted plate.
Connect the battery cables Bat+ and Bat÷ and the N cable in the
designated areas.
Top cable entry
Use a torx screwdriver to
remove the top cable
landing covers.
Feed the battery cables
through the punched holes
in the top cover.
Connect the battery cables
Bat+ and Bat÷ and the N
cable in the designated
areas.
4
Connecting Load to the PDU
Preparing to connect the load to the PDU(s)
See how to punch holes in the top cover in section 1:
Preparing for top cable entry.
Note
Connect the load equipment evenly between the 3 phases to
avoid overloading the PDU. The total output capacity of the
PDU is approximately twice the output capability of the UPS.
This means that UPS would be over-loaded if all PDU outlets
were loaded to their rating. Load status on the individual
phases can be found through the UPS display or through the
web interface.
Note
Equipment connected to the 3-phased output may require
overcurrent protection with a lower rating than the 3-phased
output.
Note
For 3-phased output, the highest current may be in the Neutral
conductor at non-linear loads (up to 173%).
Smart-UPS® VT ISX w/transformer and PDU, 20-30 kVA, 480 V, Installation
Connecting load to the 4-pole breaker
Set the top PDU breaker to the OFF position.
Using a torx screwdriver,
remove the four M4 screws from the top
plate of PDU. Remove plate.
Connect the L1, L2, L3, N to the terminals and tighten the M6 screws
firmly. Fasten cables with cable ties.
Attach the ground cable to the ground stud (labeled earth) and fasten
with cable tie.
Use a torx screwdriver to reinstall the top plate removed in step 2.
Feed the cable through the hole in the top cover.
Connecting load to the 3-pole breaker(s)
Set the applicable
breaker to the OFF
position.
Insert the plug from
the load into the
receptacle. Secure
the plug by turning
it clockwise
approximately 30°.
Set the applicable
breaker to the ON
position to supply
the load.
