American DJ T4 User Manual

Page 3

American DJ Supply

- www.americandj.com - T4™ Instruction Manual Page 6

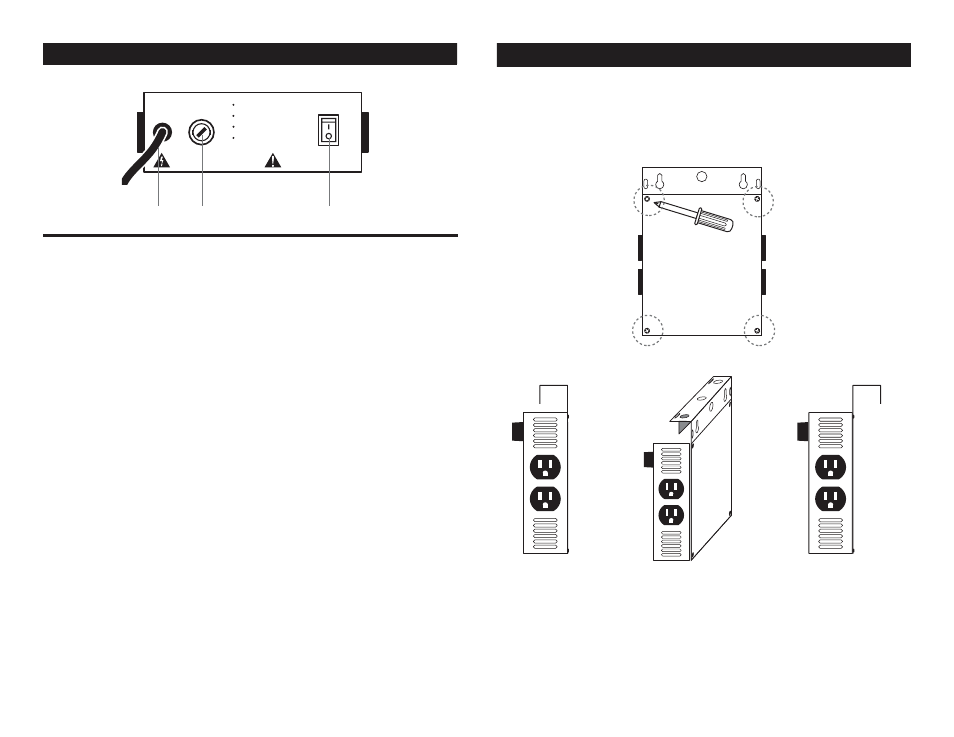

The T4™ backing plate was designed to be removed and reversed.
Reversing the backing plate will allow you to mount the T4™ to a tripod,
such as the American DJ

LTS-6,™ without the use of a clamp. To

reverse the backing plate, be sure

T4™

Mounting Options

Step 1:

With a Phil-

lips #1 screwdriver
remove the four screw
that hold the back
plate to unit.

Step 4:

Line up the

screw holes and

Step 3:

Flip the

backing plate over
and reattached to the
unit.

Step 2:

Remove the

backing plate from the
unit.

6. Power Cord -

This cord provides the unit’s main power. Please follow

the following power guide lines:
• Be sure that the local power outlet match that of the required volt-

age of the unit.

•

Do not attempt to operate this unit if the power cord has been

frayed or damaged.

•

Disconnect from main power before making any type of connection.

•

Never plug this mixer in to a dimmer pack.

• Route your power cord out of the way of foot trafﬁ c.
•

Power Cord Protection - Power supply cords should be routed so

that they are not likely to be walked on or pinched by items placed

upon or against them, paying particular attention to cords at plugs,

convenience receptacles, and the point where they exit from the

mixer.

• Disconnect main power during long periods of none use.

7. Fuse Holder & Fuse -

This fuse holder holds a 6.3A GMA fuse. To

replace the fuse; Insert a ﬂ at head screwdriver into the fuse holder slot
and turn counter-clockwise. Remove the fuse holder and replace with a
similar fuse. Replace in reverse order.

Caution: Always replace with the exact same type fuse, unless
otherwise specified by an authorized American DJ

service tech-

nician. Replacing with a fuse other than speciﬁ ed may damage
your unit and will void your manufactures warranty

8. Power Switch -

This is the main power ON/OFF button. Before main

power is applied, be sure you have made all connections.

American DJ Supply

- www.americandj.com - T4™ Instruction Manual Page 5

T4™

Controls & Functions

POWER INPUT

FUSE

POWER

WARNING: THIS APPARATUS MUST BE EARTHED.

CAUTION: RISK OF ELECTRIC SHOCK, DO NOT OPEN.

N OUVREZ PAS...RISQUE DE CHOCELECTRIQUE

POWER INPUT: AC 120V~60Hz, 6A

OUTPUT: 0.06-5A/CH

MAX LOADING: 6A

FUSE: F6A 250V 5x20mm
