EN
SR200 Instruction Manual
The Spektrum ™ SR200 2-channel DSM ® Sport Surface receiver is compatible with all
Spektrum surface transmitters and operates in DSM mode.
Specifications
Type: DSM
Dimensions (LxWxH): 1.62 x 1.06 x .58 in (41 x 27 x 15mm)
Channels: 2 Weight: 0.36 oz (10 g)
Band: 2.4GHz Voltage Range: 3.5–9.6V

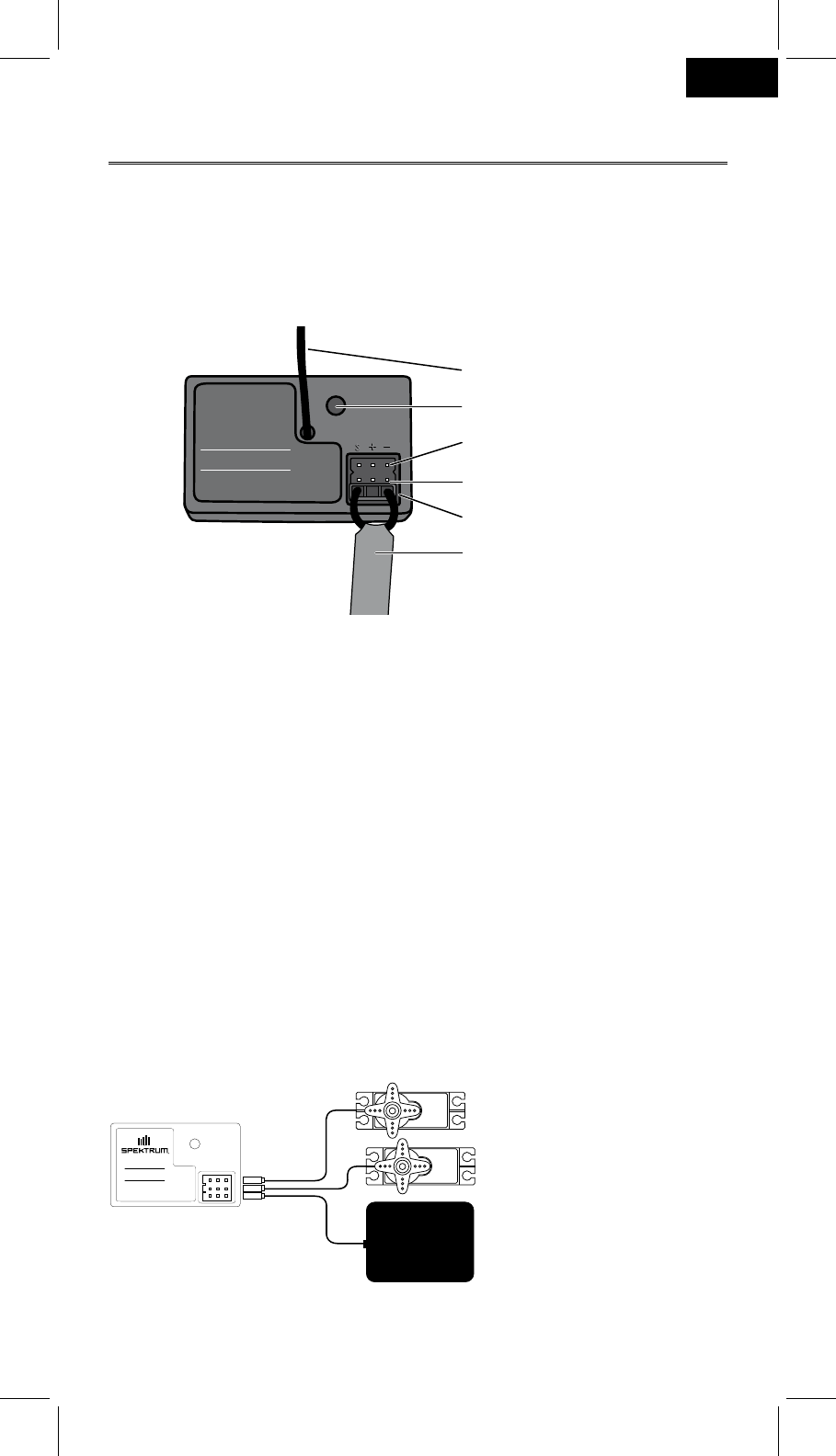

Antenna
LED
Throttle Port
Steering Port
Bind/Battery Port
Bind Plug
THR
STR
BIND
SR200
Receiver Connection and Installation
Install the Receiver in your vehicle using double-sided foam servo tape. Foam servo tape
will hold the receiver in place and help isolate it from vibrations. Mount the antenna up and
away from the vehicle in an antenna tube. The higher up the antenna is, the better signal
it will receive.
NOTICE: Do not cut the antenna.
Binding Receiver to Transmitter
In order to operate, the receiver must be bound to the transmitter. Binding is the process of
programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single
specific transmitter. When a receiver is bound to a transmitter/model memory, the receiver
will only respond to that specific transmitter/model memory.
Binding
1. With the receiver off, insert the bind plug into the BIND port in the receiver.
2. Power the receiver through any port. If an ESC is being used, power on the ESC with the ESC
lead plugged in the throttle channel port. The green LED will flash continuously, indicating
that the receiver is in bind mode.
Powering the receiver with a separate receiver pack
Receiver
Steering Servo
Throttle Servo
SR200
THR
STR
BIND
2.4Ghz DSM
SPORT SURFACE
RECEIVER
Battery
