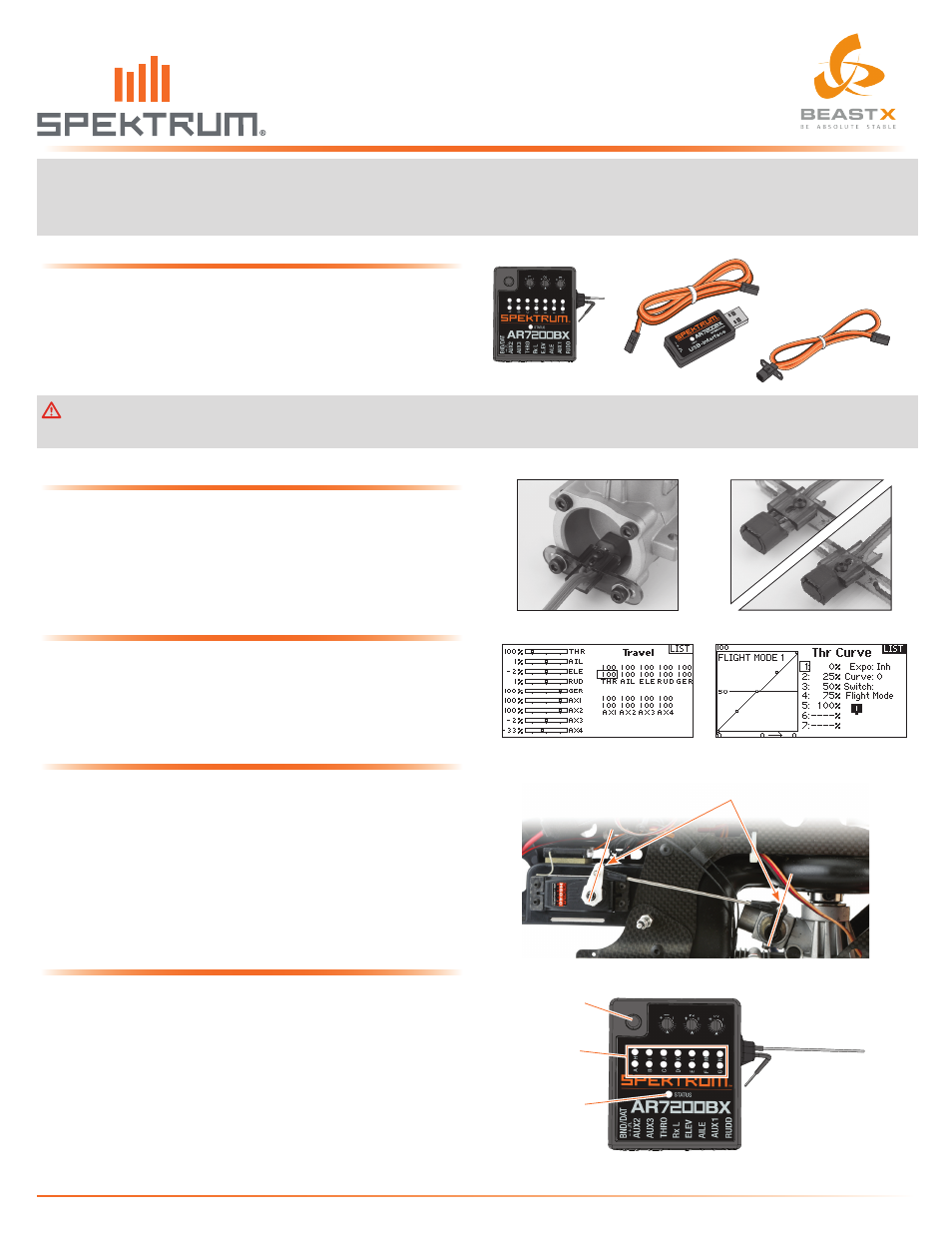

Spektrum AR7200BX Governor
Firmware Update
Important: When using the AR7200BX with larger helicopters (500-size and larger): It is necessary that you connect a DSMX
®
remote receiver
(not included) to the AR7200BX before binding . See “Receiver Installation” for more information.
Important: You must download and install the latest AR7200BX receiver firmware at http://ar7200bx.beastx.com/ BEFORE installing the governor update.
required
• Spektrum™ AR7200BX Flybarless Controller
• Spektrum AR7200BX USB Updater (SPMA3030 or BTXA76007)
• Governor Sensor
– Aircraft RPM Sensor (SPM9560) or
– RPM Sensor (optical sensor) (SPM1452)
navigating the Governor Setup menus
• Enter the Governor Setup Menu by pressing the Setup Button on the
AR7200BX before power-up and holding it for approximately 2 seconds
until the LED at menu point
(a) illuminates.
• There are 9 menu points (Menu LED,
a, B, C, D, E, F, G, H, I).
• Menu points are shown by the menu LEDs located to the right of the
alphabetical letters on the case.
• Menu status is shown on the LED located next to “Status” close to the
center of the case.
• Quickly press the Setup Button to move from one menu point to the next.
• Press and hold the Setup Button to change or save a value.
preparing Your transmitter
1. Program the throttle channel travel to 100% for both high and
low endpoints.
2. Select a linear throttle curve. You will program your normal throttle
curves later.
rpm Sensor
Installation
Mount the RPM sensor and bracket to the backplate screws of your engine as shown.
• Threadlock must be used on the screws.
• The RPM sensor bracket is adjustable by extending or retracting the rpm
sensor and fastening the screw in place.
• Connect the RPM sensor to Aux 3.
throttle arm Setup
1. Disconnect the throttle linkage from the throttle arm.
2. Make sure the throttle curve in your transmitter is linear.
3. Move the throttle stick to 50% and make sure the throttle barrel is open 50%.
4. Adjust the throttle arm and the servo arm so they are parallel to each other.
5. Select holes in the servo horn and the throttle arm to achieve the full range
of throttle motion. The transmitter servo travel must stay above 100%.
6. Program your normal throttle curves for flying.
WarnInG: For first-time use or when making mechanical changes that involve throw, always ensure you reset the servo limits to prevent binding. Not
doing so will cause the helicopter to crash, resulting in property damage and injury.
Menu Point
LEDs
Setup Button
Status LED
Parallel
DX9 screens shown
