Spektrum SPMAR7300BX User Manual
Ar7300bx receiver instruction sheet, Batt

Spektrum Ar7300BX receiver
impOrtANt: This instruction sheet is a supplement to the full product manual
included with your AR7300BX receiver. You must follow all installation and
programming instructions included in the full product manual before flying your
helicopter.
compatibility
The AR7300BX receiver features DSMX
®
technology and is compatible with all
Spektrum™ and JR
®
aircraft radios that support DSM2
®
/DSMX
®
technology.
Features
• Integrated MicroBeastX
®
3-axis Flybarless control system
• Safety and control of DSMX technology
• 11ms frame rate
• 2048 resolution
• Heavy-duty 16AWG input leads pre-wired with EC3™ connector.
• Includes one internal receiver and recognizes one additional remote receiver.
• Soft switch failsafe in the case that the switch is damaged.
• SmartSafe™ and Preset Failsafe options
• Flight Log and Telemetry Compatible
Applications
• 50 to 90- size nitro and gas powered helicopters
• 550 to 800- size electric helicopters

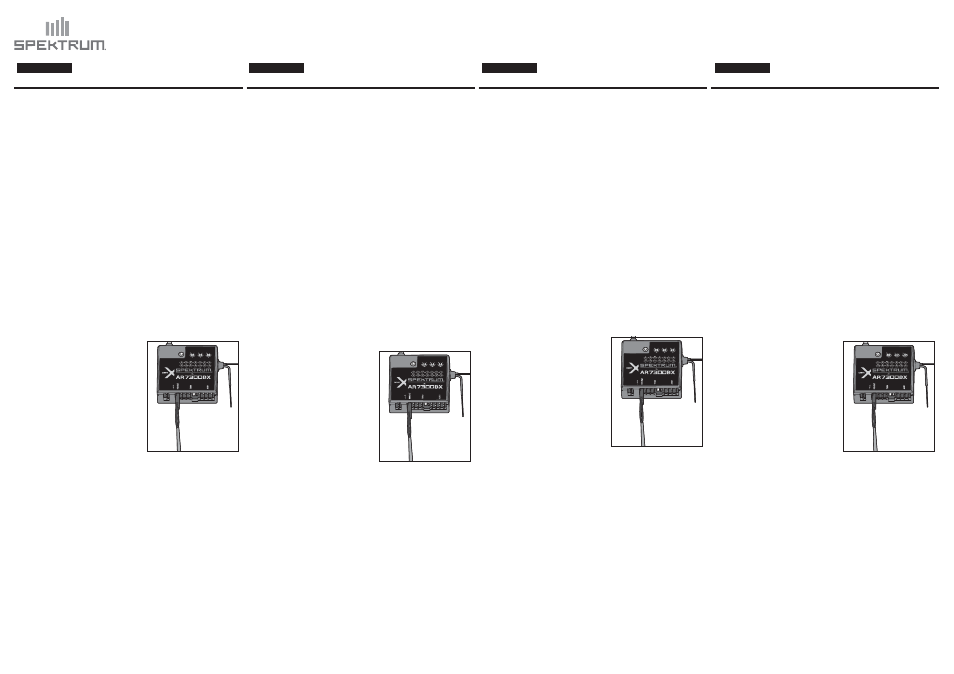

Binding
1. Insert a bind plug in the
BiND port in the
receiver.
2. Insert the switch harness* into the
SWitcH port.
3. Connect the optional remote receiver
(not included) to port
rx L on the main
receiver.
4. Connect a battery to the EC3 connector and
turn on the switch to power the receiver.
All of the LEDs on the internal and remote
receivers start flashing, indicating they are in
bind mode.
5. Place all the channels (sticks and switches)
on the transmitter in the desired failsafe
position.
6. Place the transmitter in Bind mode. Binding is complete when all of the receiver LEDs
are solid orange.
7. Remove the bind plug, then power off the receiver.
* The included switch harness is an optional switch and is not necessary to power the receiver.
Specifications
Ar7300BX
Type: DSMX Full Range receiver
Channels: 7
Modulation: DSM2, DSMX
Dimensions: 1.86 in x 1.58 in x 0.56 in (47.3mm x 40.2mm x 14.2mm)
Weight: 1.1 oz (32.5 g)
Voltage input range: 3.5-9.6V
Minimum receiver operational voltage: 3.5 volts
Resolution: 2048
Switch: Soft Switch
Connector type: EC3
remote receiver (sold separately)
Dimensions LxWxH: 1.02 in x 0.80 in x 0.27 in (25.8mm x 20.2mm x 6.8mm)
Weight: 0.1 oz (5.0 g)
Spektrum Ar7300BX empFäNger
WicHtig: Diese Anleitung ist eine Ergänzung der ausführlichen Bedienungsanleitung
aus dem Lieferumfang ihres AR7300BX Empfängers. Folgen Sie bitte allen Anweisungen
zum Einbau und Programmierung der ausführlichen Anleitung bevor Sie den
Hubschrauber fliegen.
kompatibilität
Der AR7300BX ist mit der DSMX Technologie ausgestattet und ist kompatibel mit allen
Spektrum und JR Sendern die DSM2 / DSMX Technologie unterstützen.
Features
• Integriertes MicroBeastX 3-Achsen Flybarless Control System
• Sicherheit und Kontrolle mit der DSMX Technologie
• 11ms Frame Rate
• 2048 Schritte Auflösung
• Heavy Duty 16 AWG Anschlusskabel mit EC3 Anschluss
• Enthält einen internen Empfänger und Möglichkeit zum Anschluss eines zusätzlichen
Satellitenempfängers
• Softschalter Failsafe schützt vor Schalterausfall
• Preset Failsafe und SmartSafe wählbar
• Telemetrie und Flight Log kompatibel
Applications
• 50 - 90 Nitro und Benziner Hubschrauber
• Hubschrauber der 550 bis 800 Klasse
Binden
1. Stecken Sie den Bindestecker in den
Bindeport des Empfängers.
2. Stecken Sie das Schalterkabel* in den SWITCH
Port des Empfängers.
3. Schließen Sie den optionalen Satellitenempfänger
(nicht im Lieferumfang) an den
rX L Port des
Hauptempfängers an.
4. Schalten Sie den Empfänger mit Anschluss
des EC3 Anschlusses ein. Sämtliche LED´s
des Empfängers beginnen zu blinken und
zeigen so den Bindemode an.
5. Bringen Sie die Steuerknüppel und Schalter
in die gewünschte Failsafepositionen.
6. Aktivieren Sie den Bindemode des
Empfängers. Die Bindung ist durchgeführt wenn die LEDs orange leuchten.
7. Entfernen Sie den Bindestecker und schalten den Empfänger aus.
*Das im Lieferumfang befindliche Schalterkabel ist optional und nicht notwendig um den Empfänger
einzuschalten.
Spezifikationen
Ar7300BX
Typ: DSMX Empfänger mit voller Reichweite
Kanäle: 7
Modulation: DSM2, DSMX
Abmessungen: 47.3mm x 40.2mm x 14.2mm
Gewicht: 32,5g
Eingangsspannung: 3,5 Volt
Auflösung: 2048
Schalter: Soft Schalter (Port kann auch mit Ladeadaptern verwendet werden)
Anschluss Typ: EC3
Satellitenempfänger (separat erhältlich)
Abmessungen: 25.8mm x 20.2mm x 6.8mm
Weight: 5.0 g
récepteur Spektrum Ar7300BX
impOrtANt: Cette feuille d’instructions est un supplément du manuel complet fourni
avec votre récepteur AR7300BX. Vous devez suivre toutes les instructions relatives à
l’installation et la programmation du manuel avant de piloter votre hélicoptère.
compatibilité
Le récepteur AR7300BX possède la technologie DSMX et est compatible avec tous les
émetteurs Spektrum et JR supportant les technologies DSM2/DSMX.
caractéristiques
• Système de contrôle Flybarless 3 axes MicroBeastX intégré
• Technologie DSMX sécurisée
• Haute vitesse 11ms
• Résolution 2048
• Prise d’alimentation EC3
• Récepteur interne inclus et permet l’utilisation d’un satellite additionnel
• Interrupteur sécurisé
• SmartSafe et sécurité de maintien de la dernière commande
• Compatible télémétrie et flight log
Applications
•Hélicoptères thermiques classe 50-90
• Hélicoptères électriques de classe 550 à 800
Affectation
1. Insérez une prise d’affectation dans le port
Bind du récepteur.
2. Insérez le cordon interrupteur* dans le port
SWITCH.
3. Connectez le satellite optionnel (Non-fourni) au
port
rx L du récepteur principal.
4. Alimentez le récepteur par la prise EC3.
Les DELs du récepteur principal et du/des
sattellite(s) vont se mettre à clignoter pour
indiquer l’entrée en mode affectation.
5. Placez toutes les voies (manches et
interrupteurs) de l’émetteur dans les
positions désirées de failsafe.
6. Placez l’émetteur en mode Affectation.
L’affectation est réussie quand toutes les
DELs oranges sont allumée fixement.
7. Retirez la prise d’affectation, puis mettez le récepteur hors tension.
* l’utilisation du cordon interrupteur est facultative.
Specifications
Ar7300BX
Type : Récepteur DSMX longue portée
Voies : 7
Modulation : DSM2 et DSMX
Dimensions : 47.3 x 40.2 x 14.2mm
Masse : 32.5g
Tension d’alimentation : 3.5 à 9.6V
Tension minimale de fonctionnement : 3.5V
Résolution : 2048
Interrupteur : Soft Switch
Prise d’alimentation : EC3
récepteur satellite (vendu séparément)
Dimensions : 25.8 x 20.2 x 6.8mm
Masse : 5g
iStruziONi ricevitOre Spektrum Ar7300BX
impOrtANte: questo foglio di istruzioni è un supplemento del manuale completo
fornito insieme al ricevitore AR7300BX. Prima di far volare il proprio elicottero, bisogna
seguire attentamente tutte le istruzioni per l’installazione e la programmazione incluse
nel manuale completo di questo prodotto.
compatibilità
Il ricevitore AR7300BX dispone della tecnologia DSMX ed è compatibile con tutte le radio
Spektrum e JR per aerei che supportano la tecnologia DSM2/DSMX.
caratteristiche
• Sistema di controllo “flybarless” a 3 assi MicroBeast
• Sicurezza e controllo caratteristici della tecnologia DSMX
• Rateo di ripetizione del pacchetto 11ms
• Risoluzione 2048
• Cavi in ingresso maggiorati da 1,3mm (16AWG) già con connettore EC3 montato
• Include un ricevitore interno e riconosce un ricevitore remoto aggiuntivo
• Soft switch failsafe, nel caso che l’interruttore sia danneggiato
• Opzioni SmartSafe e Preset Failsafe
• Compatibile con Telemetry e Flight Log per la registrazione dei dati
Applicazioni
• Per elicotteri utilizzanti un motore a scoppio nella classe 50 - 90
• Per elicotteri utilizzanti un motore elettrico nella classe 550 - 800
connessione (binding)
1. Inserire il Bind Plug nella presa
BiND sul
ricevitore.
2. Inserire il cavetto dell’interruttore* nella presa
SWITCH del ricevitore.
3. Collegare il ricevitore remoto opzionale (non
fornito) alla presa
rx L sul ricevitore principale.
4. Collegare una batteria al connettore EC3
e accendere il ricevitore agendo sul suo
interruttore. Tutti i LED del ricevitore
principale e di quello remoto iniziano al
lampeggiare, indicando che sono in modalità
Bind (connessione)
5. Portare tutti i canali del trasmettitore (stick
e interruttori) nella posizione voluta per il
failsafe.
6. Mettere il trasmettitore in modalità Bind. La procedura di connessione è terminata
quando tutti i LED del ricevitore restano accesi fissi in arancio.
7. Togliere il Bind Plug e poi spegnere il ricevitore.
* L’interruttore incluso è opzionale e non è necessario per alimentare il ricevitore.
Dati tecnici
Ar7300BX
Tipo: ricevitore DSMX a piena portata
Canali: 7
Modulazione: DSM2, DSMX
Dimensioni: 47.3 x 40.2 x 14.2mm
Peso: 32,5g
Tensione di alimentazione: 3,5 - 9,6V
Tensione minima di funzionamento del ricevitore: 3,5V
Risoluzione: 2048
Interruttore: Soft Switch
Tipo di connettore: EC3
ricevitore remoto (venduto separatamente)
Dimensioni: 25,8 x 20,2 x 6,8mm
Peso: 5,0g
