BINDING ThE RECEIVER TO ThE
TRANSMITTER
Binding is the process of programming the receiver to
recognize the GUID (Globally Unique Identifier) code of a
single specific transmitter. The receiver only responds to the
transmitter the receiver is bound to.
1. Power the receiver off and insert the bind plug into the
BIND slot on the receiver.
2. Power the receiver through any open receiver slot. The
receiver LED will flash rapidly, indicating the receiver is in
bind mode.
3. Move the steering wheel and throttle trigger to the
failsafe positions and continue to hold those postions until
the binding process is complete.
4. Press the bind button on the DX2L while powering on the
transmitter. The red LED on the DX2L will flash after 4
seconds when the transmitter is in bind mode.

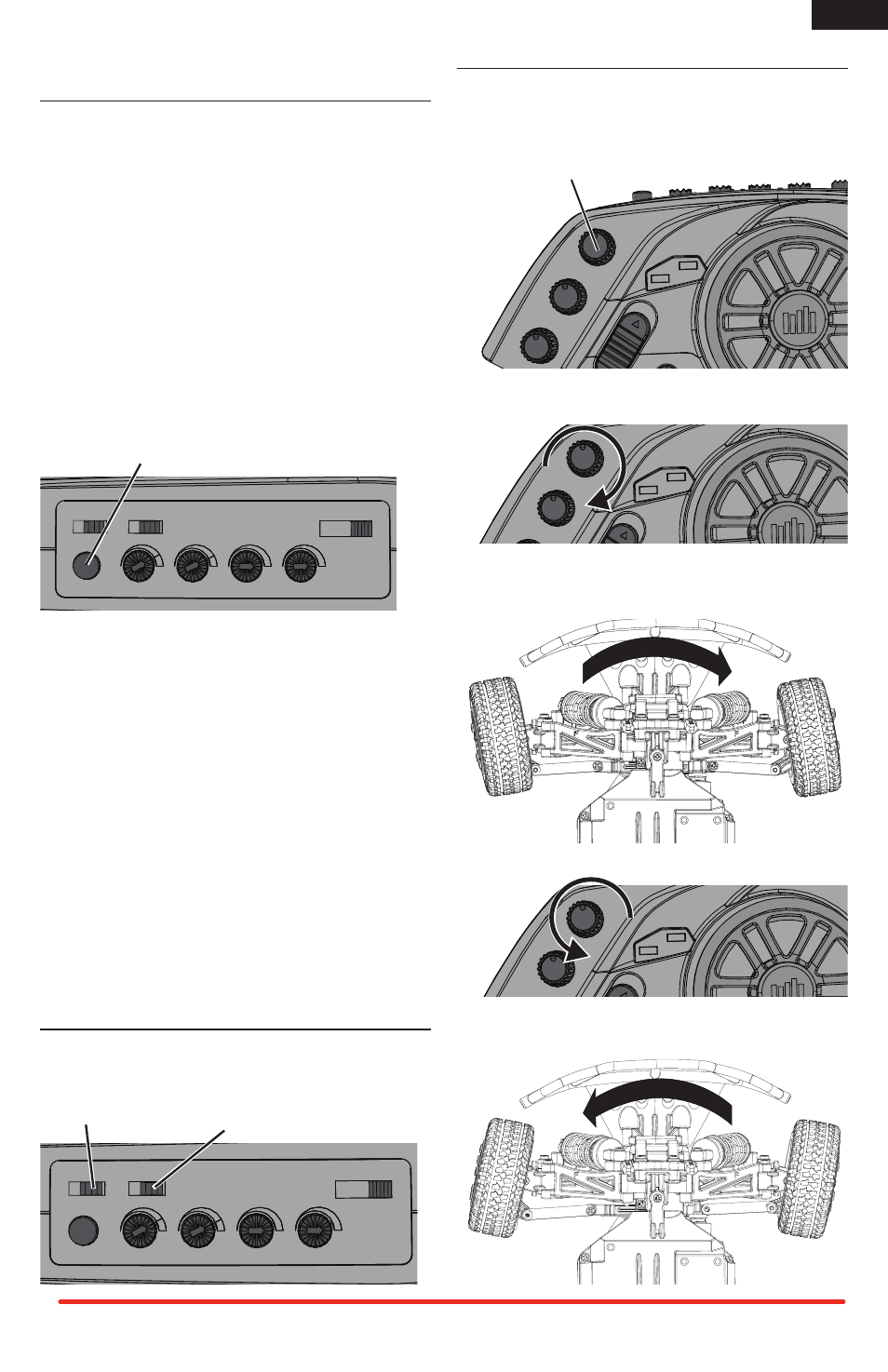

Bind Button
ST-L ST-R TH-F TH-B BIND
ST TH
150% 150%
TH LIMIT
N R N R
L M H
5. Release the bind button after the red LED on the DX2L
flashes.
6. Continue holding the failsafe positions until the receiver
LED is solid.
7. The LED on the receiver will glow solid when the
transmitter and receiver are bound.
8. Remove the bind plug from the receiver and store it in a
convenient place.
You must rebind the transmitter and receiver when:
• Different failsafe positions are desired. For example, when
throttle or steering reversing has been changed.
• Changing receiver types. For example, changing from a
DSM receiver to a DSM2 or Marine receiver.
• Binding the receiver to a different transmitter.
REVERSING ThE SERVO DIRECTIONS
If the steering or throttle channel responds in the opposite
direction, reverse the channel on the transmitter.
Reverse Switch
Steering Reverse Switch
Throttle
ST-L ST-R TH-F TH-B BIND
ST TH
150% 150%
TH LIMIT
N R N R L M H
ADJUSTING ThE STEERING TRIM
The steering trim dial is used to adjust the steering trim
when the wheel is centered. Rotating the dial changes the
steering trim (the steering at rest position). Normally, the
steering trim is adjusted until the vehicle tracks straight.
ST. TRIM
TH. TRIM
MIN MAX
ST. D/R
Steering Trim Dial
ST. TRIM
TH. TRIM
MIN MAX
ST. D/R
As you adjust steering trim to the right, the wheels move
to the right.
ST. TRIM
TH. TRIM
MIN MAX
ST. D/R
As you adjust steering trim to the left, the wheels move
to the left.
