Range Testing
Before each flying session and especially with a new model, it is important to perform a range check.

All Spektrum aircraft transmitters incorporate a range testing system which, when activated, reduces

the output power, allowing a range check.

1. With the model restrained on the ground, stand 30 paces (approx. 90 feet/28 meters) away from the

model.

2. Face the model with the transmitter in your normal flying position and place your transmitter into

range check mode.

3. You should have total control of the model with the button depressed at 30 paces (90 feet/28 meters).

4. If control issues exist, call the Spektrum Service Center in the U.S. at 1-877-504-0233 for further

assistance. In the UK or Germany use one of the following addresses.

European Union: +49 4121 46199 66 (Deutschland)

or email [email protected]

+44 (0) 1279 641 097 (United Kingdom)

or email [email protected]

Receiver Power System Requirements

Inadequate power systems that are unable to provide the necessary minimum voltage to the receiver

during flight have become the number one cause of in-flight failures. Some of the power system

components that affect the ability to properly deliver adequate power include:
•Receiverbatterypack(numberofcells,capacity,celltype,stateofcharge)
•TheESC’scapabilitytodelivercurrenttothereceiverinelectricaircraft
•Theswitchharness,batteryleads,servoleads,regulatorsetc.
The AR6100/AR6100e has a minimum operational voltage of 3.5 volts; it is highly recommended the

power system be tested per the guidelines below.
Recommended Power System Test Guidelines
If a questionable power system is being used (e.g. small or old battery, ESC that may not have a BEC

that will support high current draw, etc.), it is recommended that a voltmeter be used to perform the

following tests.
Note: The Hangar 9

®

Digital Servo & Rx Current Meter (HAN172) or the Spektrum Flight Log

(SPM9540) are the perfect tools to perform the test below.

Plug the voltmeter into an open channel port in the receiver and with the system on, load the control

surfaces (apply pressure with your hand) while monitoring the voltage at the receiver. The voltage

should remain above 4.8 volts even when all servos are heavily loaded.

Note: The latest generations of Nickel-Metal Hydride batteries incorporate a new chemistry

mandated to be more environmentally friendly. These batteries when charged with peak detection

fast chargers have tendencies to false peak (not fully charge) repeatedly. These include all brands

of NiMH batteries. If using NiMH packs, be especially cautious when charging, making absolutely

sure that the battery is fully charged. It is recommended to use a charger that can display total charge

capacity. Note the number of mAh put into a discharged pack to verify it has been charged to full

capacity.

QuickConnect

With Brownout Detection

Your AR6100/AR6100e features QuickConnect with Brownout Detection.

•Shouldaninterruptionofpoweroccur(brownout),thesystemwillreconnectimmediatelywhen

power is restored (QuickConnect).

•TheLEDonthereceiverwillflashslowlyindicatingapowerinterruption(brownout)hasoccurred.

•Brownoutscanbecausedbyaninadequatepowersupply(weakbatteryorregulator),aloose

connector, a bad switch, an inadequate BEC when using an electronic speed controller, etc.

•Brownoutsoccurwhenthereceivervoltagedropsbelow3.5voltsthusinterruptingcontrolasthe

servos and receiver require a minimum of 3.5 volts to operate.

How QuickConnect With Brownout Detection Works
•Whenthereceivervoltagedropsbelow3.5voltsthesystemdropsout(ceasestooperate).

•Whenpowerisrestoredthereceiverimmediatelyattemptstoreconnecttothelasttwofrequencies

that it was connected to.

•Ifthetwofrequenciesarepresent(thetransmitterwaslefton)thesystemreconnectstypicallyabout

4/100 of a second.

QuickConnect with Brownout Detection is designed to allow you to fly safely through most short

duration power interruptions, however, the root cause of these interruptions must be corrected before

the next flight to prevent catastrophic safety issues.
Note: If a brownout occurs in-flight it is vital that the cause of the brownout be determined and

corrected.

Tips on Using Spektrum 2.4GHz
ModelMatch

Some Spektrum and JR transmitters offer a patent-pending feature called ModelMatch. ModelMatch

prevents the possibility of operating a model using the wrong model memory, potentially preventing

a crash. With ModelMatch each model memory has its own unique code (GUID) and during the

binding process the code is programmed into the receiver. Later, when the system is turned on, the

receiver will only connect to the transmitter if the corresponding model memory is programmed on

screen.

Note: If at any time you turn on the system and it fails to connect, check to be sure the correct

model memory is selected in the transmitter. Please note that the DX5e and Aircraft Modules do

not have ModelMatch.

While your DSM equipped 2.4GHz system is intuitive to operate, functioning nearly identically to

72MHz systems, following are a few common questions from customers:
1. Q: Which do I turn on first, the transmitter or the receiver?

A: If the receiver is turned off first —all servos except for the throttle will be driven to their preset

failsafe positions set during binding. At this time the throttle channel doesn’t output a pulse

position preventing the arming of electronic speed controllers, or in the case of an engine

powered aircraft, the throttle servo remains in its current position. When the transmitter is

then turned on the transmitter scans the 2.4GHz band and acquires two open channels. Then

the receiver that was previously bound to the transmitter scans the band and finds the GUID

(Globally Unique Identifier code) stored during binding. The system then connects and

operates normally.

If the transmitter is turned on first—the transmitter scans the 2.4GHz band and acquires two

open channels. When the receiver is then turned on for a short period (the time it takes to

connect) all servos except for the throttle are driven to their preset failsafe positions while the

throttle has no output pulse. The receiver scans the 2.4GHz band looking for the previously

stored GUID and when it locates the specific GUID code and confirms uncorrupted repeatable

packet information, the system connects and normal operation takes place. Typically this takes

2 to 6 seconds.

2. Q: Sometimes the system takes longer to connect and sometimes it doesn’t connect

at all?

A: In order for the system to connect (after the receiver is bound) the receiver must receive a large

number of consecutive uninterrupted perfect packets from the transmitter. This process is

purposely critical of the environment ensuring that it’s safe to fly when the system does connect.

If the transmitter is too close to the receiver (less than 4 ft) or if the transmitter is located near

metal objects (metal TX case, the bed of a truck, the top of a metal work bench, etc.) connection

will take longer and in some cases connection will not occur as the system is receiving reflected

2.4GHz energy from itself and is interpreting this as unfriendly noise. Moving the system away

from metal objects or moving the transmitter away from the receiver and powering the system

again will cause a connection to occur. This only happens during the initial connection. Once

connected the system is locked-in and should a loss of signal occur (failsafe) the system

connects immediately (4ms) when signal is regained.

3. Q: I’ve heard that the DSM system is less tolerant of low voltage. Is that correct?

A: All DSM receivers have an operational voltage range of 3.5 to 9 volts. With most systems this is

not a problem as in fact most servos cease to operate at around 3.8 volts. When using multiple

high-current draw servos with a single or inadequate battery/power source, heavy momentary

loads can cause the voltage to dip below this 3.5-volt threshold thus causing the entire system

(servos and receiver) to brown out. When the voltage drops below the low voltage threshold

(3.5 volts), the DSM receiver must reboot (go through the startup process of scanning the band

and finding the transmitter) and this can take several seconds. Please read the receiver power

requirement section as this explains how to test for and prevent this occurrence.

4. Q: Sometimes my receiver loses its bind and won’t connect requiring rebinding.

What happens if the bind is lost in flight?

A: The receiver will never lose its bind unless it’s instructed to. It’s important to understand that

during the binding process the receiver not only learns the GUID (code) of the transmitter but

the transmitter learns and stores the type of receiver that it’s bound to. If the transmitter is placed

into bind mode, the transmitter looks for the binding protocol signal from a receiver. If no signal

is present, the transmitter no longer has the correct information to connect to a specific receiver

and in essence the transmitter has been “unbound” from the receiver. We’ve had several DX7

customers that use transmitter stands or trays that unknowingly depress the bind button and the

system is then turned on losing the necessary information to allow the connection to take place.

We’ve also had DX7 customers that didn’t fully understand the range test process and pushed the

bind button before turning on the transmitter also causing the system to “lose its bind.”

Pull and hold the Trainer Switch

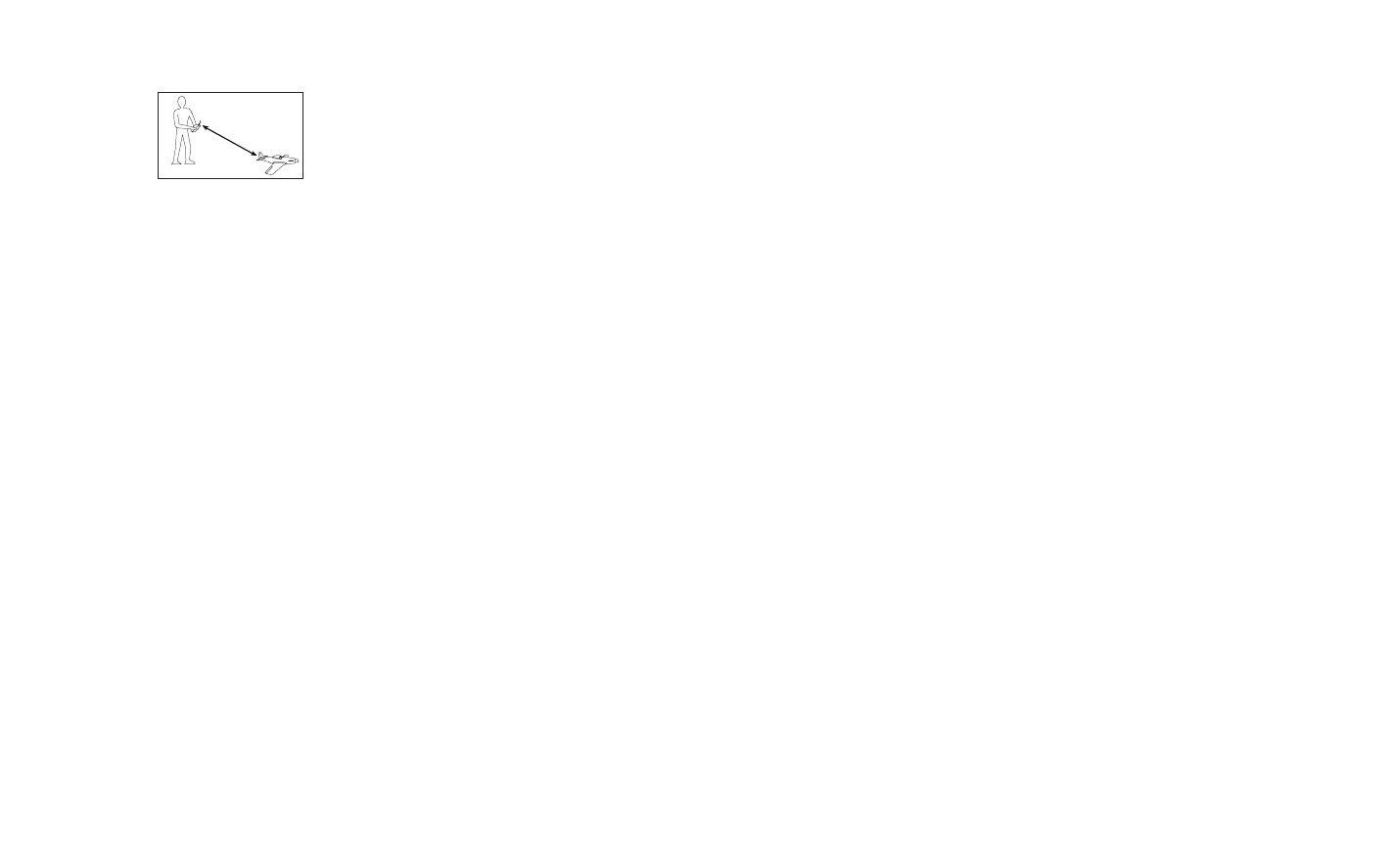

30 paces (90 feet/28 meters)
