OM-KPS/KLS-DS 15

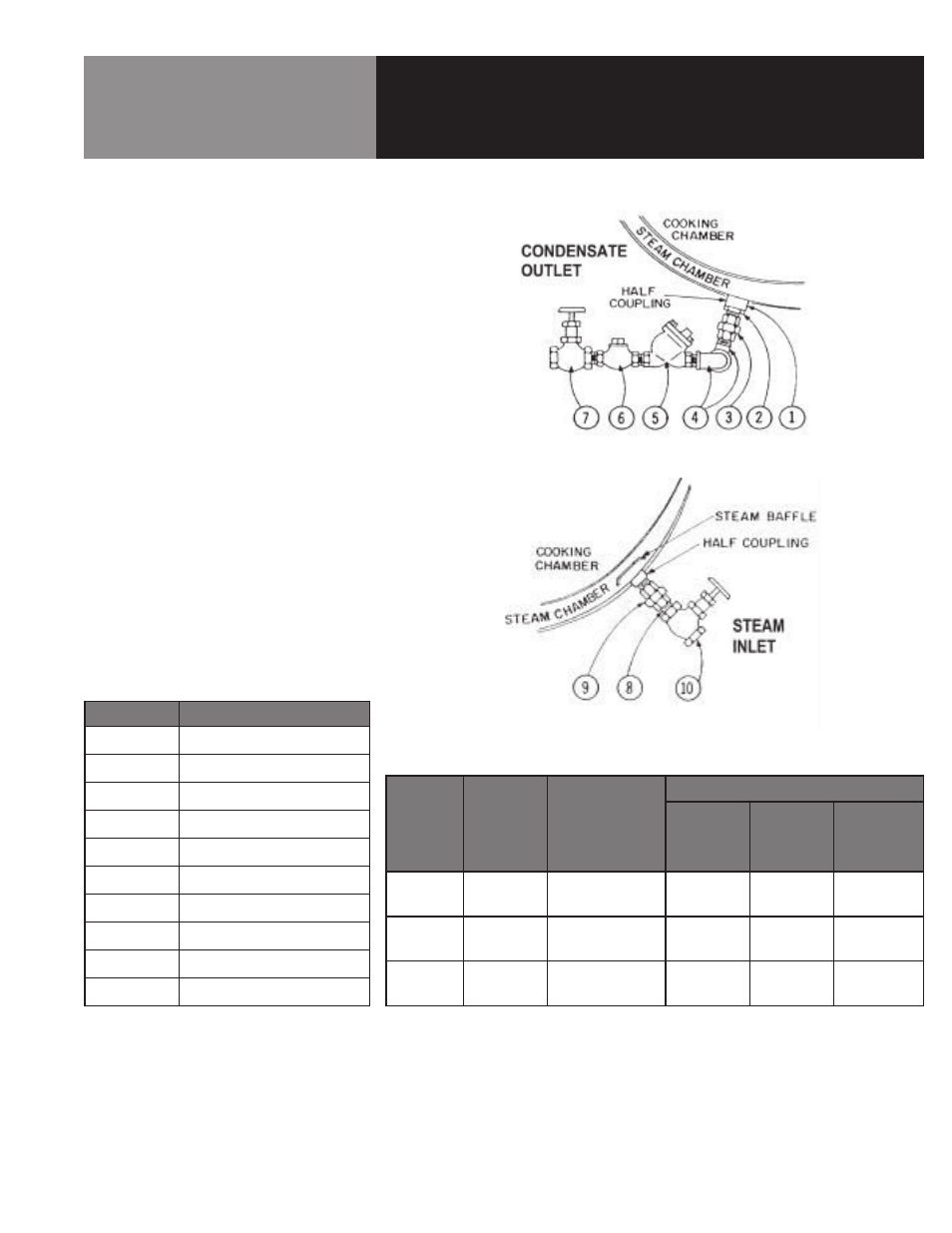

Piping Diagram*
Thermostatic Type Steam Trap Assembly
*All of the fittings illustrated are required for
proper and safer installation and operation,
and are NOT PROVIDED as standard with
the unit. Steam trap assemblies can be
purchased in two versions.
1. COMPLETELY PIPED — Complete,
preassembled, with nipples and fittings,
as shown in the diagram.
2. LOOSE — Unassembled, without nipples
and fittings, but includes steam trap,
check valve, globe valve and gate valve.
NOTE - All steam trap assemblies are shipped
in a separate container and are not mounted
on the kettle to prevent damage during
shipment. A steam pressure reducing valve
(PRV) is available at extra cost for installation
when steam pressure exceeds the kettle’s
maximum working pressure. It is to be
mounted on the steam inlet side, just before
the steam valve (globe valve), as close to the
kettle as possible.
Item No. Description
1 Bushing
2 Close Nipple
3 Female Union
4 Street Elbow
5 Thermostatic Steam Trap
6 Swing Check Valve
7 Gate Valve
8 Close Nipple
9 Female Union
10 Globe Valve
INLET
SIZE
OUTLET
SIZE
USED ON
PART NUMBER
STANDARD
FINISH
ROUGH
CHROME
PLATE
POLISHED
CHROME
PLATE
1/2" I.P.S. 1/2" I.P.S.
20DS-KLS
20DS-KPS
045171 059473 090530
3/4" I.P.S. 1/2" I.P.S.
40/60DS-KLS
40/60DS-KPS
041065 050948 040685
1" I.P.S. 3/4" I.P.S.
80/100DS-KLS
80/100DS-KPS
045171 048763 040686
