Parts List
To order parts, contact your authorized Service Agency. Supply the model designation, part
description, part number, quantity, and where applicable, voltage and phase.
Key Description Part #
1 ¼”-20 N.C. CAP NUT 005471
2 SPACER 012733
3 HANDLE (COVERS W/ACTUATOR) 047712
3 COVER ACTUATOR 120521
3 COVER HANDLE 120915
3 U-HANDLE 010245
4 KNOB (FRICTION) 010245
5 SPRING (28” & 30” COVERS) 012303
6 SPRING (32” & 36” COVERS) 012413
7 SPRING (38” & 42” COVERS) 012533
8 SPRING (44” & 48” COVERS) 012565
9 SPRING (50” COVERS) 012566
10
½”-20 N.F. X 1” LG HEX HD
CAPSCR.
002212
11 ½” BRASS WASHER 002213
12 ½”-20 N.F. JAM NUT 010668
13 ¾” I.P.S. STREET ELBOW 011004
14 #25-¾” SAFETY VALVE 011004
15 2” DRAW-OFF VALVE COMPLETE 009046
15 2” DRAW-OFF TUBE 038418
15 3” DRAW-OFF VALVE COMPLETE 012262
16 STEM FOR 2” VALVE 009048
16 STEM FOR 3” VALVE 001908
17 BONNET FOR 2” VALVE 009047
17 BONNET FOR 3” VALVE 003925
18 O-RING FOR 2” VALVES 009034
19 HEX NUT 2” VALVE 009354
19 HEX NUT 3” VALVE 003927
20 HANDLE FOR 2” VALVE 170061
20 HANDLE FOR 3” VALVE 012209
21 WING NUT FOR 1½” & 2” VALVES 009028
22
REMOVABLE STRAINER 9” DIA
¼” HOLES
009007
23
REMOVABLE STRAINER 9” DIA
1/8” HOLES
009040
24
REMOVABLE STRAINER 9” DIA
NO HOLES
009057
24 STRAINER, ¼” PER. 009986
24 STRAINER, VERTICAL 009987
25 R.H. COVER HINGE 002292
26 L.H. COVER HINGE 002293
27 R.H. HINGE HALF 012877
28 L.H. HINGE HALF 012878

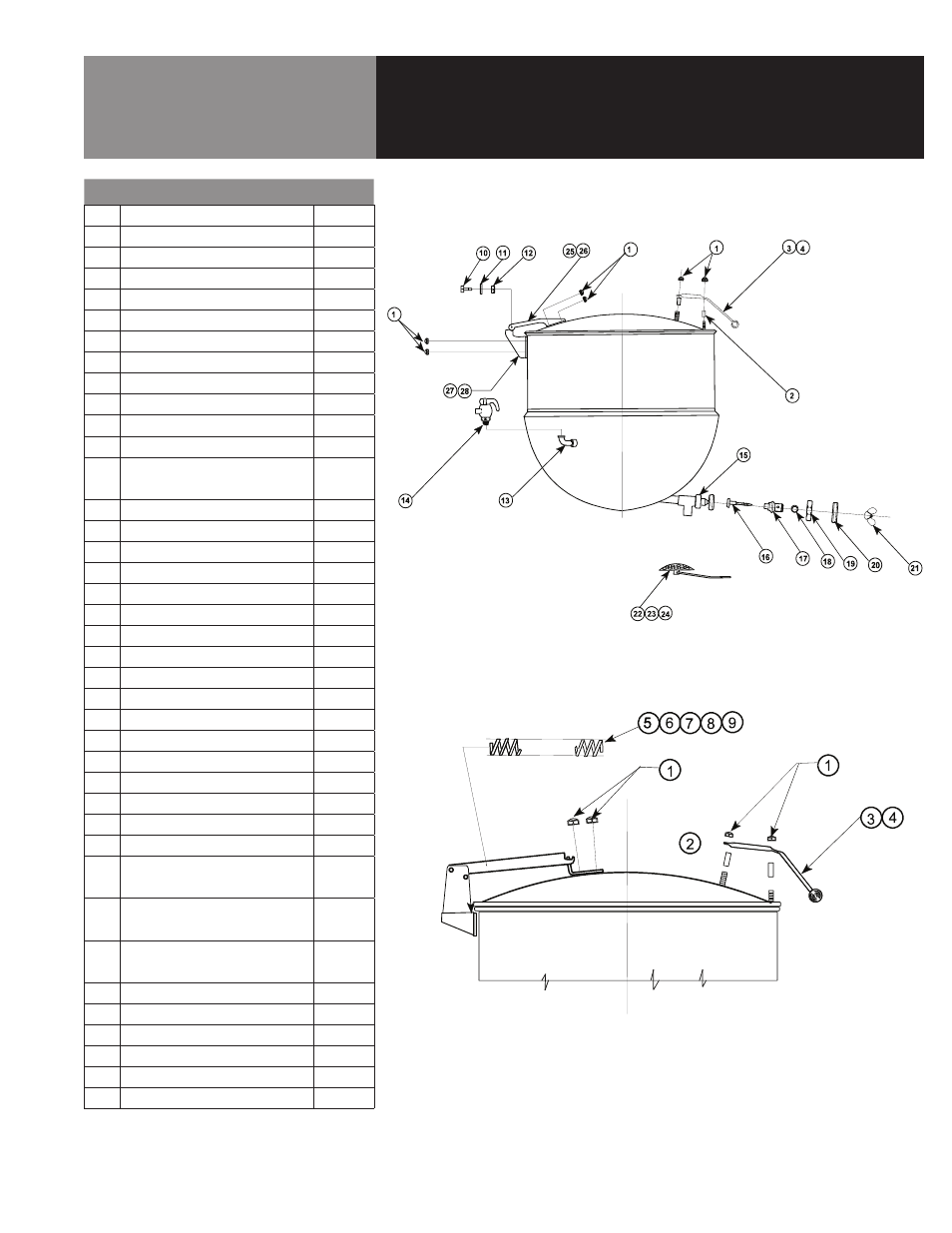

Models KPS & KLS, 10-40 Gallon Inclusive
Models KPS & KLS, 60+ Gallon Inclusive
