Operation

ssD solid state Digital control

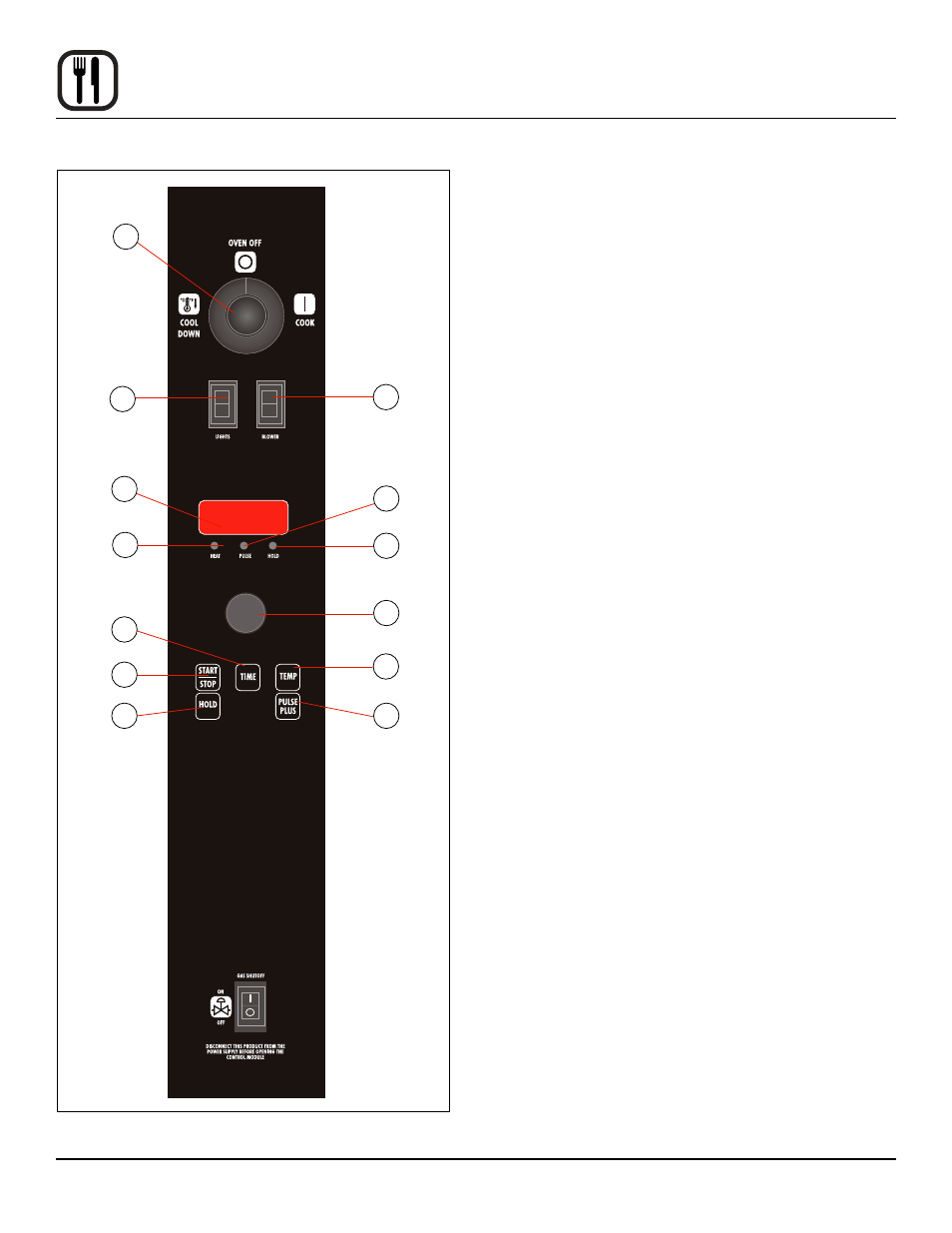

Figure 13

contRoL DescRiPtion
1. SELECTOR SWITCH - turns power to the oven on

or off. Allows selection of Cook or Cool Down Modes

and fan speed (if applicable).

2. BLOWER SWITCH - controls blower speed, either hi

or lo. Two speed not available in 50 Hz.

3. LIGHTS SWITCH - controls interior lights.
4. DISPLAY - displays time or temperature and other in-

formation related to oven function.

5. HEAT LAMP - lights when heater is on.
6. PULSE LAMP - lights when Pulsed Fan Mode is

turned on.

7. HOLD LAMP - lights when Hold Mode is turned on.
8. DIAL - used to enter set points in display
9. START/STOP KEY - starts or stops the timer.
10. TIME KEY - used to show time in the display.
11. TEMP KEY - used to show set temperature in the dis-

play.

NOTE: Actual temperature is shown while the

TEMP key is held down.

12. HOLD KEY - turns Hold Mode on or off.
13. PULSE KEY - turns Pulse Mode on or off.

PRoGRaMMinG
to set the cook temperature:
1. Press TEMP (11) key.
2. Rotate dial (8) to enter temperature.
to set the cook time:
1. Press TIME (10) key.
2. Rotate the dial (8) to enter time.

NOTE: Time is entered in hours : minutes or min-

utes : seconds.

to set the hold time:
1. Press HOLD key (12) to turn hold mode on.

NOTE: HOLD light is on.

2. Rotate dial (8) to enter the hold temperature.
3. Press START/STOP key (9)

60 HZ

only
