ANAPURNA XL²
OPERATOR MANUAL
A
B]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]
54
]
8/08/2008
]

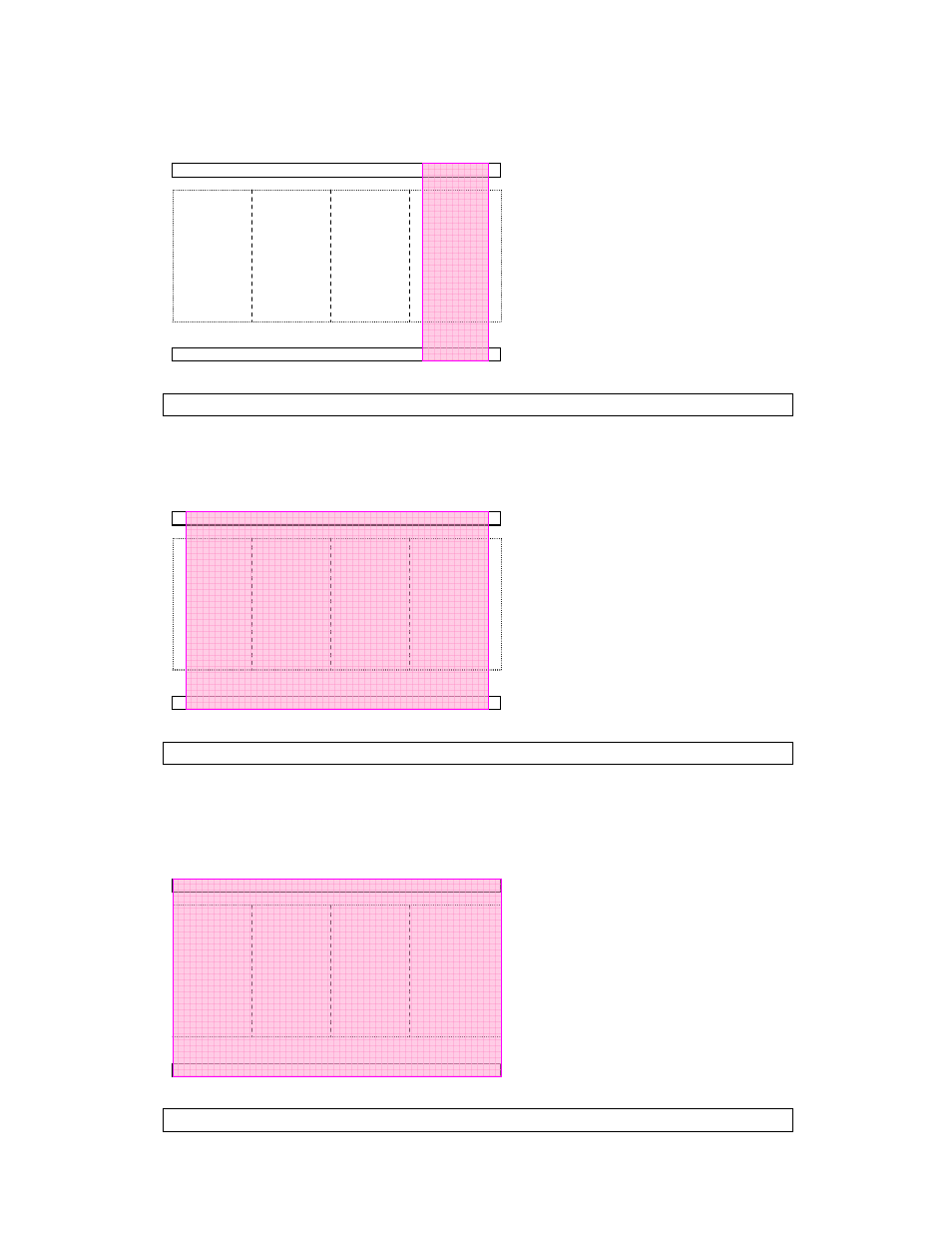

Media width = 50 cm (covers no compartment completely)
Valve Position:
V4=off
V3=off
V2=0°
V1=90°
Media width = 230 cm (covers 2 compartment completely)
Valve Position:
V4=90°
V3=20°
V2=20°
V1=90°
Media width = 250 cm (covers 4 compartment completely)
Valve Position:
V4=30°
V3=30°
V2=30°
V1=30°
V4
V3
V2
V1
Table
Rear roller
Front roller
MEDIA
V4
V3
V2
V1
Table
Rear roller
Front roller
MEDIA
V4
V3
V2
V1
Table
Rear roller
Front roller
MEDIA
