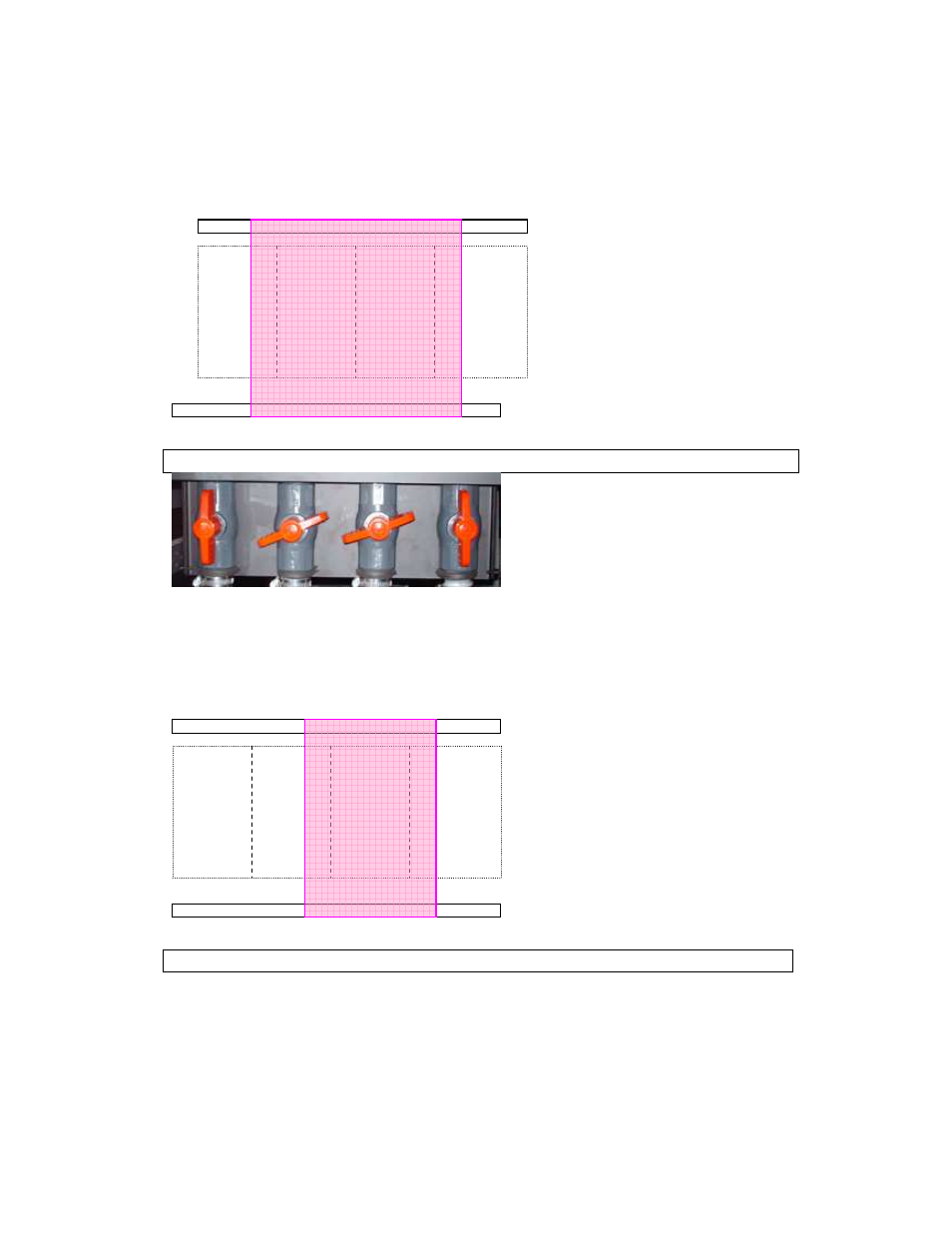

Some examples:
Media width = 152 cm (cover 2 compartments completely since 152 > 63.5+63.5)
Valve Position:
V4=90°
V3=20°
V2=20°
V1=90°
Media width = 90 cm (covers only 1 compartment completely)
Valve Position:
V4=0°
V3=90°
V2=20°
V1=90°
V4
V3
V2
V1
Table
Rear roller
Front roller
MEDIA
V4
V3
V2
V1
Table
Rear roller
Front roller
MEDIA
