AT-MC1x User Guide
9

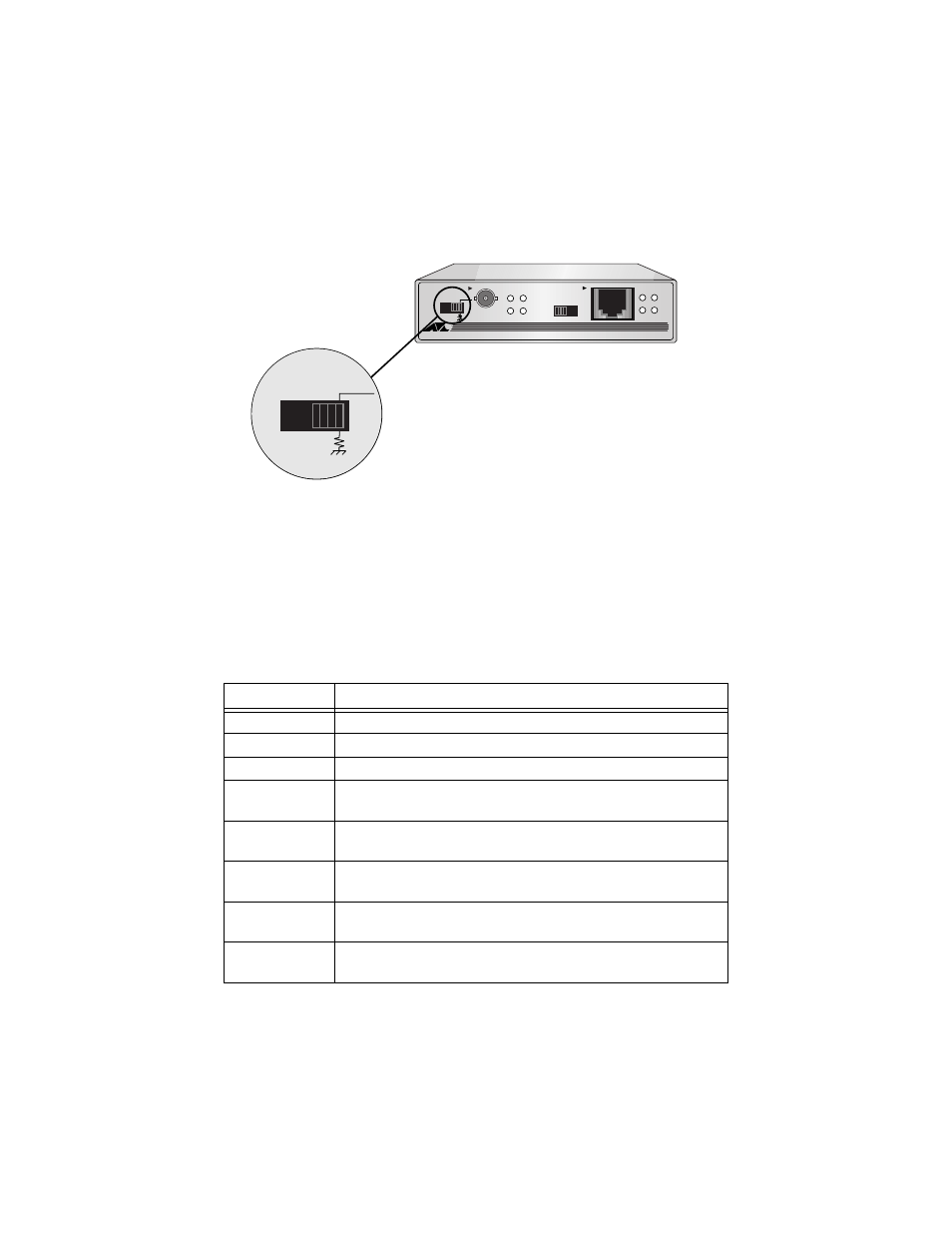

Figure 8: Internal Termination Switch
LEDs
6WDWXVý/('VýDUHýORFDWHGýRQýWKHýIURQWýSDQHOýQH[WýWRýHDFKýSRUWï
Table 2: Media Converter LEDs
LED Description
PWR Indicates power is applied
LNK Indicates link is established
REC Indicates valid data is being received
NML (fiber
models only) Indicates unit’s Fiber Link Test Switch is in normal operating
position (down) and not in Test position (up)
TX (thinnet
model only) Indicates data is being transmitted on the BNC port
RX (thinnet
model only) Indicates valid data is being received on the BNC port
ONLINE (thinnet
model only) Indicates the BNC port is connected to an active 10Base-2 segment
COL (thinnet
model only) Indicates the BNC port is sensing a collision signal
10Base2
MC15 ETHERNET MEDIA CONVERTER
MDI MDI-X
10Base-T
TX
RX
ONLINE
COL
RX
TX
PWR
LNK
TERMINATOR
O
F F
O
N
TERMINATOR
O
F
F
O
N
