ASUS P7P55-M 1-23
1.11 Connectors

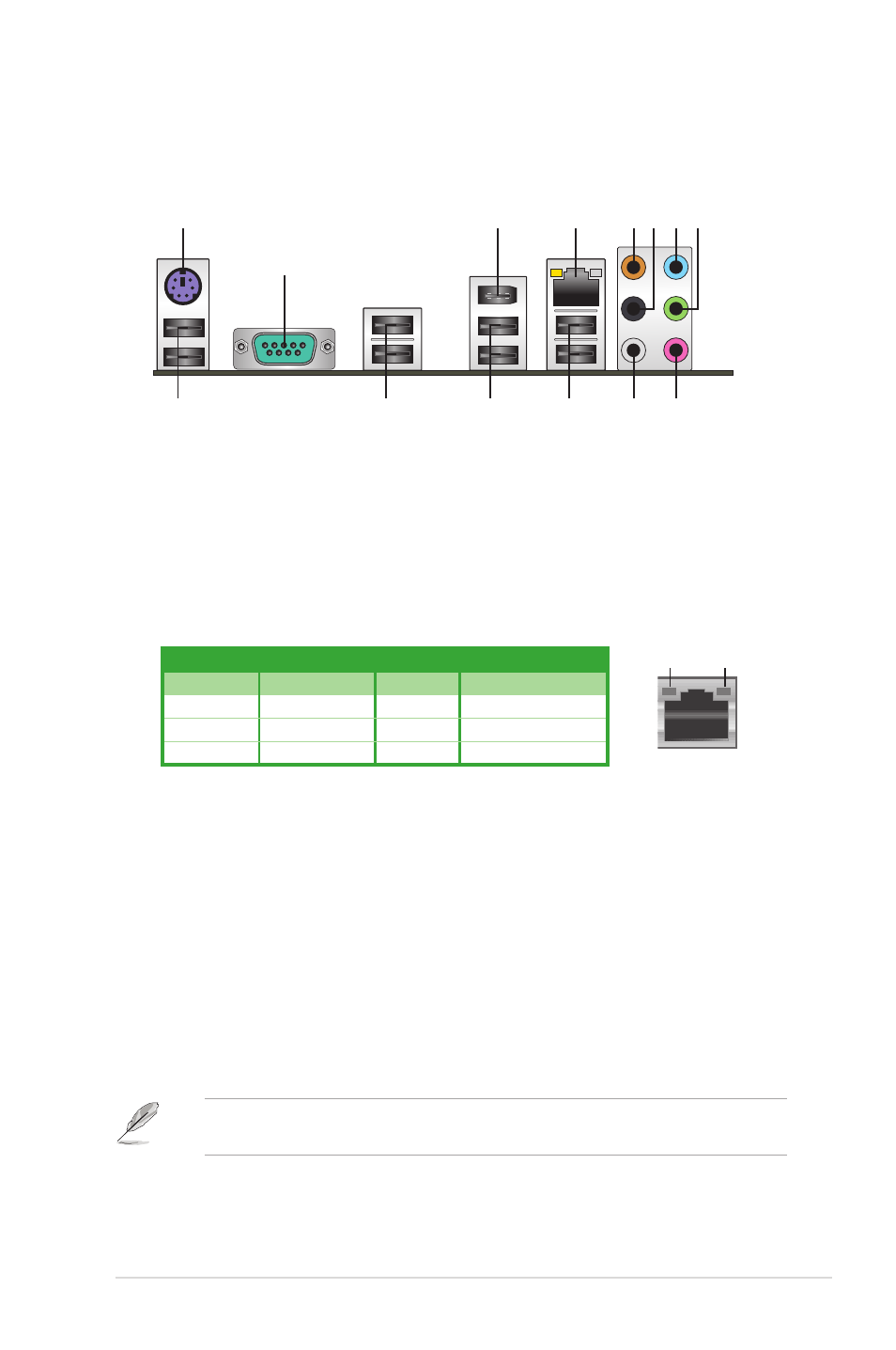

1.11.1 Rear panel connectors
4
11
2
13
3
12
1
14
5 6 7 8
9 10
1. PS/2 Keyboard / Mouse port (purple). This port is for a PS/2 keyboard / mouse.
2. Serial port. This 9-pin COM port is for serial devices.
3. IEEE1394 port. This 6-pin IEEE 1394a port provides high-speed connectivity for audio/
video devices, storage peripherals, PCs, or portable devices.
4. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
5. Center / Subwoofer port (orange). This port connects the center/subwoofer speakers.
6. Rear Speaker Out port (black). This port connects the rear speakers in a 4-channel,
6-channel, or 8-channel audio configuration.
7. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
8. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel, 6-
channel, and 8-channel configurations, the function of this port becomes Front Speaker
Out.
9. Microphone port (pink). This port connects a microphone.
10. Side Speaker Out port (gray). This port connects the side speaker in an 8-channel
audio configuration.
Refer to the audio configuration table on the next page for the function of the audio ports in
2, 4, 6, or 8-channel configuration.
LAN port
SPEED
LED
ACT/LINK
LED
