AR700 Series Router
14
Configuring with the CLI
Caution If another device on your network already uses the router’s default IP
address, 192.168.1.1, do not connect the router to the network until you have
changed the IP address of the router’s default VLAN by using the command line.
1. Initiate router start-up.

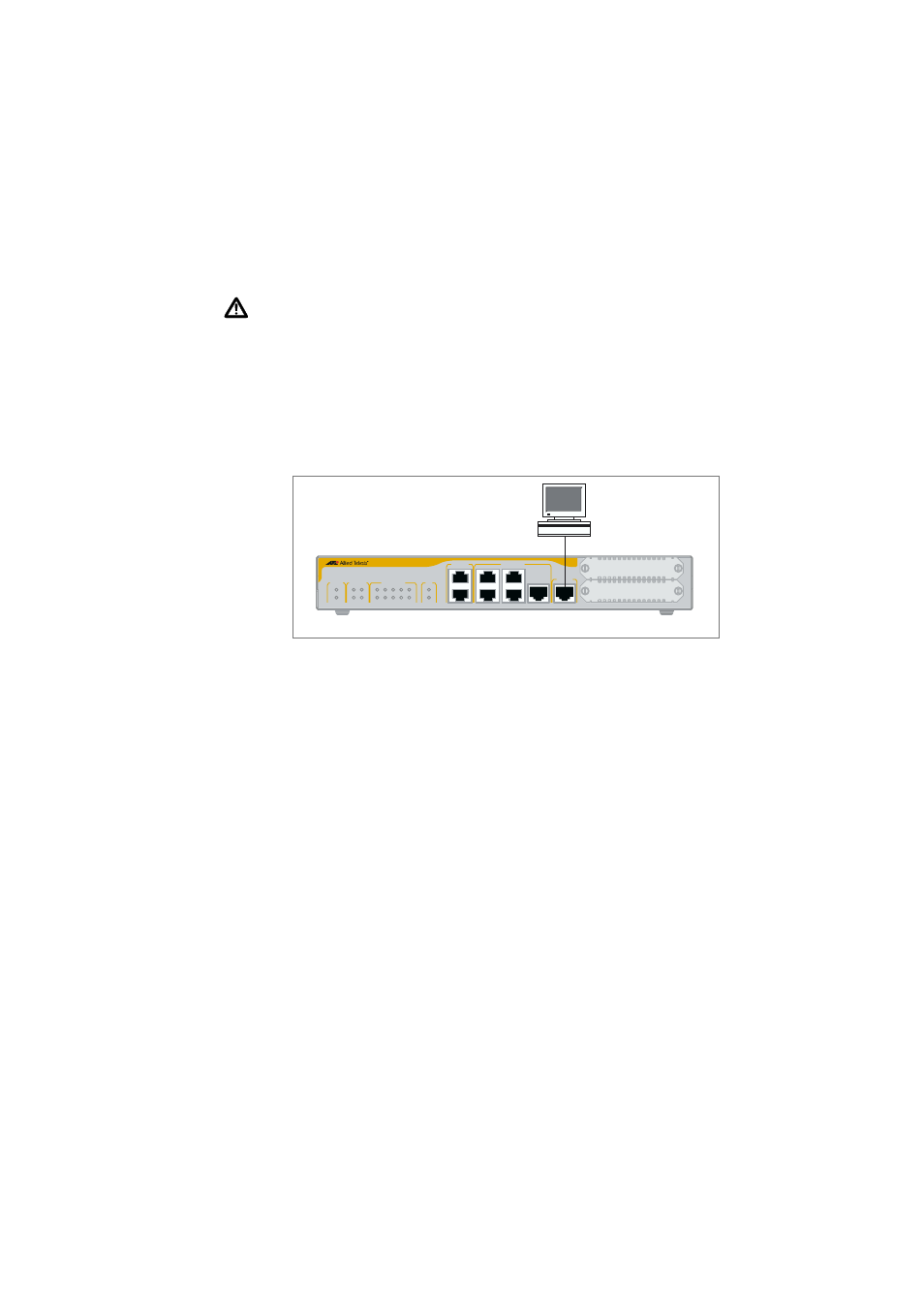

Using the terminal cable supplied, connect a VT100-compatible terminal, or
the COM port of a PC running a terminal emulation program such as
Windows Hyper Terminal, to the Console RS-232 (ASYN0) port on the
router’s front
panel.
Set the communication parameters on your terminal or terminal emulation
program to:
• Baud rate: 9600
• Data bits: 8
• Parity: None
• Stop bits: 1
• Flow control: Hardware
See the AR700 Series Router Hardware Reference for more information on
configuring emulation software.
0
1
1
2
3 5 ASYN0 PIC BAYS
PIC0
PIC1
4
SYS
PWR ETHERNET STATUS
0 1
L/A
D/C
L/A
D/C
1 2 3 4 5 0
1 SWITCH PORTS PIC
ETHERNET
CONSOLE
SWITCH PORTS AR750S Secure VPN Router
Asyn0 Port
PC
AR700 Series Router
