Installing the switch in a rack – Allied Telesis AT-GS900/24 User Manual
Page 32

Chapter 2: Installation
32
Installing the Switch in a Rack
Perform the following procedure to install the switch in a standard 19-inch
rack. If you are not installing the switch in a rack, go to the next procedure.
1. Place the unit upside down on a level, secure surface.
2. Using a flat-head screwdriver, remove the self-adhesive rubber feet
from the bottom of the switch, as shown in Figure 9.

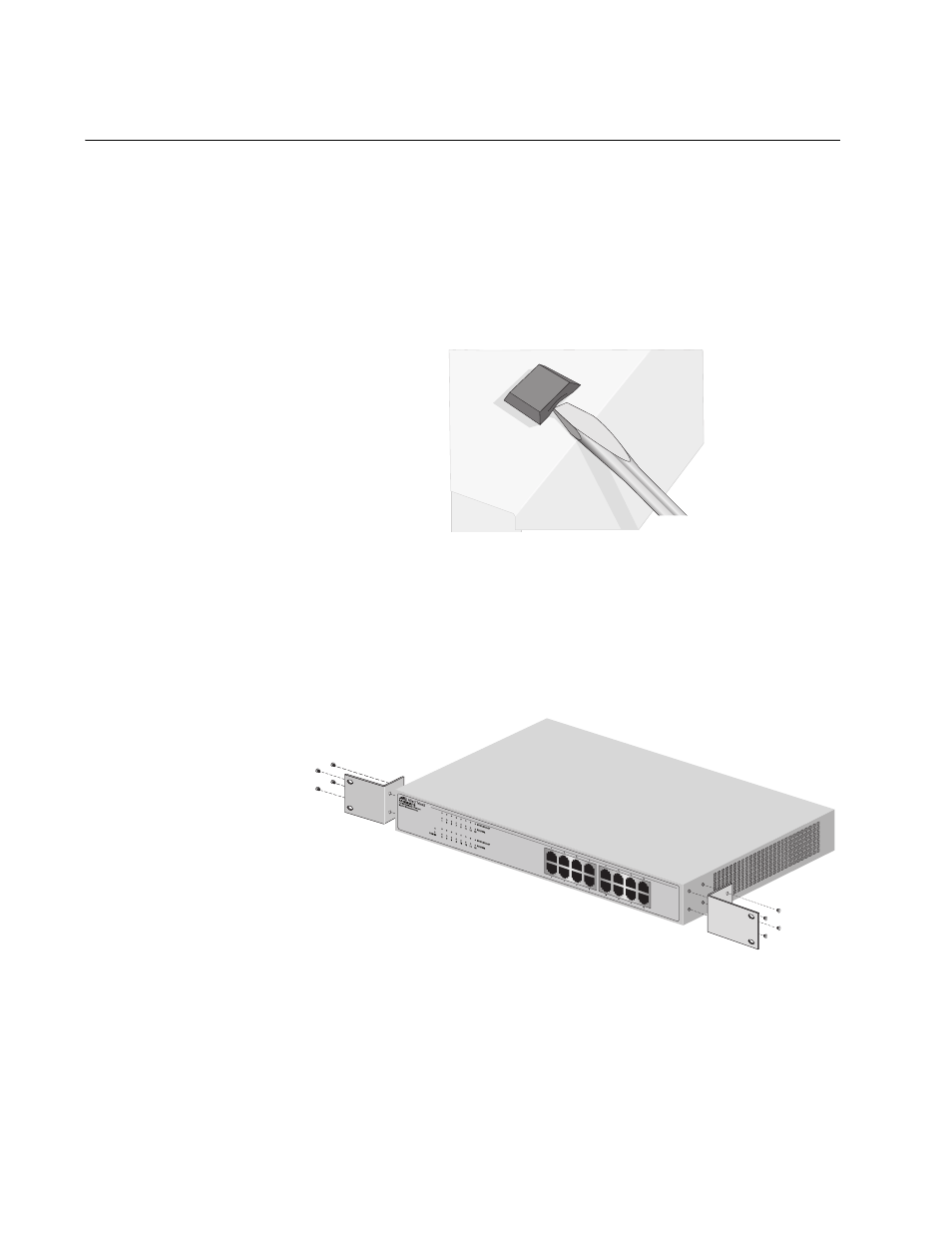

Figure 9. Removing the Feet
3. Turn the switch over.
4. Attach the two rackmounting brackets (provided) to the sides of the
switch using the eight flathead Phillips screws (provided), as illustrated
in Figure 10.
Figure 10. Attaching Rackmounting Brackets
605
