Allied Telesis Removable Power Supply and Fan User Manual
Page 12
Installation Guide
11
Connecting a PWR01 or PWR02
1.
Plug the supplied AC power cord into the power inlet on the PSU and
attach the retaining clip.
2.
Connect the power cord to the main power source.
3.
The PSU LED on the front panel of the switch lights green. If the LED does
not light, refer to the Hardware Reference for troubleshooting information.
Connecting a PWR05 (AC version only)
The DC earthing connection is not necessary for the SwitchBlade x908 when
using AC PSUs because the chassis is grounded through the power cords.
1.

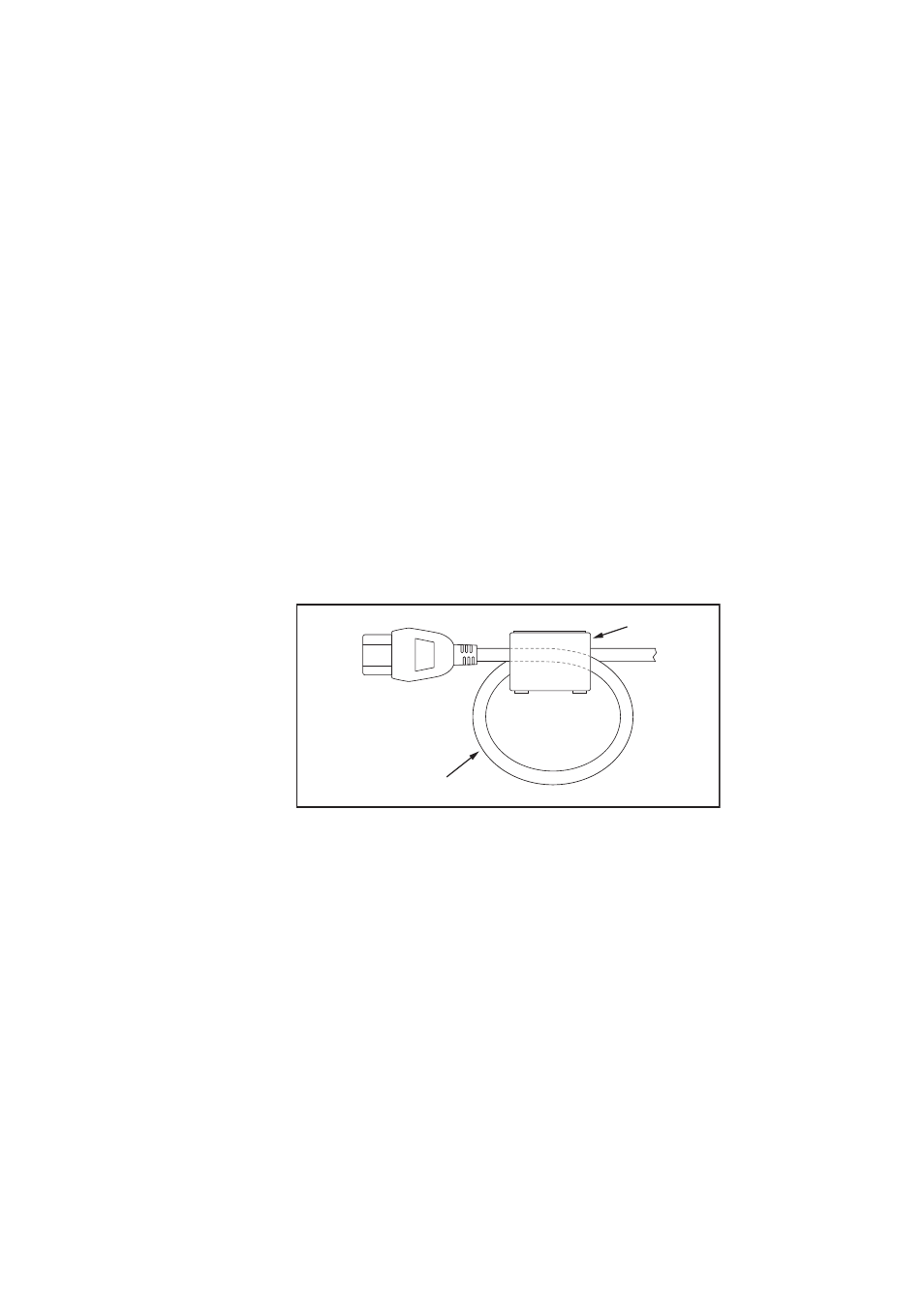

Form a loop in the supplied AC power cord at the PSU end and clip the
ferrite core over the looped cord, as shown in the following illustration.
This keeps the ferrite core in its correct position, close to the PSU.
Looped power cord
Ferrite core
