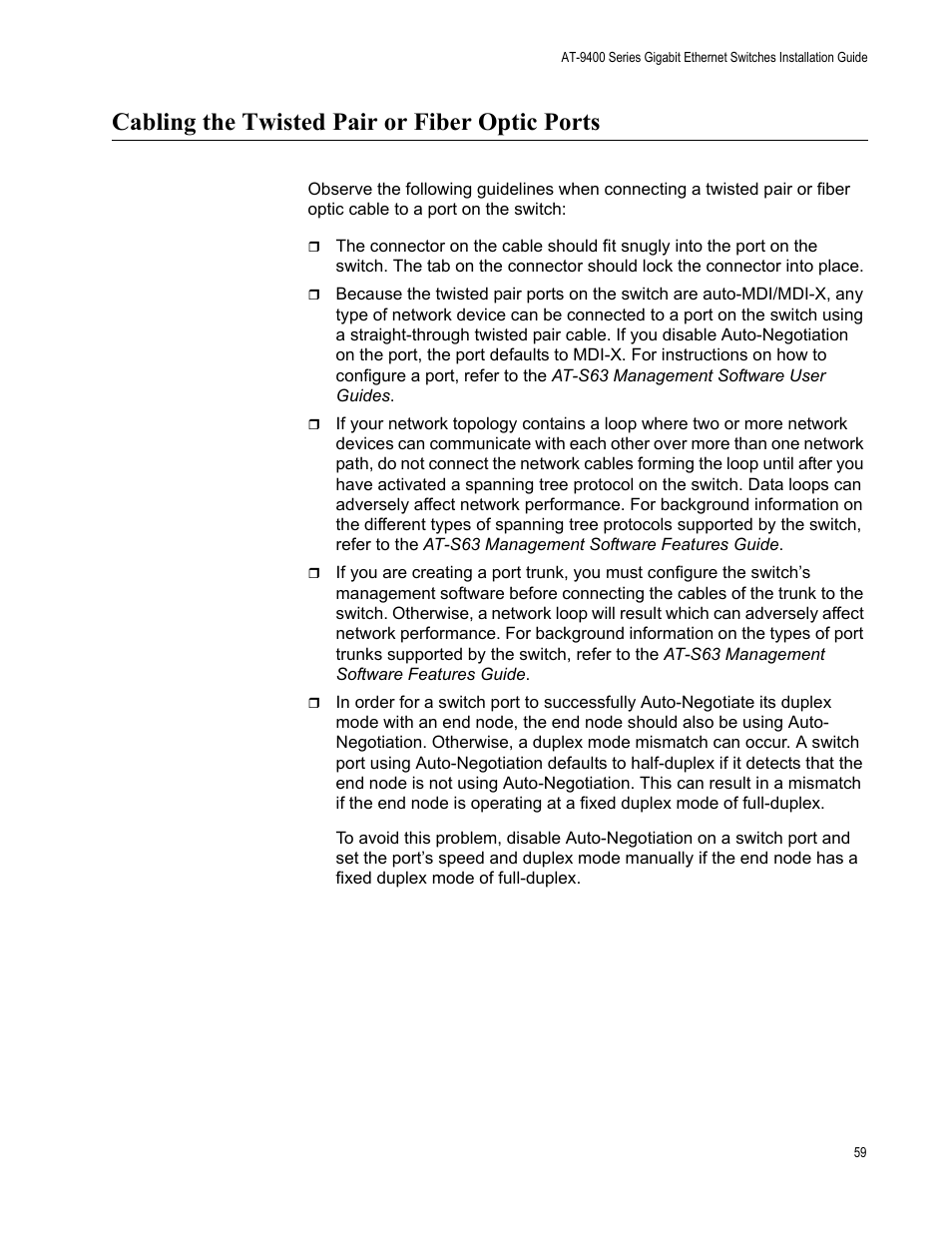

Cabling the twisted pair or fiber optic ports – Allied Telesis AT-9448Ts/XP (Basic Layer 3) User Manual

Page 59

Cabling the twisted pair or fiber optic ports | Allied Telesis AT-9448Ts/XP (Basic Layer 3) User Manual | Page 59 / 82

Cabling the twisted pair or fiber optic ports | Allied Telesis AT-9448Ts/XP (Basic Layer 3) User Manual | Page 59 / 82

This manual is related to the following products:

AT-9448T/SP (Basic Layer 3) AT-9424Ts/XP (Basic Layer 3) AT-9424Ts (Basic Layer 3) AT-9424T/POE (Basic Layer 3) AT-9424T (Basic Layer 3) AT-9424T/SP (Layer 2+) AT-9424T/GB (Layer 2+) AT-9408LC/SP (Layer 2+)
