SPECIAL APPLICATION
400-0210-001 4

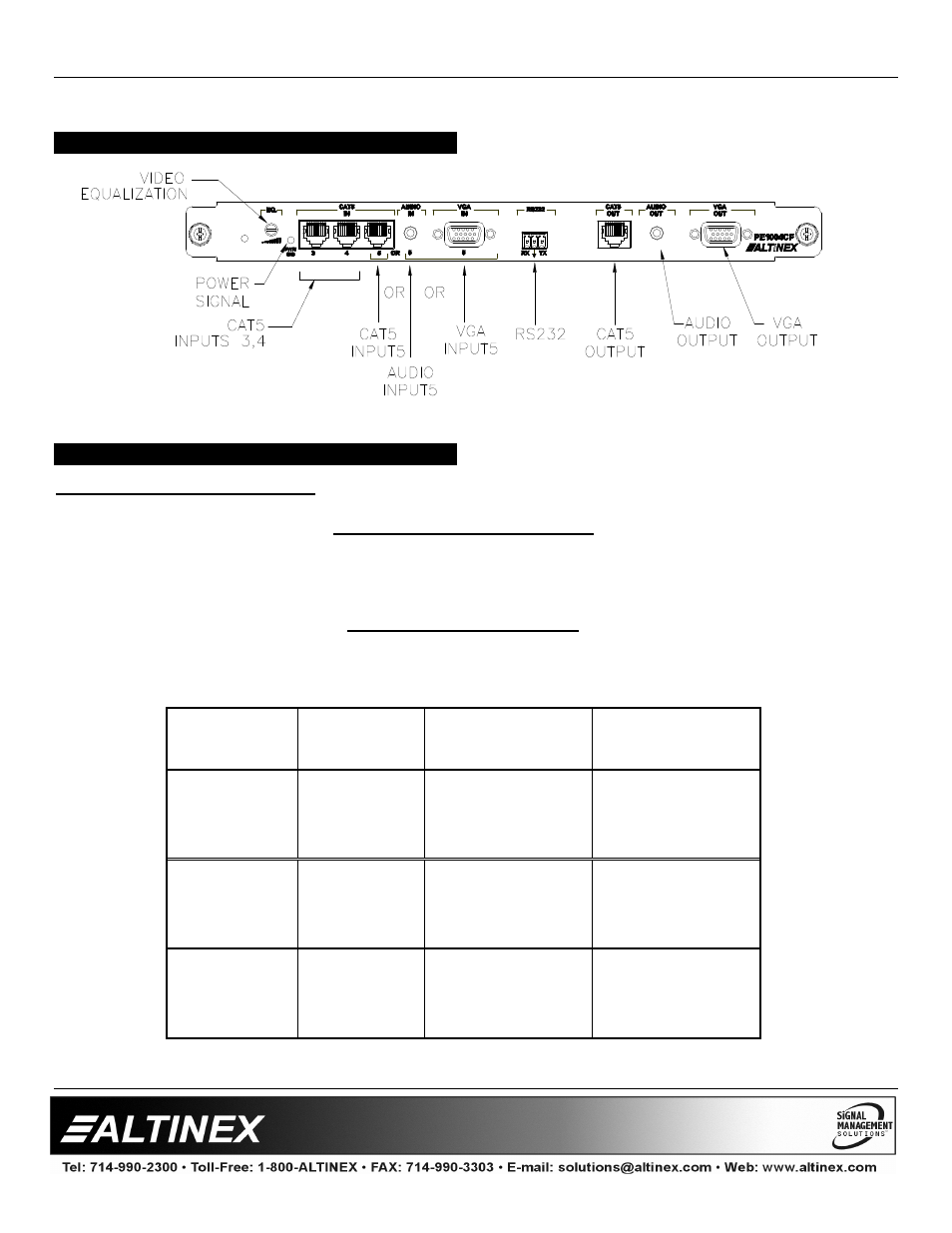

DESCRIPTION OF PE1004CF 4
APPLICATION DIAGRAMS 5
DIAGRAM 1: INPUT SELECTION
AUTOMATIC INPUT SELECTION
Selecting plasma Input 3 displays PE1004CF CAT-5 #1 Input image on the plasma Input 3.
Selecting plasma Input 4 displays PE1004CF CAT-5 #2 Input image on the plasma Input 4.
Selecting plasma Input 5 displays PE1004CF CAT-5 #3 Input image on the plasma Input 5.
MANUAL INPUT SELECTION
In order to force an input on the PE1004CF to a specific expansion input on the plasma
monitor, it is necessary to select the desired plasma monitor input number first. Then, use the
RS-232 ASCII command, [IN], to switch the PE1004CF to its desired input.
View Source
From
PE1004CF
On Plasma
Input No.
Step 1.
Select Plasma Input
Step 2.
Send to PE1004CF
CAT-5 Input 1 3 3 [IN1]
CAT-5 Input 2 3 3 [IN2]
CAT-5 Input 3 3 3 [IN3]
VGA 3 3 [IN4]
CAT-5 Input 1 4 4 [IN1]
CAT-5 Input 2 4 4 [IN2]
CAT-5 Input 3 4 4 [IN3]
VGA 4 4 [IN4]
CAT-5 Input 1 5 5 [IN1]
CAT-5 Input 2 5 5 [IN2]
CAT-5 Input 3 5 5 [IN3]
VGA 5 5 [IN4]
