DJ Scan 250HP™
Master/Slave Settings
DJ Scan 250HP™
DMX Traits
©
American DJ Supply
®
- www.americandj.com - DJ Scan 250HP™ User Manual Page 14
©
American DJ Supply
®
- www.americandj.com - DJ Scan 250HP™ User Manual Page 13
Channel
Value
Function
1 0 - 255 PAN
2 0 - 255 TILT
3 0 - 139 COLOR
0 - 28 LAMP OFF
29 - 57 WHITE
58 - 86 RED
87 - 115 BLUE
116 - 144 GREEN
145 - 173 YELLOW
174 - 202 ORANGE
203 - 231 PINK
232 - 255 PURPLE
4 GOBO
0 - 7 SPOT
8 - 21 SPOT SHAKE
22 - 29 GOBO 1 (metal)
30 - 43 GOBO 1 SHAKE
44 - 51 GOBO 2 (metal)
52 - 65 GOBO 2 SHAKE
66 - 73 GOBO 3 (dichroic)
74 - 87 GOBO 3 SHAKE
88 - 95 GOBO 4 (metal)
96 - 109 GOBO 4 SHAKE
110 - 117 GOBO 5 (metal)
118 - 131 GOBO 5 SHAKE
132 - 139 GOBO 6 (metal)
140 - 153 GOBO 6 SHAKE
154 - 161 GOBO 7 (metal)
162 - 175 GOBO 7 SHAKE
176 - 183 GOBO 8 (metal)
184 - 197 GOBO 8 SHAKE
198 - 205 GOBO 9 (metal)
206 - 219 GOBO 9 SHAKE
220 - 227 GOBO 10 (metal)
228 - 241 GOBO 10 SHAKE
242 - 249 BLACK OUT
250 - 255 BLACK OUT SHAKE

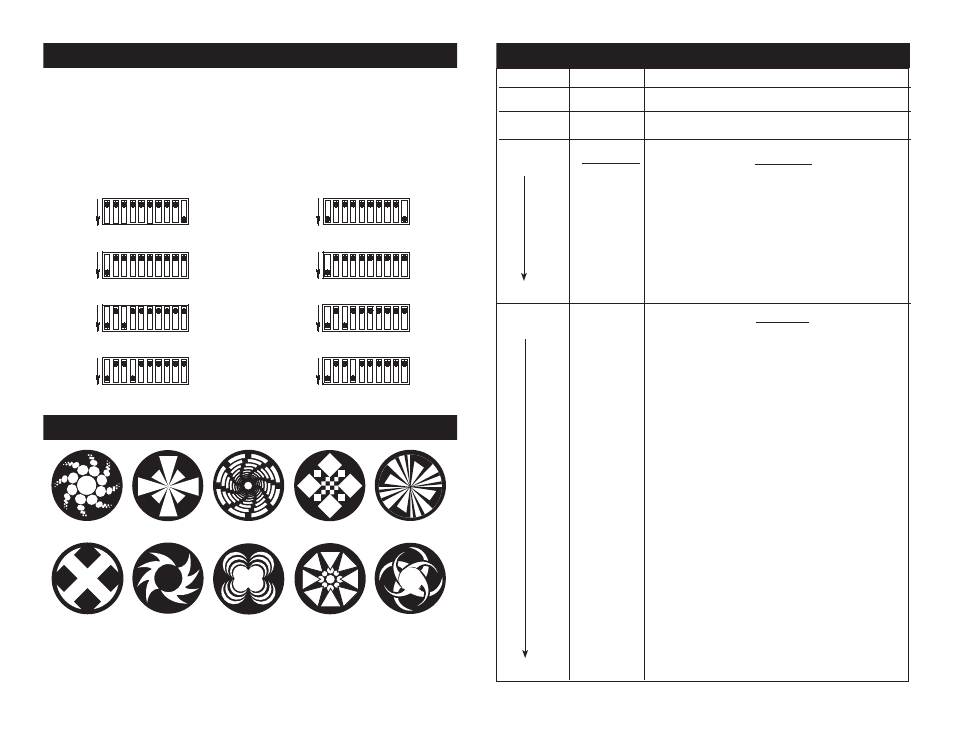

The following details the proper dipswitch settings for the narrow and
wide Master-Slave sound active programs. Please follow these setting
when running four units in a Master-Slave configuration.
DJ Scan 250HP™
Gobo Layout
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 8
Gobo 7
Gobo 6
Gobo 9
Gobo 10
P rogram2
Master/S lave C hart
P rogram1
Master/S lave C hart
ON
1 2 3
6
5
4
9
7 8
10
3
3
ON
1 2
ON
1 2
Head 4
6
4 5
7 8
10
9
6
Head 3
4 5
8
7
Head 2
10
9
3
Master-Head 1
ON
1 2
6
4 5
7 8
10
9
Master-Head 1
Head 2
5
Head 3
5
5
ON
ON
2
1
3 4
2
1
3 4
ON
4
3
2
1
10
10
6 7
9
8
6 7
9
8
10
8
7
9
6
5
ON
2
1
3 4
10
6 7
9
8
Head 4
Narrow Program
Wide Program
