Hardware description – Abocom FVR206 User Manual
Page 3
- 2 -
Firewall VPN Router supporting protocols
The Firewall VPN Router supports all the TCP, UDP and ICMP protocols,
such as HTTP, TELNET, SMTP, POP3, FTP, DNS, PING, etc. System
Administrators can set up proprietary protocols according to operating
requirements.

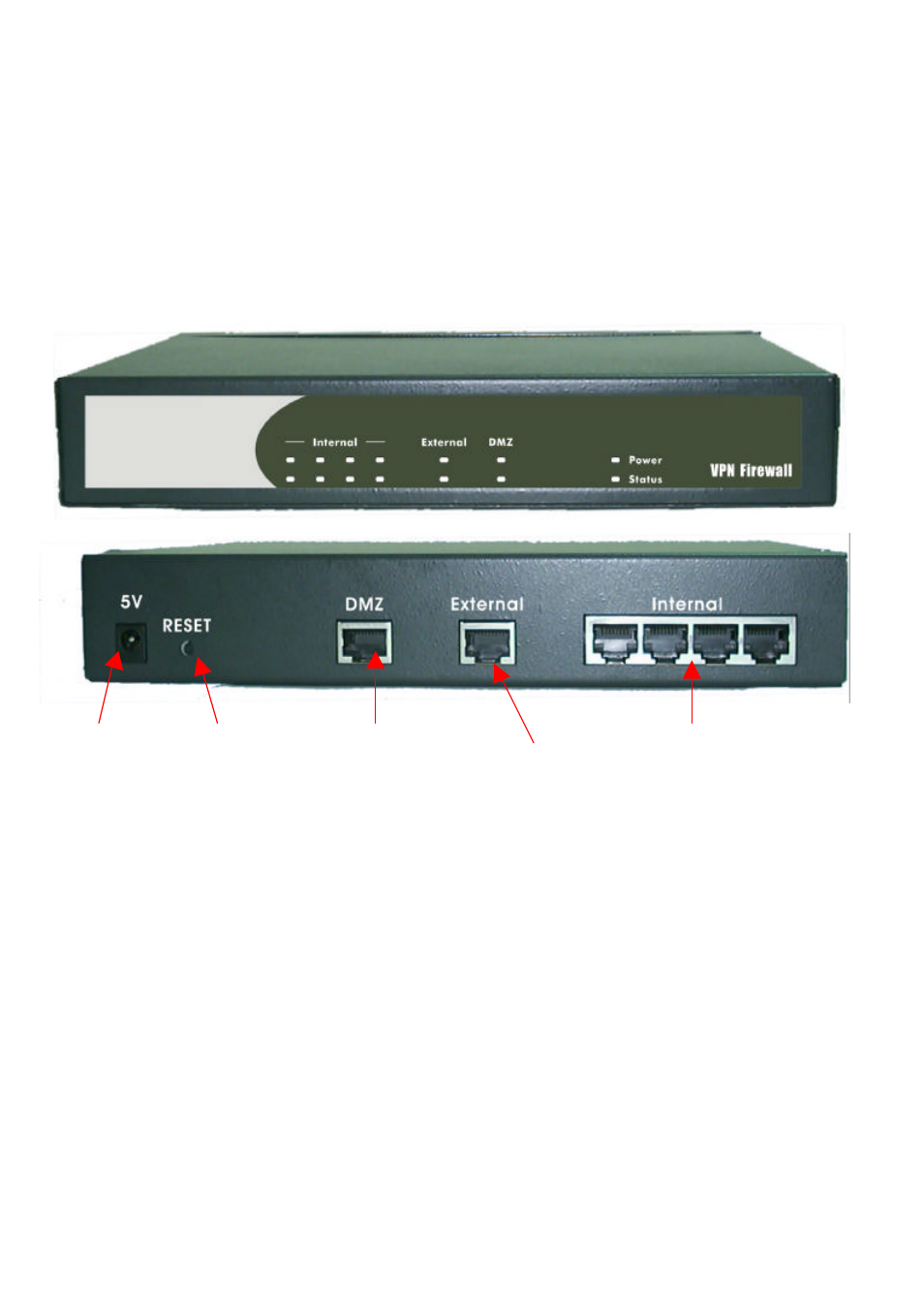

Hardware Description
DMZ Port: Use this port to connect to the company’s server(s), which
needs direct connection to the Internet (FTP, SNMP, HTTP, DNS).
External Port (WAN): Use this port to connect to the external router, DSL
modem, or Cable modem.
Internal Port (LAN): Use this port to connect to the internal network of the
office.
Reset: Reset the Firewall VPN Router to the original default settings.
DC Power: connect one end of the power supply to this port, the other
end to the electrical wall outlet.
DMZ Port
External Port
Internal Port
Reset
DC Power
