6
Attention: Disconnect the appliance from the mains if the
ceramic hob is cracked and call the AVANTI After Sales Service.
features
ᕡ

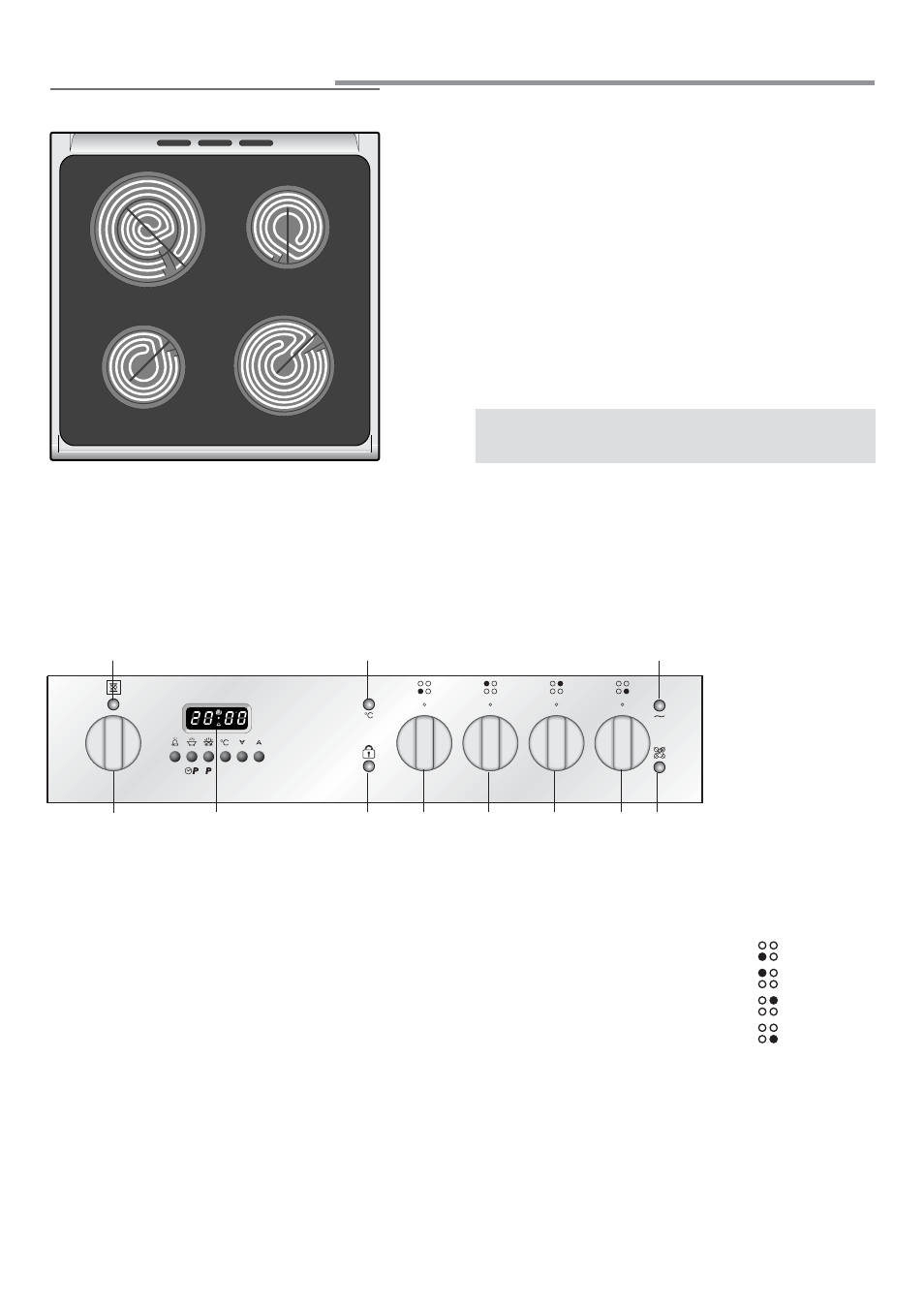

Fig. 1.1
VITROCERAMIC COOKING HOB
1. Cooking zone Ø 165 - 1200 W
2. Double cooking zone Ø 230-120 - 2100/700 W
3. Cooking zone Ø 165 - 1200 W
4. Cooking zone Ø 200 - 1700 W
A
U
T
O
11 12 15 6 7
13
Fig. 1.2
5
14 10
8 9
CONTROLS DESCRIPTION
Cooking hob controls:
5. Front left cooking zone (1) control knob
6. Rear left cooking zone (2) control knob
7. Rear right cooking zone (3) control knob
8. Front right cooking zone (4) control knob
9. Cooking zone residual heat indicators
10. Cooking zones power indicator light
Oven controls:
11. Function selector knob
12. Electronic programmer
13. Line pilot light
14. Temperature pilot light
15. Door locked pilot light
2 3
4
1
CONTROL PANEL
