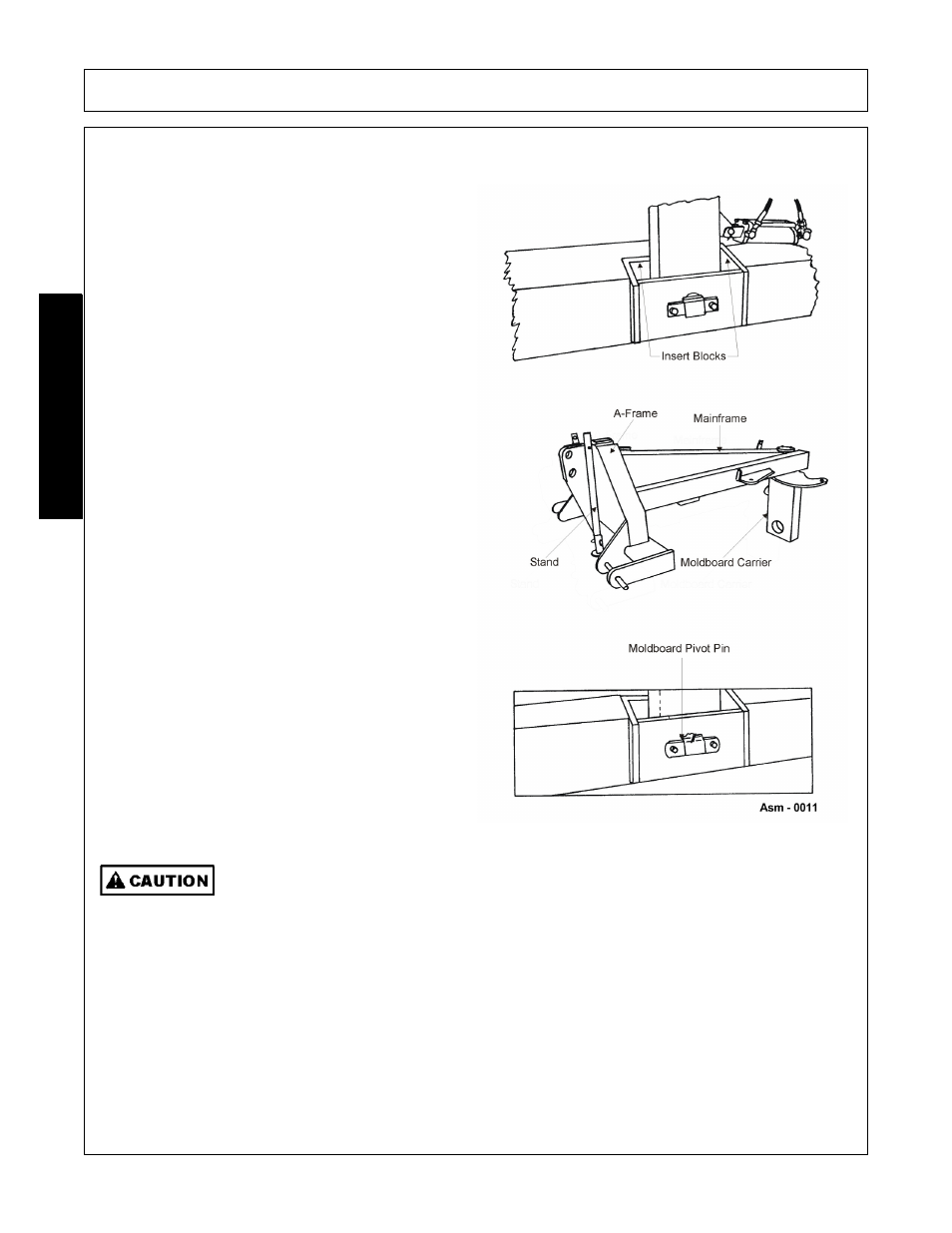

Assembly of Moldboard to Mainframe
The Rhino 2500 Blade is shipped in two bundles.
The Mainframe, A-Frame and Moldboard Carrier
are in one bundle; the Moldboard is in the second
bundle. The assembly of the Moldboard to the
Moldboard Carrier is made by inserting the
Moldboard Pivot Pin and securing with Bolts.
Until Hydraulic Cylinders are connected and under pressure of Manual Adjusting Links
installed, block Moldboard to Moldboard Carrier to prevent possible tilting and falling from
stand.
