Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
Install the product so the required distances shown in the figure are kept.
When using a stand or wall-mount, use parts provided by Samsung Electronics only.
If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.
If you use parts provided by another manufacturer, it may result in a problem with the product or fire due to an increase in the internal the internal
temperature of the product due to poor ventilation.
The appearance may differ depending on the product.
When installing the product with a stand

When installing the product with a wall-mount

N
-
-
N
10 cm
10 cm 10 cm
10 cm
10 cm 10 cm 10 cm
10 cm
10 cm 10 cm
10 cm
10 cm 10 cm 10 cm
English -
. Using the 5 screws for securing the stand base and the TV, firmly attach the TV to the stand
base.
Stand the product up and fasten the screws. If you fasten the screws with the PDP TV
placed down, it may lean to one side.
N
. When installing your TV on a wall, close the cover 1 on the stand-base connection using two
screws.
nstalling the Stand
Wa rning
Fi rmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury.

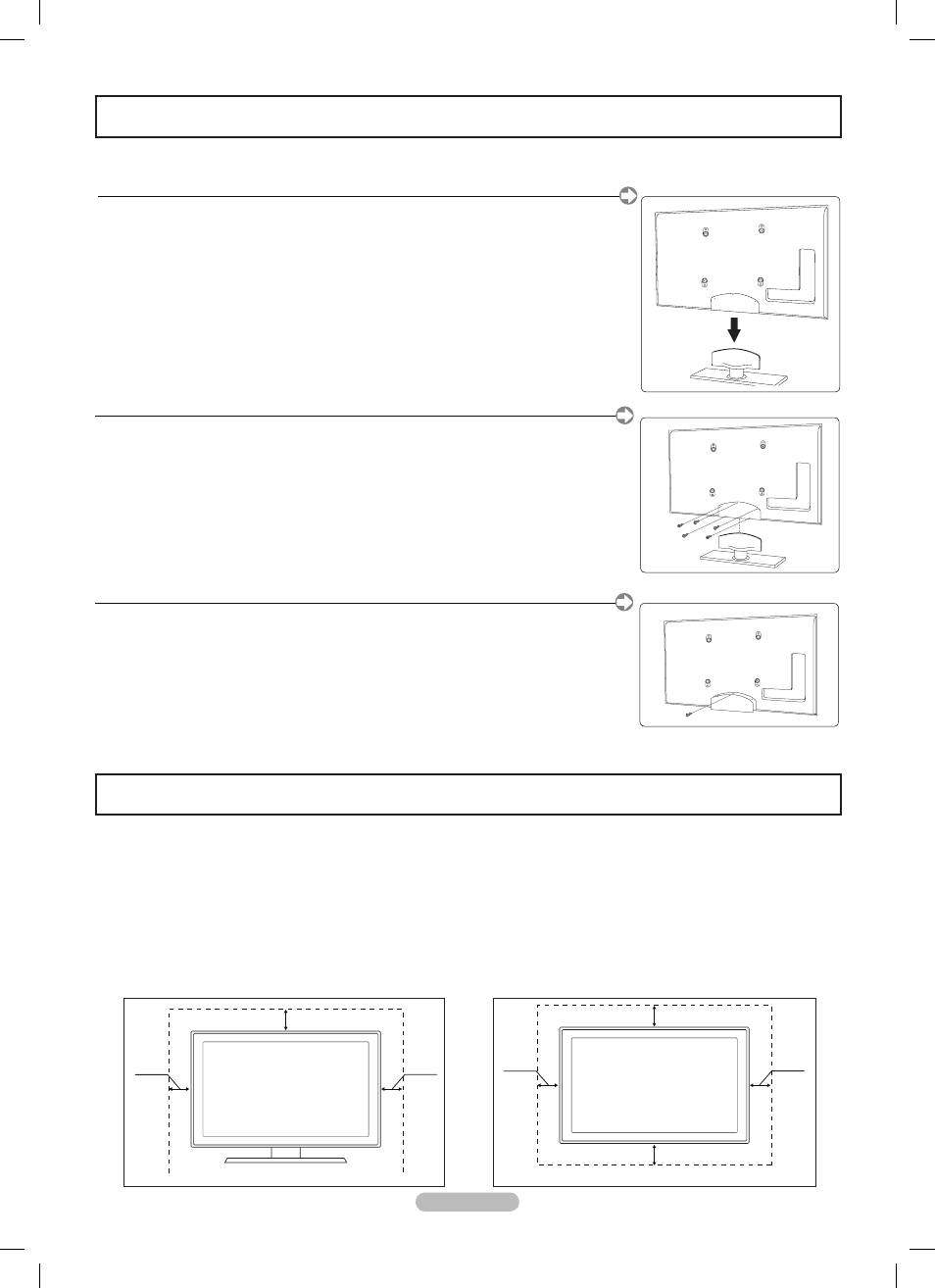

1. Attach your PDP TV to the stand.
Two or more people should carry the TV. Never lay the TV on the floor because of possible
damage to the screen. Always store the TV upright.
The product colour and shape may vary depending on the model.
N
N
Securing the nstallation Space
