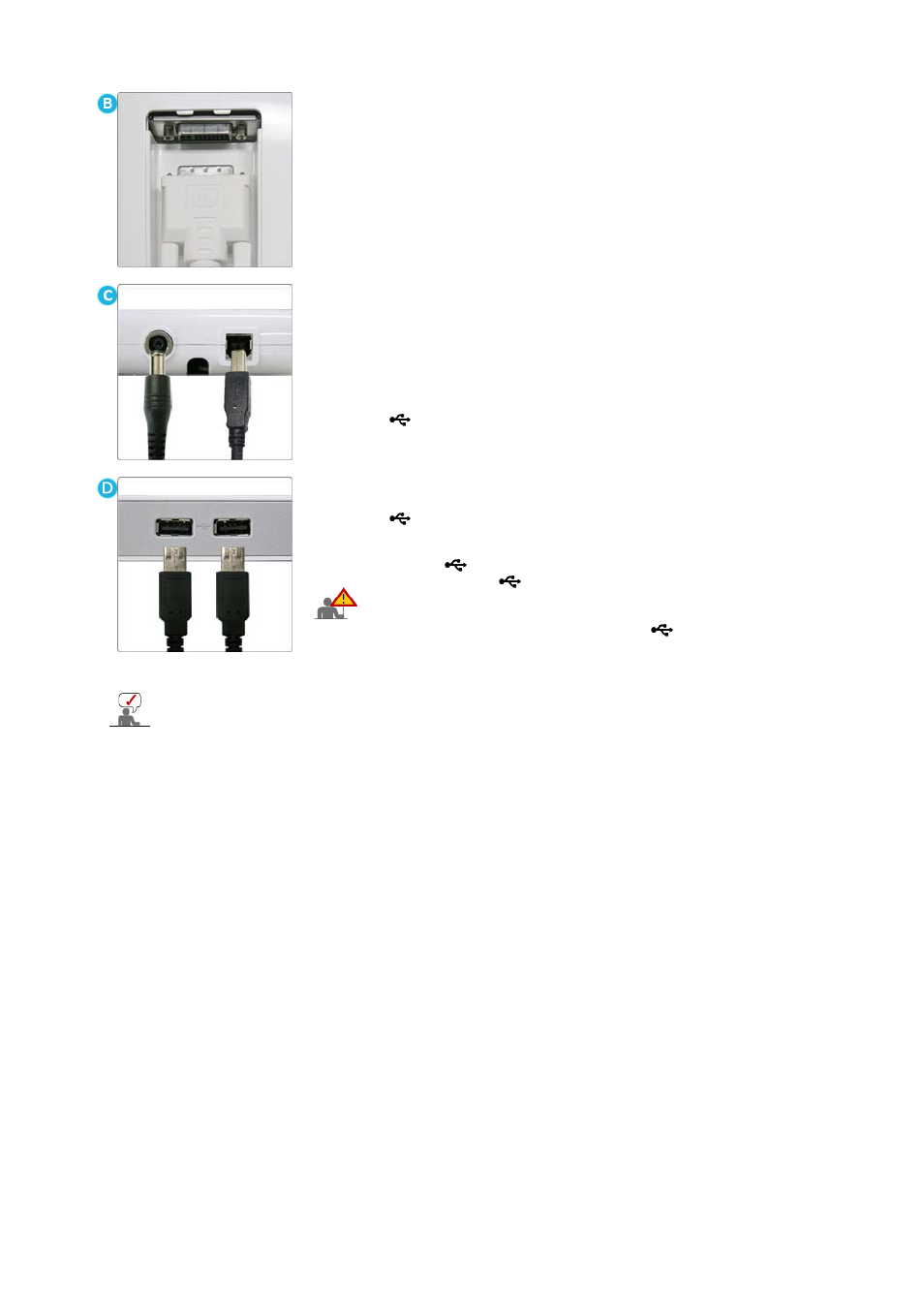

DVI :


Connect the DVI terminal of your monitor to your computer using a

DVI/D-Sub cable.


DC 12V :

Connect a power line to a direct current power supply and then plug
it into the relevant power port.



UP (USB upstream port):

Connect the

UP port of the monitor and the USB port of the

computer with the USB cable.


DOWN (USB downstream port):

Connect the

DOWN port of the USB monitor and a USB device

with the USB cable.

z

To use

DOWN (Downstream Port), you have

to connect the

UP (Upstream Cable ) to the

PC.

z

Make sure to use the USB cable supplied with
this monitor to connect the monitor's

UP port

and your computer's USB port.

See

Connecting the Monitor

for further information regarding cable connections.
