Samsung LS19UBPEBQ-XAA User Manual
Page 5
3_English
En
gl
is
h

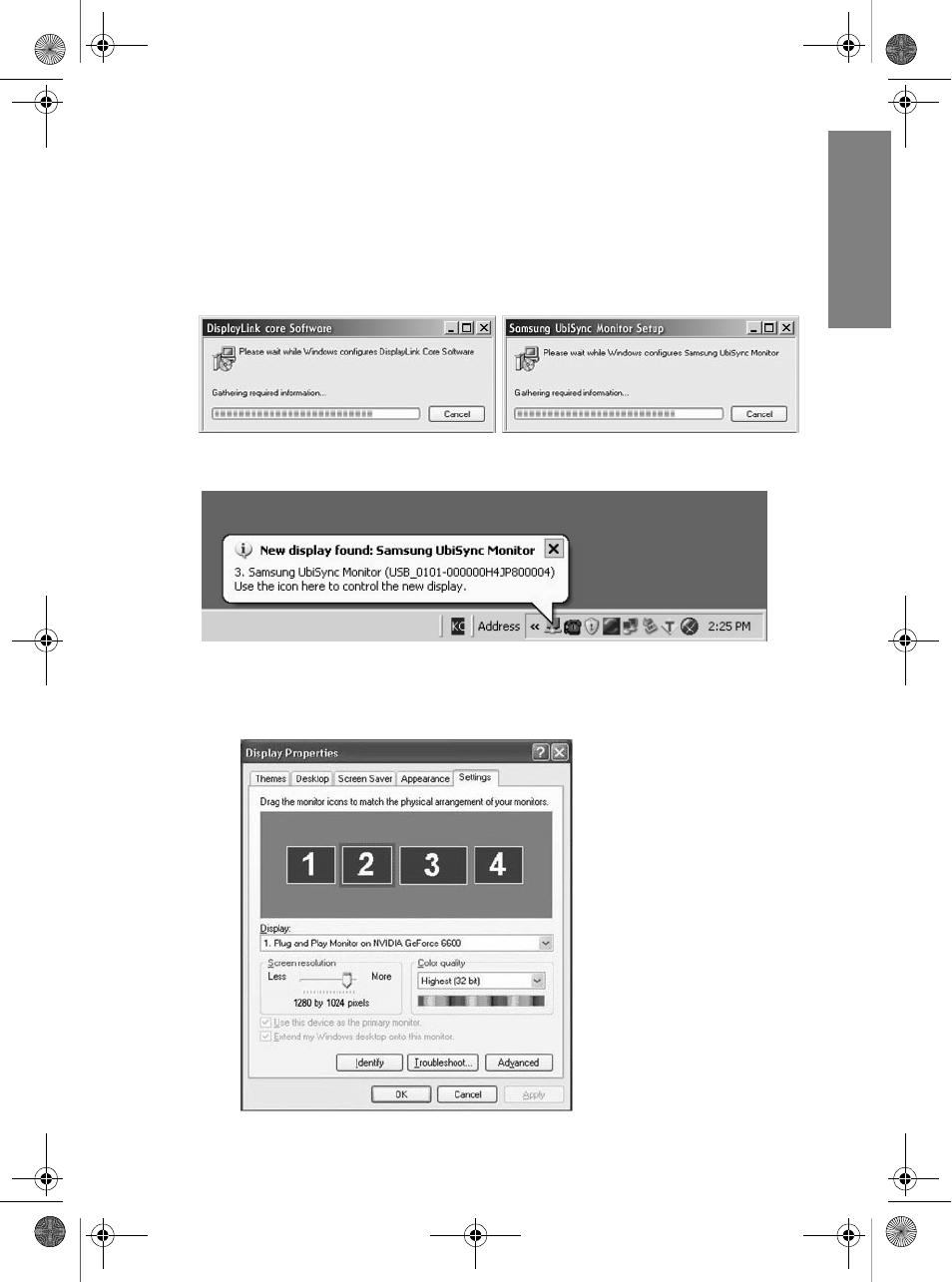

3. The installation is started automatically and the installation progress window is displayed, as
shown in the figure below.
•Manual Installation: If the USB driver is not installed automatically, insert the provided USB
Monitor Install CD into the CD-ROM drive of your PC. Double-click 'My Computer on the
Windows Desktop' and click on 'User Manual (I:)'. The volume name of the removable
storage disk (for example, E:, F:, G: ) may be different depending on your computer
environment.
Right-click it and select 'Open' from the displayed menu. Double-click the 'Setup' file and an
installation progress window is displayed, as shown in the figure below. The remaining steps
are the same as for the automatic installation.
4. When setup is finished, a monitor icon is created in the system tray at the bottom of the monitor
screen, and the information for the installed USB monitor is displayed.
5. When the installation is completed, configure the following settings to use multiple monitors.
5-1. Right-click on the ‘Windows Desktop’ and select ‘Properties’ from the displayed menu. The
“Display Properties” window appears.
5-2. Select the “Settings” tab. A list of connected USB monitors is displayed.
USB_Monitor_install_guide_906.fm Page 3 Wednesday, October 10, 2007 1:18 PM
