E-
6

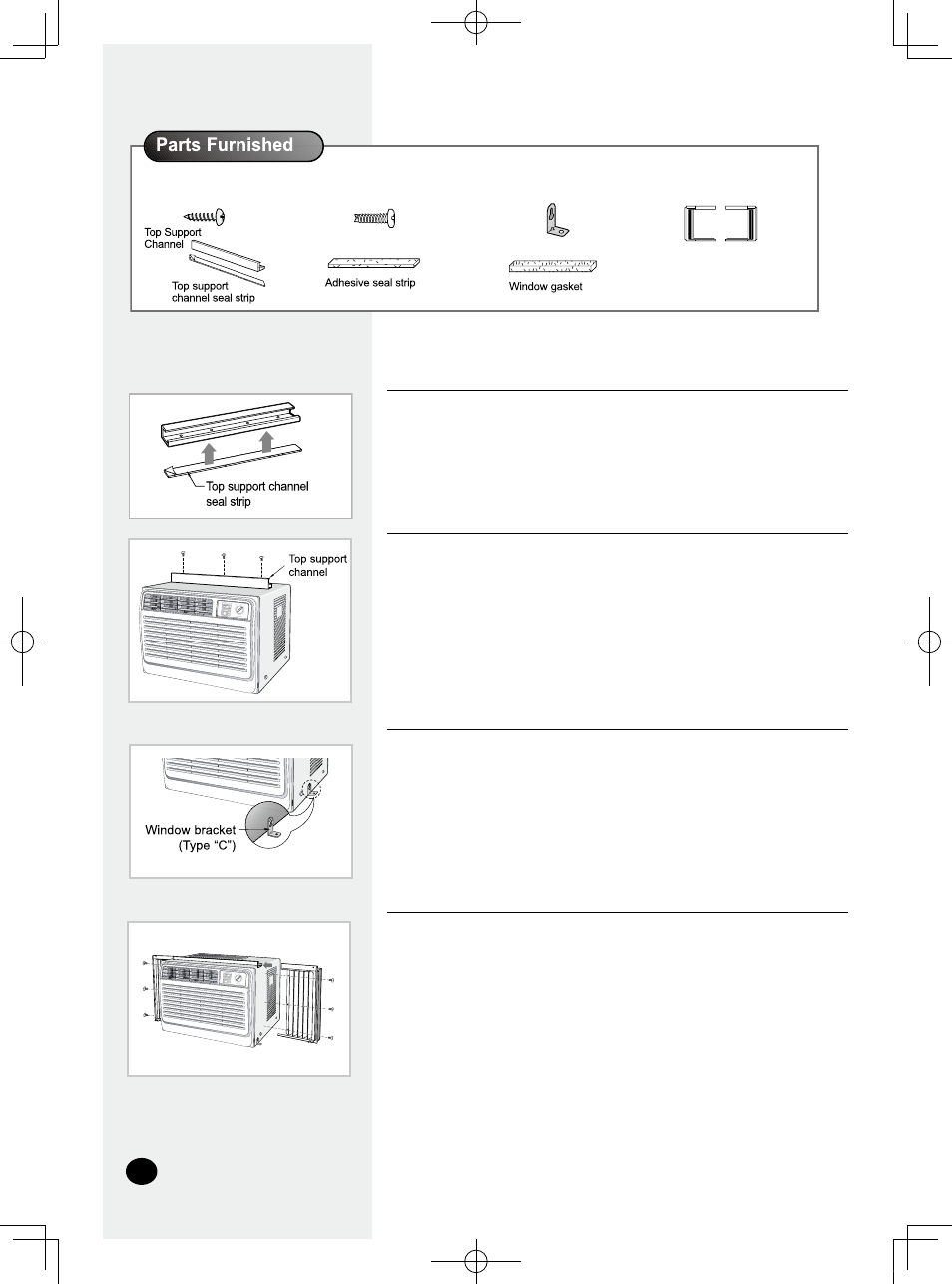

2 Install the top support channel with three Type B screws provided.
The screw holes are of larger gauge on the channel and smaller
on the cabinet. The top support channel is "L" shaped. The
high side of the channel must always face inwards.
3 Assemble the window brackets on the cabinet.
3-
Window filler panel Type C(Qty-2) Type B(Qty-9) Type A(Qty-6)
Remove the backing from the top support channel seal strip and attach it to
the bottom of the top support channel.
Loosen the lower screw slightly on each side of the cabinet and
install the Type C window bracket.
3- Tighten the screws securing the brackets.
4 Attach the window filler panels to the unit.
4- Slide the window filler panels and their frames into the channels on
the top and bottom of the cabinet.
4- Assemble the window filler panels to the cabinet using six Type B
screws.
2
3
4
1
