English - 8

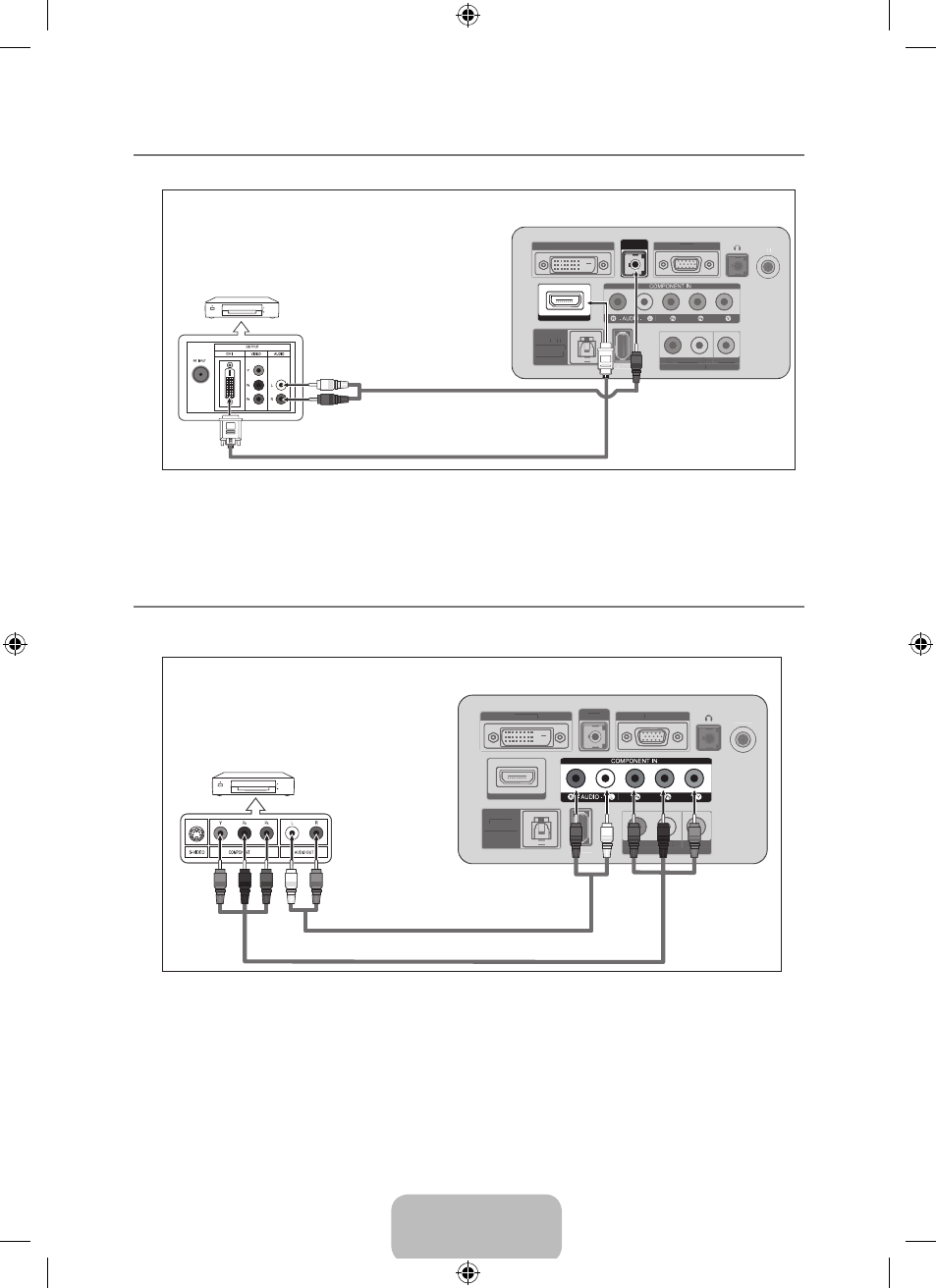

Connecting a DVD / Blu-Ray player / Satellite receiver (Set-Top Box) via DVI ¦
This connection can only be made if there is a DVI Output connector on the external device.
ANT IN
HDMI IN
SERVICE
HDMI/PC /DVI-D AUDIO IN
AV IN
- AUDIO - R L VIDEO
DVI-D IN PC IN
DIGITAL
AUDIO OUT
(OPTICAL)
ANT IN
SERVICE RR AV IN A A
- AUDIO - R L VIDEO
DVI-D IN PC IN
DIGITA TT L
AUDIO OUT
(OPTICAL)
1 DVI to HDMI Cable (Not supplied)
2 RCA to stereo Cable (Not supplied)
DVD / Blu-Ray player /
Satellite receiver
(Set-Top Box)
TV Rear Panel
Each DVD / Blu-Ray player / Satellite receiver (Set-Top Box) has a different back panel N
configuration.
When connecting a DVD / Blu-Ray player / Satellite receiver (Set-Top Box), match the N
color of the connection terminal to the cable.
Connecting a DVD / Blu-Ray player / Satellite receiver (Set-Top Box) via Component cables ¦
The rear panel jacks on your TV make it easy to connect a DVD / Blu-Ray player / Satellite receiver
(Set-Top Box) to your TV.
ANT IN
HDMI IN
SERVICE
HDMI/PC
/DVI-D AUDIO IN
AV IN
- AUDIO - R L VIDEO
DVI-D IN PC IN
DIGITAL
AUDIO OUT
(OPTICAL)
ANT IN
HDMI IN
SERVICE
HDMI/PC
/DVI-D AUDIO IN
AV IN
- AUDIO - R L VIDEO
DVI-D IN PC IN
DIGITAL
AUDIO OUT
(OPTICAL)
TV Rear Panel
2 Audio Cable (Not supplied)
1 Component Cable (Not supplied)
DVD / Blu-Ray player /
Satellite receiver
(Set-Top Box)
Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) N
for enhanced video quality. Be sure to match the component video and audio connections. For
example, if connecting a Component video cable to COMPONENT IN , connect the audio cable
to COMPONENT IN also.
Each DVD / Blu-Ray player / Satellite receiver (Set-Top Box) has a different back panel N
configuration.
When connecting a DVD / Blu-Ray player / Satellite receiver (Set-Top Box), match the N
color of the connection terminal to the cable.
