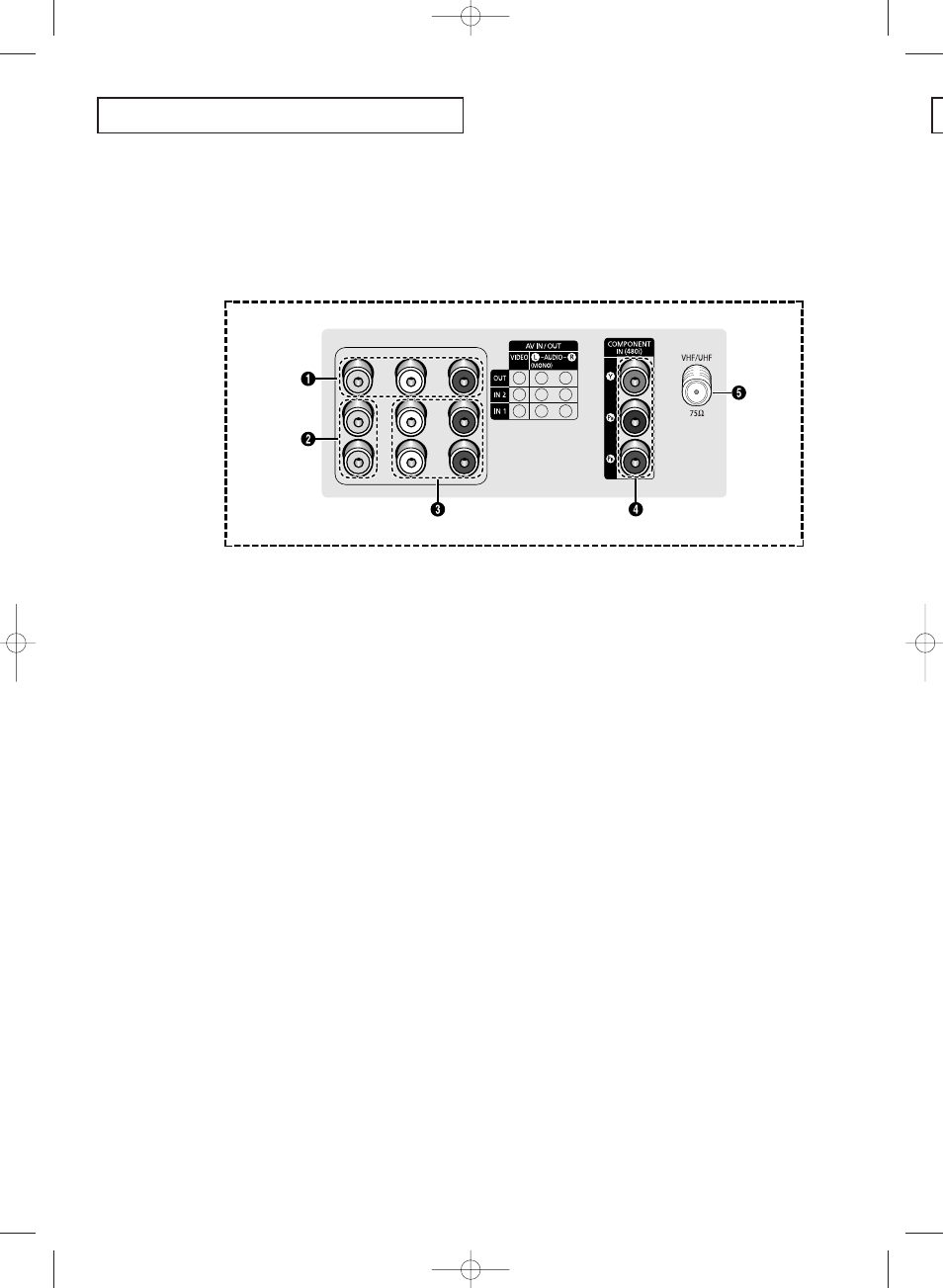

Connection Jacks (Rear)
Use the rear panel jacks to connect an A/V component that will be connected
continuously, such as a VCR or a DVD player.
For more information on connecting equipment, see pages 11~17.
1 Audio-Video Output jacks
Connect to the audio/video input jacks of a
recording VCR.
2 Video Input jacks
Connect to the video output jacks of VCRs, DVD
players and similar devices.
3 Audio Input jacks
Connect to the audio output jacks of VCRs, DVD
players and similar devices.
When using the S-Video or Component Video
input, connect audio jacks to “AV IN 2 (AUDIO-
L/R)”.
4 Component Video Input
jacks (Y, P B , P R )
Connect to the Component audio and video
outputs of a DVD or DTV set-top box. 480i video
signal input is available.
5 VHF/UHF
Connect to an antenna or to a cable TV system.
• Please be sure to match the color coded input terminals and cable jacks.
